SPECIFICATION

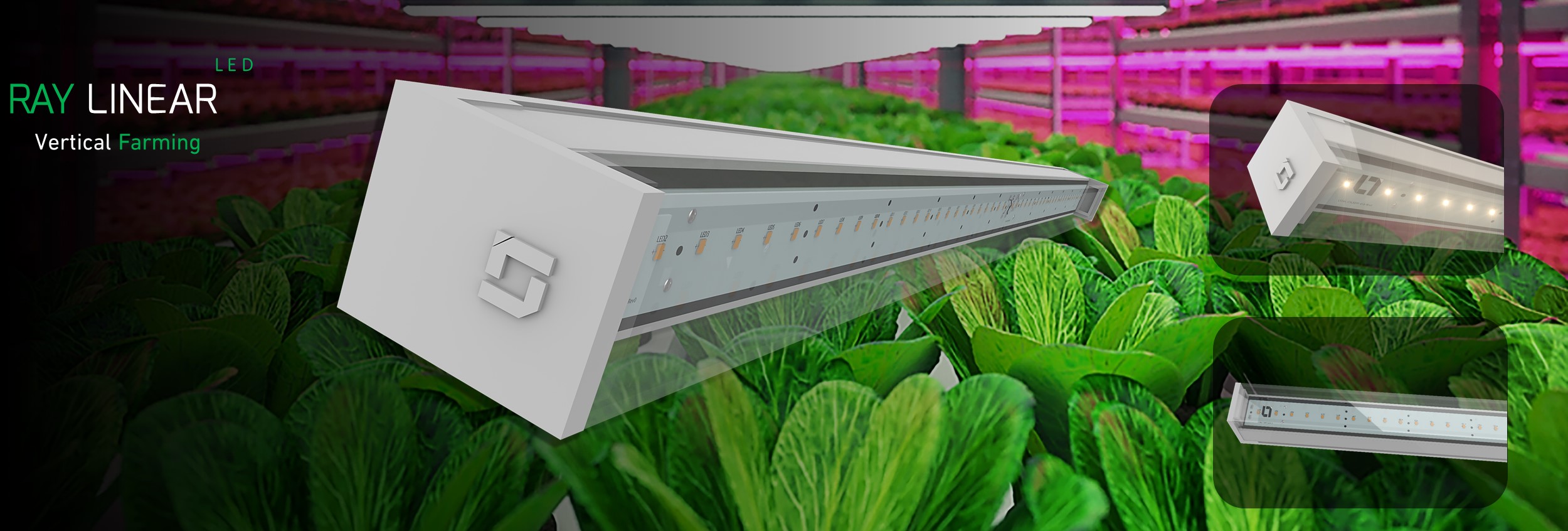

» Solution for Vertical farming Horticulture application
» Extruded aluminium alloy housing for better thermal management
» High Light Transmittance, extruded PC clear diffuser for optimum light transmittance
» Corrosion resistance with special powder coated using Nano Technology
» The luminaire emits light in PAR range from 400nm - 700nm which drivers photosynthesis in plants
» Comes with Full Spectrum White light
» Integrated Power supply- 240V AC input 2.5KV SURGE Immunity & all necessary safety protections
» Photosynthesis photon flux (PPF) - ~27 μmol/s
» Photo- synthetically Active Radiation (PAR) ~6W

ORDERING DETAILS

SURFACE MOUNT 240V AC INPUT WHITE PC

Ordering Code Power (W) INPUT LINE CURRENT
RAY LINEA SURFACE MOUNT 20W FULL SPECTRUM WHITE LED LINEAR HORTICULTURE LIGHT 20W 240V AC 0.09A
