KROON PT
POLE MOUNT LUMINARIE
KROON PT is an patented system of reflected light optical modules, which ensures exceptional visual comfort with unique design.
Colors:
Wattage:
CCT:
Application Areas
Office: Outdoor:- Path ways, walk overs, Garden lighting etc..

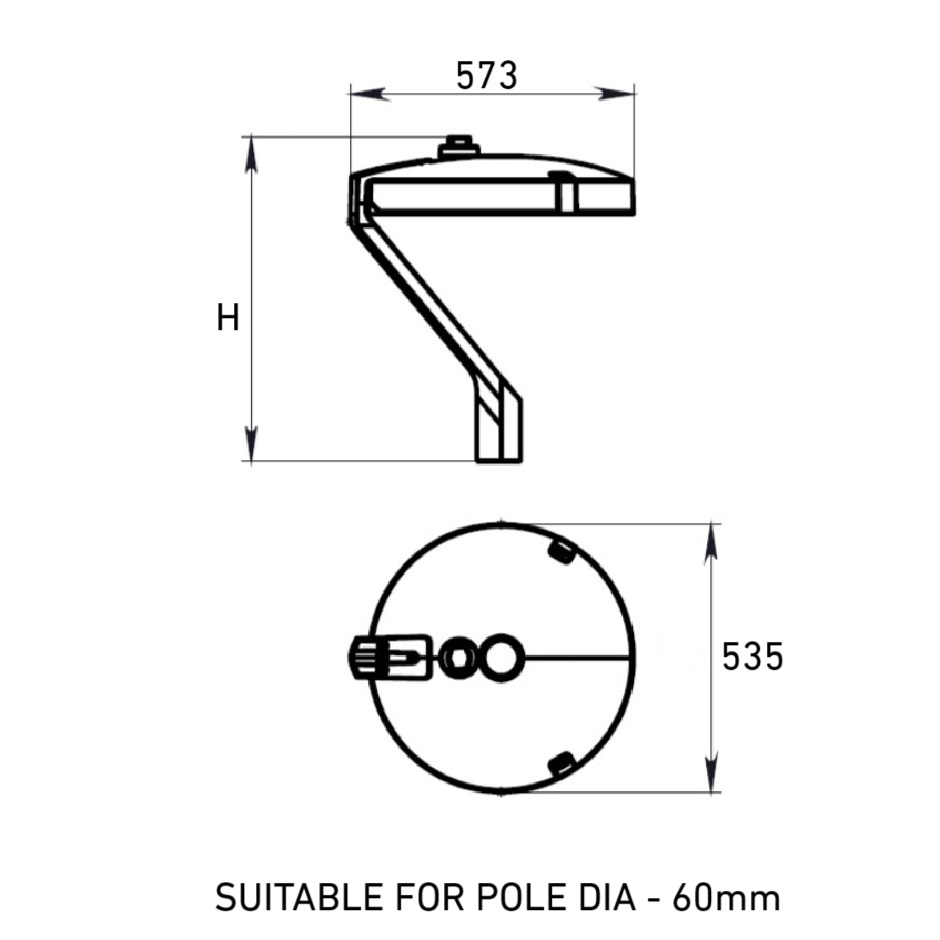

Product Configuration / Application Images
In case of additional questions - please ask below:
Our lighting designers and sales engineers are ready to support your project specifications.
Due to the constant renewal of our model range and improving technical characteristics the technical information can slightly differ from the latest version. To receive the most up-to-date technical information for project development please refer to your LT Company manager.
Technical Specifications
Technical Data
| Lumen maintenance | L70 @ 50K Hours |
| Electrical Insulation Class | Class 1 |
| IP Rating | IP65 |
| Driver Placement | Integral |
| Driver Type | Constant Current |
| Rated I/P Voltage | 220V- 240 VAC |
| Rated I/P Current | 0.14A@30W |
| Surge Rating | 20KV with SPD |
| THD | <10% |
| IK Rating | IK 08 |
| Input Voltage Range | 140V - 275 V |
| Operating Ambient Temp | 0 to 50 Degree C |
| MacAdam Value | <5 SDCM |
Features
- PDC aluminum alloy housing system ensuring optimum thermal management
- Corrosion resistance Powder coated finish using Nano Technology.
- High efficiency driver with necessary safety protections.
Application Areas
Outdoor:- Path ways, walk overs, Garden lighting etc..
