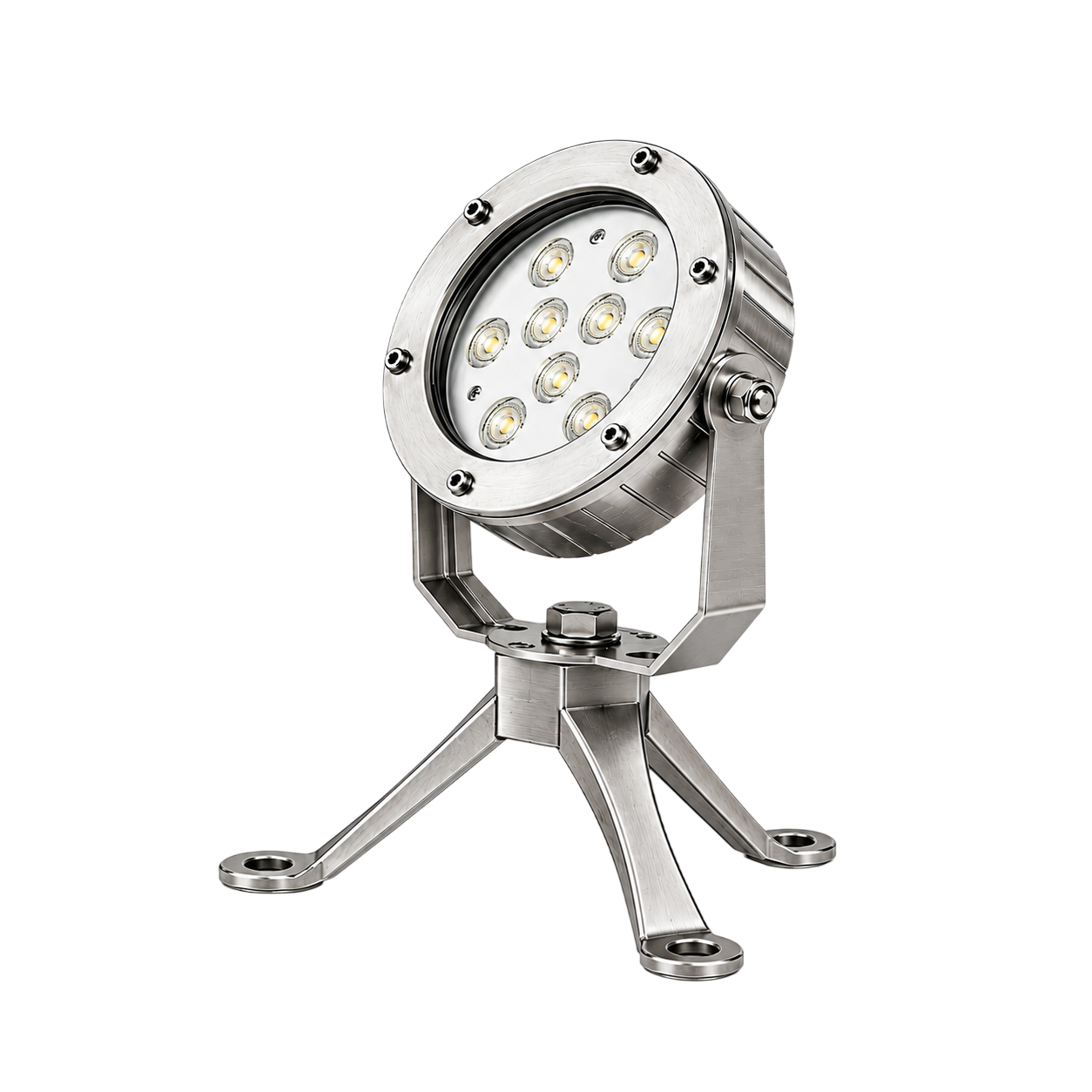

AQUA S 153
UNDER WATER RECESS LUMINAIRE
The AQUA Surface is suitable for underwater spotlight for fountains, pools, ponds, water gardens etc. for underwater lighting..
Colors:
Wattage:
CCT:
Application Areas
Office: The AQUA Surface is suitable for underwater spotlight for fountains, pools, ponds, water gardens etc. for underwater lighting.
Product Configuration / Application Images
In case of additional questions - please ask below:
Our lighting designers and sales engineers are ready to support your project specifications.
Due to the constant renewal of our model range and improving technical characteristics the technical information can slightly differ from the latest version. To receive the most up-to-date technical information for project development please refer to your LT Company manager.
Technical Specifications
Technical Data
| Lumen maintenance | L70 @ 50K Hours |
| Photo biological Safety | RG0 |
| Electrical Insulation Class | Class 1 |
| IP Rating | IP68 |
| Rated I/P Voltage | 24VDC |
| Rated I/P Current | 0.5A@12W |
| IK Rating | IK 09 |
| Operating Ambient Temp | 0 to 50 Degree C |
| MacAdam Value | 5 SDCM |
| Power Options (Wattage) | 12W (40 LPW @ 5700K) |

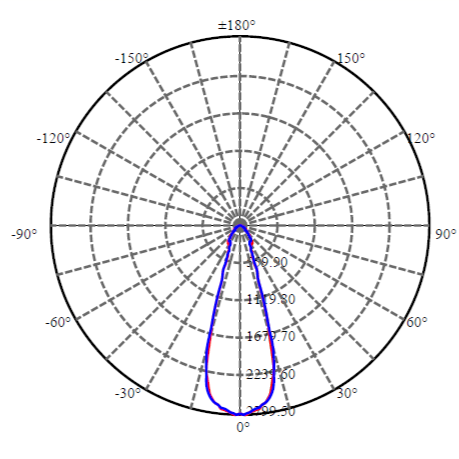

| Optics Beam Angle | 10° / 30° / 60° |
Features
- Stainless steel (SS316) corrosion resistance housing system
- An IP68 housing allows for underwater use.
- Toughened glass clear cover for good impact resistance
- Encapsulated high efficiency driver with necessary safety protections.
Application Areas
The AQUA Surface is suitable for underwater spotlight for fountains, pools, ponds, water gardens etc. for underwater lighting.
