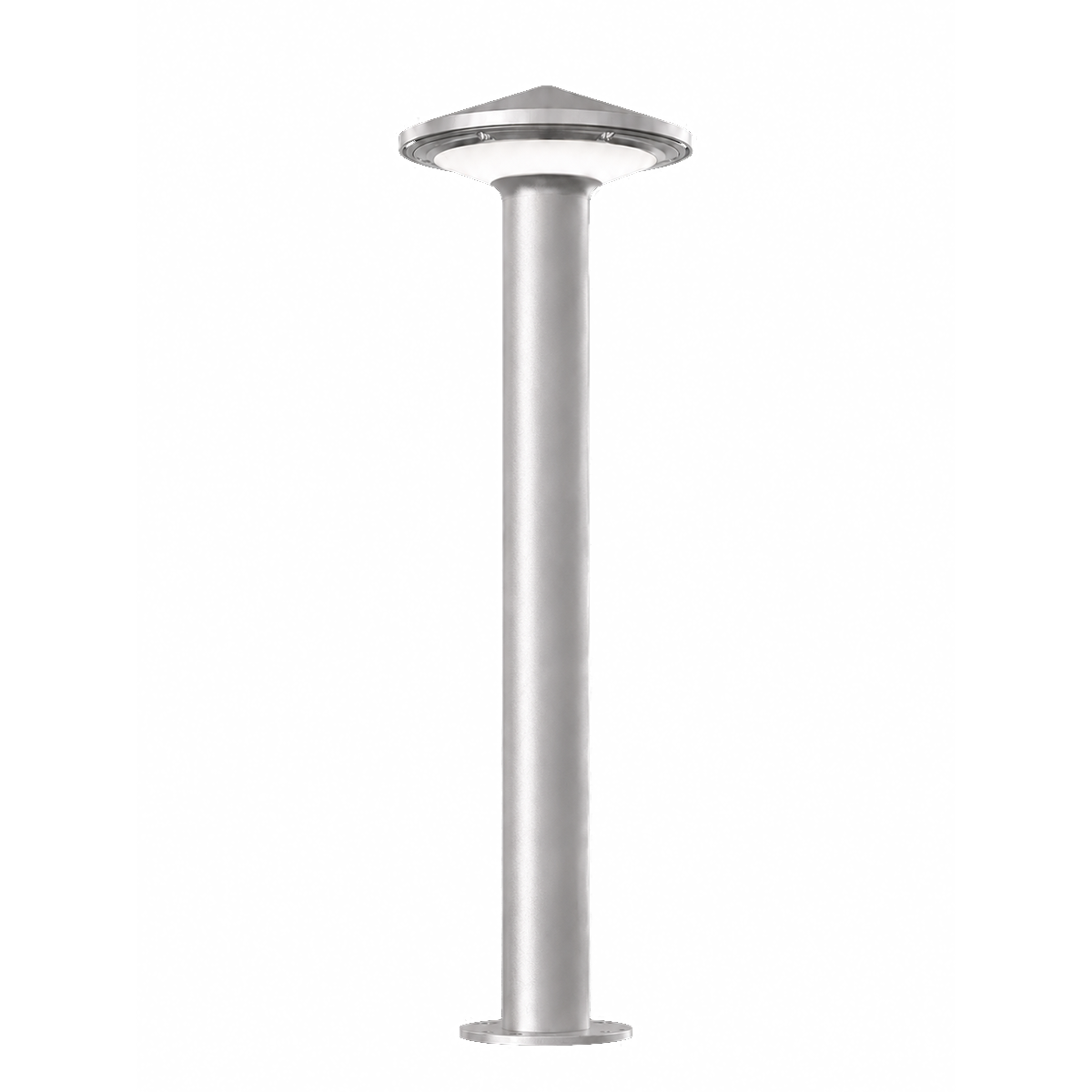

PRIMUS R BOLLARD

POLE MOUNT LUMINARIE

PRIMUS R BOLLARD IS AN OUTDOOR ARCHITECTURAL LANSCAPE LUMINARIE WITH UNIQUE SLEEK DESIGN,GLARE FREE DIFFUSED OPTICS AND 100% DOWNWARDS LIGHT OUTPUT RATIO WHICH IS BEST SUITED FOR OPEN AREA ILLUMINATION.

Colors:

Wattage:

CCT:

Application Areas

Office: Outdoor:- Path ways, walk overs etc..

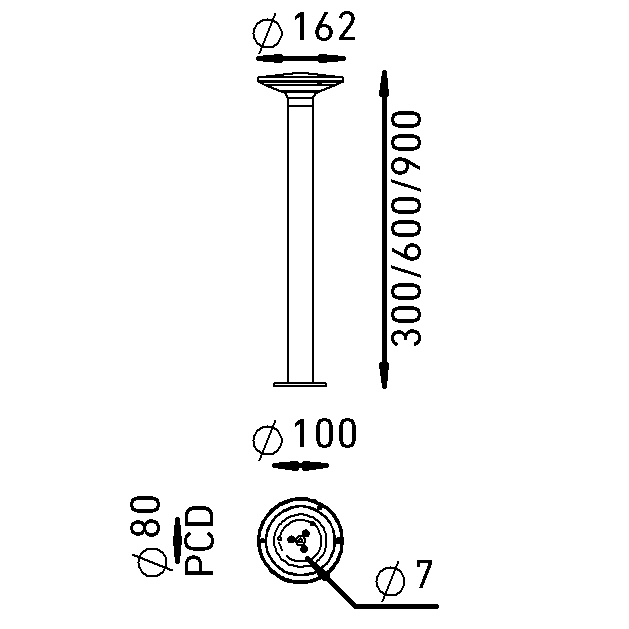

Product Configuration / Application Images

In case of additional questions - please ask below:

Our lighting designers and sales engineers are ready to support your project specifications.

Due to the constant renewal of our model range and improving technical characteristics the technical information can slightly differ from the latest version. To receive the most up-to-date technical information for project development please refer to your LT Company manager.

Technical Specifications

Technical Data

Lumen maintenance	L70 @ 50K Hours
Electrical Insulation Class	Class 1
IP Rating	IP66
Driver Placement	Integral
Driver Type	Constant Current
Rated I/P Voltage	220V- 240 Vac
Rated I/P Current	0.04A@10W
PF	>0.95
IK Rating	IK 08
Input Voltage Range	140V - 275 V
Operating Ambient Temp	0 to 50 Degree C
Product Weight	1.3 Kg
MacAdam Value	<5 SDCM

Features

PDC aluminum alloy housing to ensure optimum thermal management
UV stabilized injection molded polycarbonate (PC) diffuser for soft and even light distribution
Corrosion resistance Powder coated using Nano Technology.
High efficiency driver with necessary safety protections.
100% DLOR output with 360 Deg distribution.
