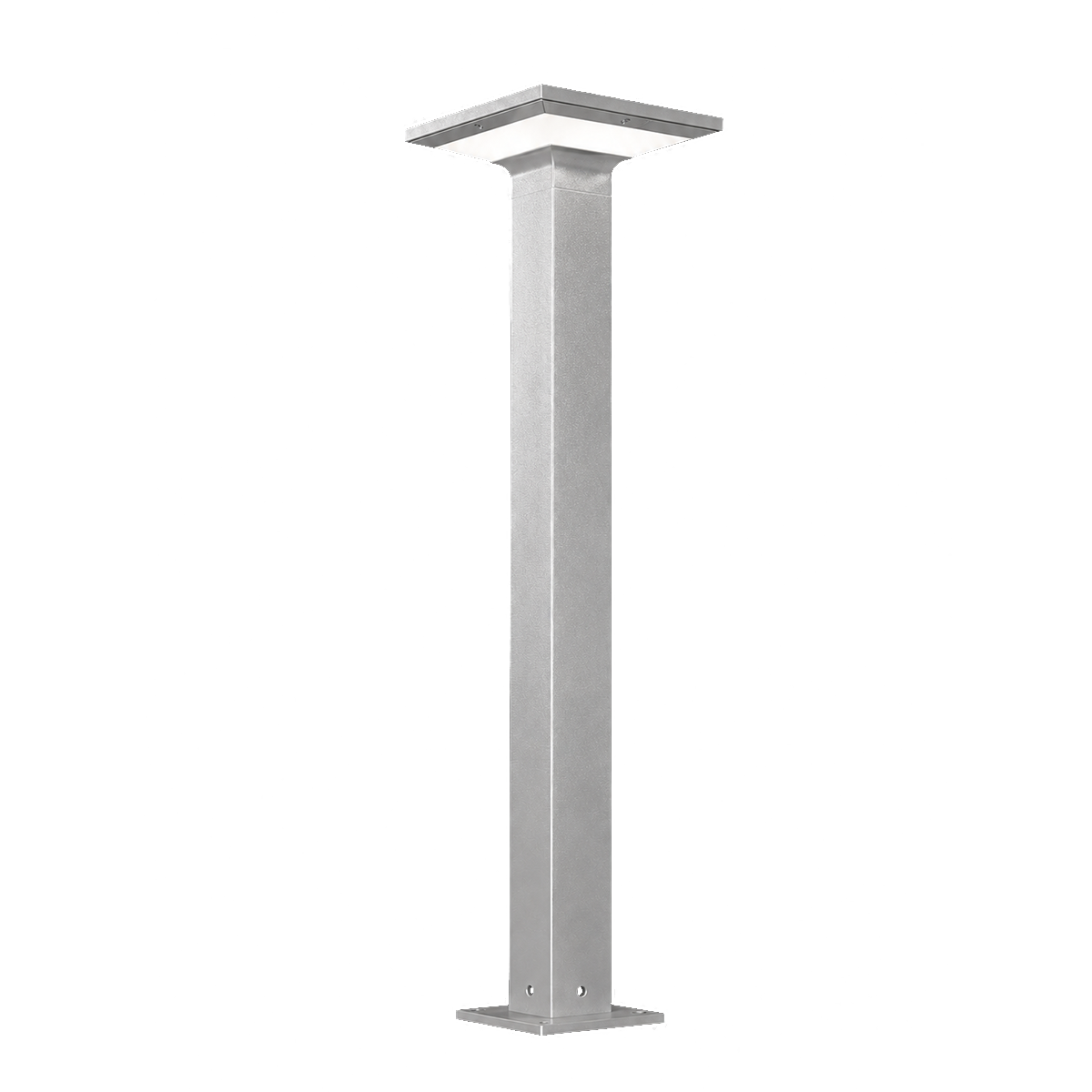

PRIMUS S BOLLARD
POST TOP MOUNT
PRIMUS S BOLLARD IS AN OUTDOOR ARCHITECTURAL LANSCAPE LUMINARIE WITH UNIQUE SLEEK DESIGN,GLARE FREE DIFFUSED OPTICS AND 100% DOWNWARDS LIGHT OUTPUT RATIO WHICH IS BEST SUITED FOR OPEN AREA ILLUMINATION.
Colors:
Wattage:
CCT:
Application Areas
Office: Outdoor:- Path ways, walk ways, Garden lighting etc..

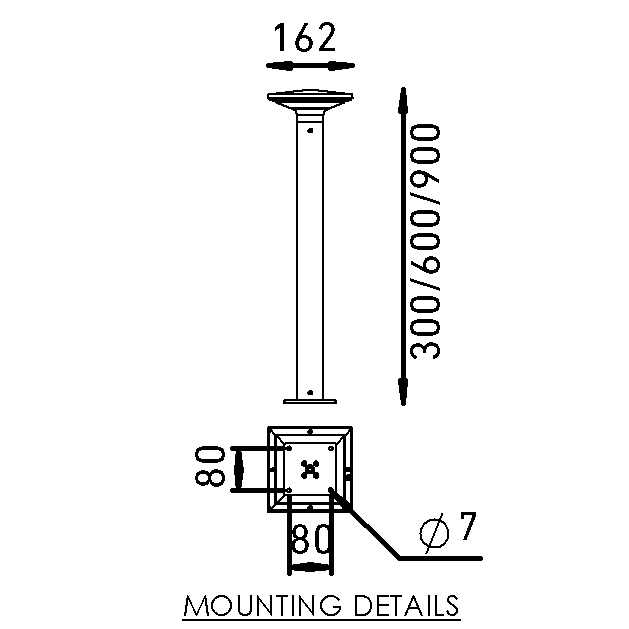

Product Configuration / Application Images
In case of additional questions - please ask below:
Our lighting designers and sales engineers are ready to support your project specifications.
Due to the constant renewal of our model range and improving technical characteristics the technical information can slightly differ from the latest version. To receive the most up-to-date technical information for project development please refer to your LT Company manager.
Technical Specifications
Technical Data
| Lumen maintenance | L70 @ 50K Hours |
| Electrical Insulation Class | Class 1 |
| IP Rating | IP66 |
| Driver Placement | Integral |
| Driver Type | Constant Current |
| Rated I/P Voltage | 220V- 240 VAC |
| Rated I/P Current | 0.04A@10W |
| Surge Rating | 20KV with SPD |
| THD | <10% |
| IK Rating | IK 08 |
| Input Voltage Range | 140V - 275 V |
| Operating Ambient Temp | 0 to 50 Degree C |
| Product Weight | 1.3Kg |
| MacAdam Value | <5 SDCM |
Features
- PDC aluminum alloy housing to ensure optimum thermal management
- UV stabilized injection molded polycarbonate (PC) diffuser for soft and even light distribution
- Corrosion resistance Powder coated using Nano Technology.
- High efficiency driver with necessary safety protections with 20KV external SPD.
- 100% DLOR output with 360 Deg distribution.
Application Areas
Outdoor:- Path ways, walk ways, Garden lighting etc..
