REVOLVE MIN

Way of New Lighting

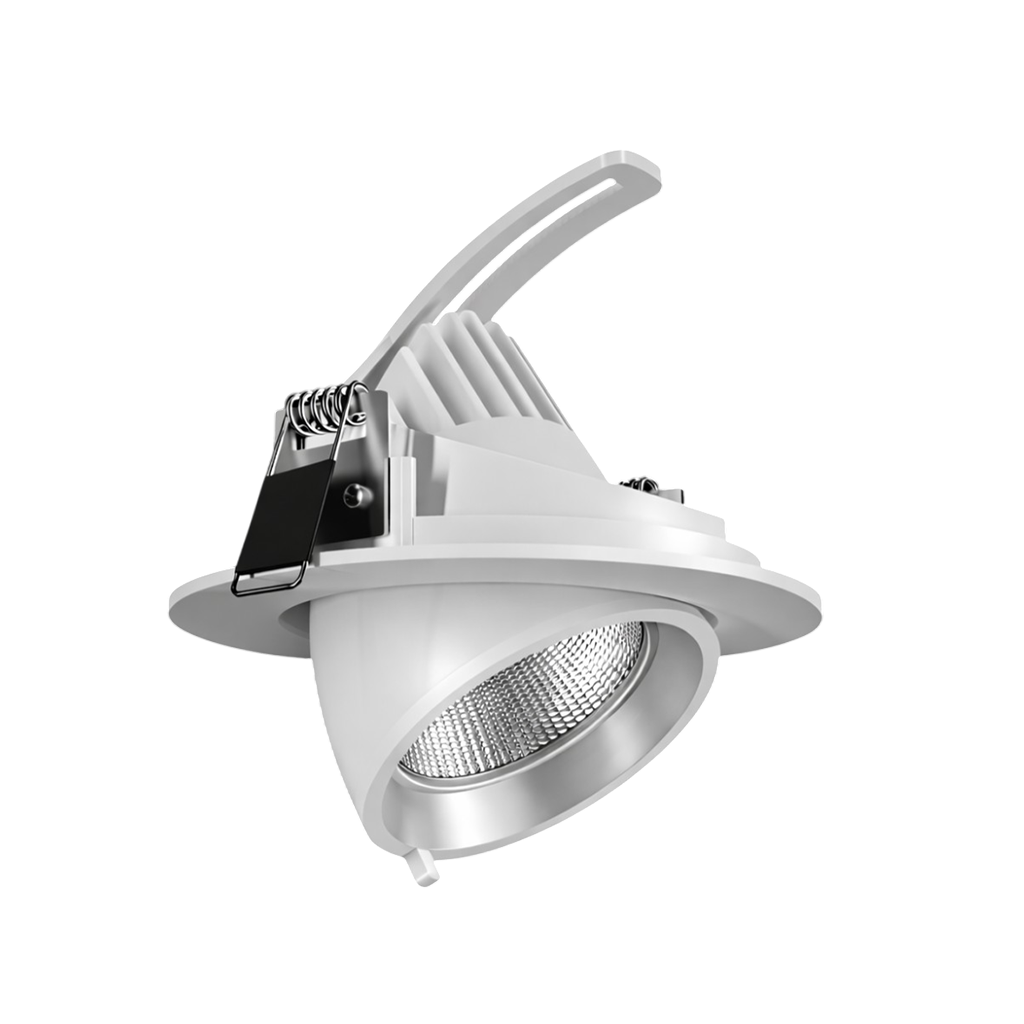

Revolve is a circular LED focus light suitable for recess mount application with Tilting and retractable possibilities for uniform wall washing or directional lighting.

Colors:

Wattage:

CCT:

Application Areas

Office: Malls, Retail Shops, Offices, Lobbies , corridors etc..,

Product Configuration / Application Images

In case of additional questions - please ask below:

Our lighting designers and sales engineers are ready to support your project specifications.

Due to the constant renewal of our model range and improving technical characteristics the technical information can slightly differ from the latest version. To receive the most up-to-date technical information for project development please refer to your LT Company manager.

Technical Specifications

Technical Data

Lumen maintenance	L70 @ 50K Hours
Photo biological Safety	RG0
Electrical Insulation Class	Class 1
IP Rating	IP20
Surge Rating	6 KVA With SPD
Optics Beam Angle	24 (+/-) 5 Degree
Driver Placement	Non Integral
Driver Type	Constant Current
Rated I/P Current	0.03A@7 W
PF	>0.95
THD	<10%
IK Rating	IK 02
Operating ambient Temp	0 to 35 Degree C
Input Voltage Range	140V - 270V

Features

Pressure Die cast Aluminum housing for optimal thermal conductivity.
Anodized aluminum deep recessed reflector for glare free light.
Corrosion resistance Powder coated finish using Nano Technology.
High efficiency driver with necessary safety protection along with external 6KV SPD
