DARKLIT SURFACE
Illuminating Life Intelligently

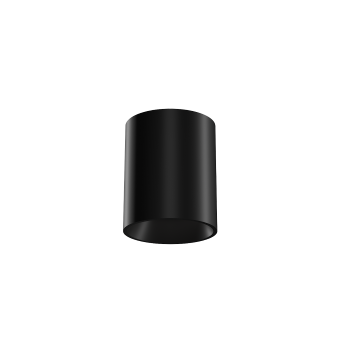

DARKLIT is a surface mounted downlight which comes with a unique lens optics to allow precise lighting effect.
Colors:
Wattage:
CCT:
Application Areas
Office: Office:Malls, Retail Shops, Offices, Lobbies , corridors etc..,

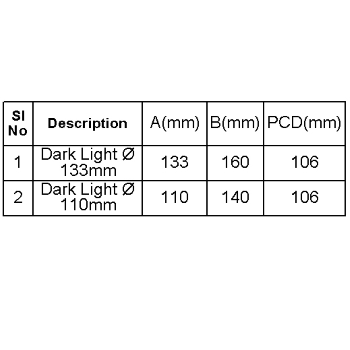

Product Configuration / Application Images
In case of additional questions - please ask below:
Our lighting designers and sales engineers are ready to support your project specifications.
Due to the constant renewal of our model range and improving technical characteristics the technical information can slightly differ from the latest version. To receive the most up-to-date technical information for project development please refer to your LT Company manager.
Technical Specifications
Technical Data
| Lumen maintenance | L70 @ 50K Hours |
| Photo biological Safety | RG0 |
| Electrical Insulation Class | Class 1 |
| IP Rating | IP20 |

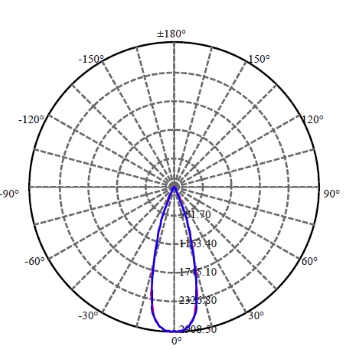

| Optics Beam Angle | 15/24/40/60 (+/-) 5 Degree |
| Driver Placement | Integral |
| Driver Type | Constant Current |
| Rated I/P Voltage | 220V - 240 VAC |
| Rated I/P Current | 0.13A @ 30W |
| PF | >0.90 |
| THD | <10% @ rated voltage |
| IK Rating | IK 02 |
| Operating ambient Temp | 0 to 35 Degree C |
| Surge Rating | 6 KV SPD |
| Wattage | 10W - 30W |
Features
- Anodized aluminum deep recessed reflector for glare free light.
- Corrosion resistance Powder coated finish using Nano Technology.
- Housing made of pressure die cast aluminum with extended heat sink for optimal thermal conductivity.
- Deep recessed optics made of TIR lens technology.
- High efficiency driver with necessary safety protections along with 6KV SPD.
Application Areas
Office:Malls, Retail Shops, Offices, Lobbies , corridors etc..,
