SPOT
Way of New Lighting

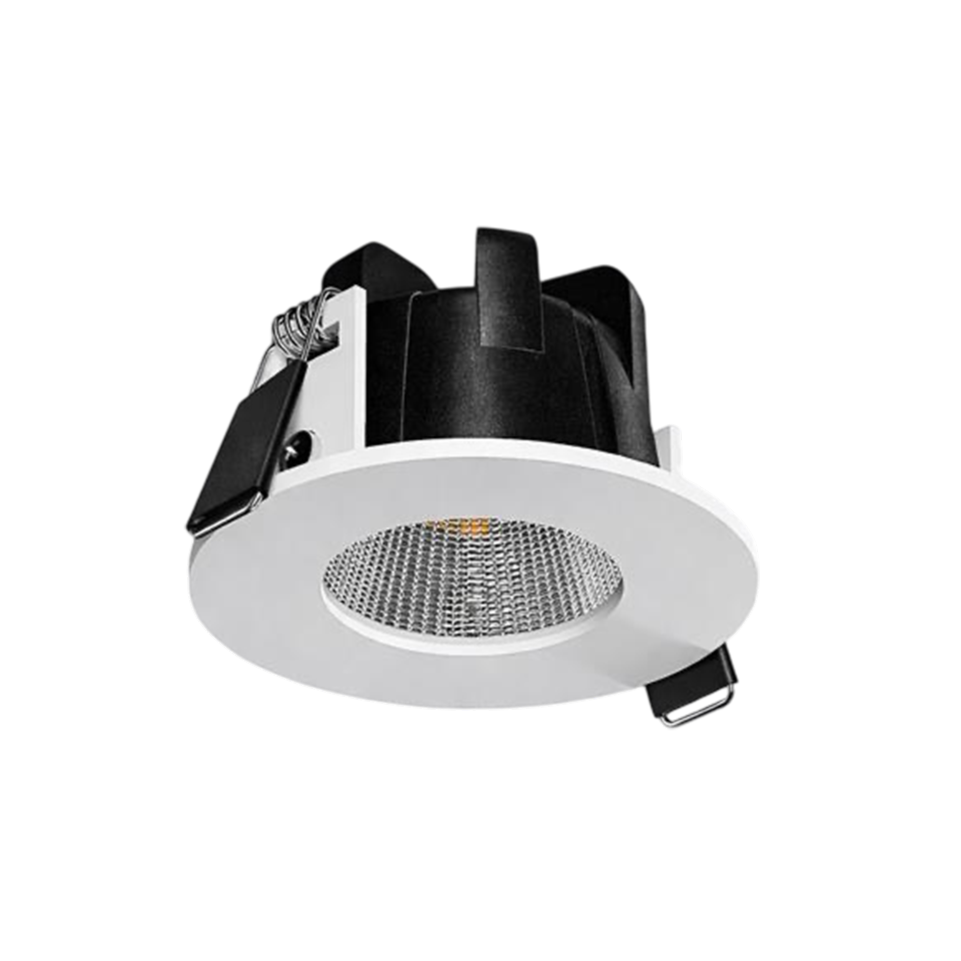

A recessed precise downlight, which elegantly blends in to the ceiling creating a calm, uniform & balanced light effect for maximum visual comfort.
Colors:
Wattage:
CCT:
Application Areas
Office: Malls, Retail Shops, Offices, Lobbies, Corridors etc.
Product Configuration / Application Images
In case of additional questions - please ask below:
Our lighting designers and sales engineers are ready to support your project specifications.
Due to the constant renewal of our model range and improving technical characteristics the technical information can slightly differ from the latest version. To receive the most up-to-date technical information for project development please refer to your LT Company manager.
Technical Specifications
Technical Data
| Lumen maintenance | L70 @ 50K Hours |
| Photo biological Safety | RG0 |
| Electrical Insulation Class | Class 1 |
| IP Rating | IP20 |
| Surge Rating | 6 KVA With SPD |

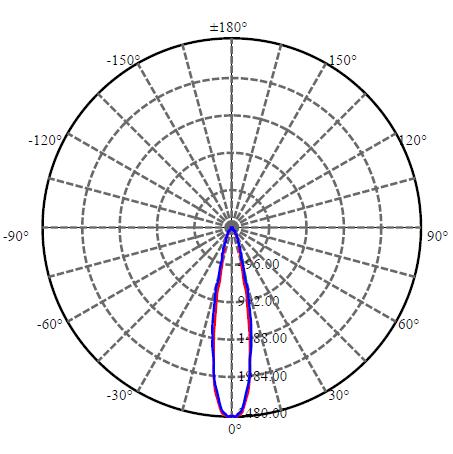

| Optics Beam Angle | 15/24 (+/-) 5 Degree |
| Driver Placement | Non Integral |
| Driver Type | Constant Current |
| Rated I/P Current | 0.025A @ 06W |
| PF | >0.95 |
| THD | <10% |
| IK Rating | IK 02 |
| Operating ambient Temp | 0 to 35 Degree C |
| Input Voltage Range | 140V - 270V |
Features
- Pressure die cast aluminum housing for optimal thermal conductivity.
- Anodized aluminum reflector for glare free light.
- Corrosion resistance powder coated finish using Nano Technology.
- High efficiency driver with necessary safety protections along with 6KV SPD.
Application Areas
Malls, Retail Shops, Offices, Lobbies, Corridors etc.
