TAME TWIN

The White appeal

TAME Array is a modular Recess mounted adjustable twin headed spot luminaire for varied tasks including ambient, accent & wall washing with maximum flexibility

Colors:

Wattage:

CCT:

Application Areas

Office: Malls, Retail Shops, Offices, Lobbies, Corridors etc.

Product Configuration / Application Images

In case of additional questions - please ask below:

Our lighting designers and sales engineers are ready to support your project specifications.

Due to the constant renewal of our model range and improving technical characteristics the technical information can slightly differ from the latest version. To receive the most up-to-date technical information for project development please refer to your LT Company manager.

Technical Specifications

Technical Data

Lumen maintenance	L70 @ 50K Hours
Photo biological Safety	RG0
Electrical Insulation Class	Class 1
IP Rating	IP20
Driver Placement	Non Integral
Driver Type	Constant Current
Rated I/P Voltage	220V - 240 VAC
Rated I/P Current	0.15A @ 36W
THD	<10%
IK Rating	IK 02
Operating ambient Temp	0 to 35 Degree C
Input Voltage Range	140V - 270 VAC

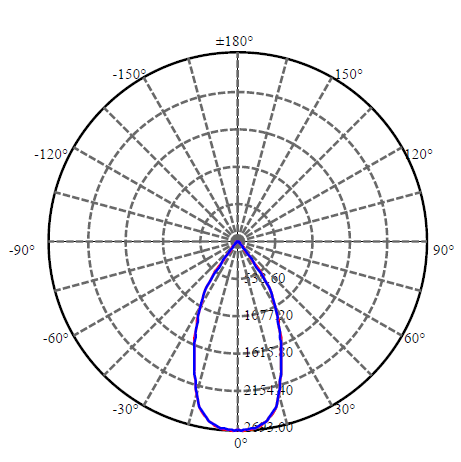

Optic Beam Angle	40 Degree
MacAdam Value	3 SDCM

Features

Corrosion resistance powder coated finish using Nano Technology.
High efficiency driver with necessary safety protections along with external 6KV SPD.
Pressure die cast aluminum housing for optimal thermal conductivity.
Anodized aluminium reflector optics.
Module can swivel for flexible arrangement.
