GLOSS MIN FL
CRADLE MOUNT FLOOD LIGHT

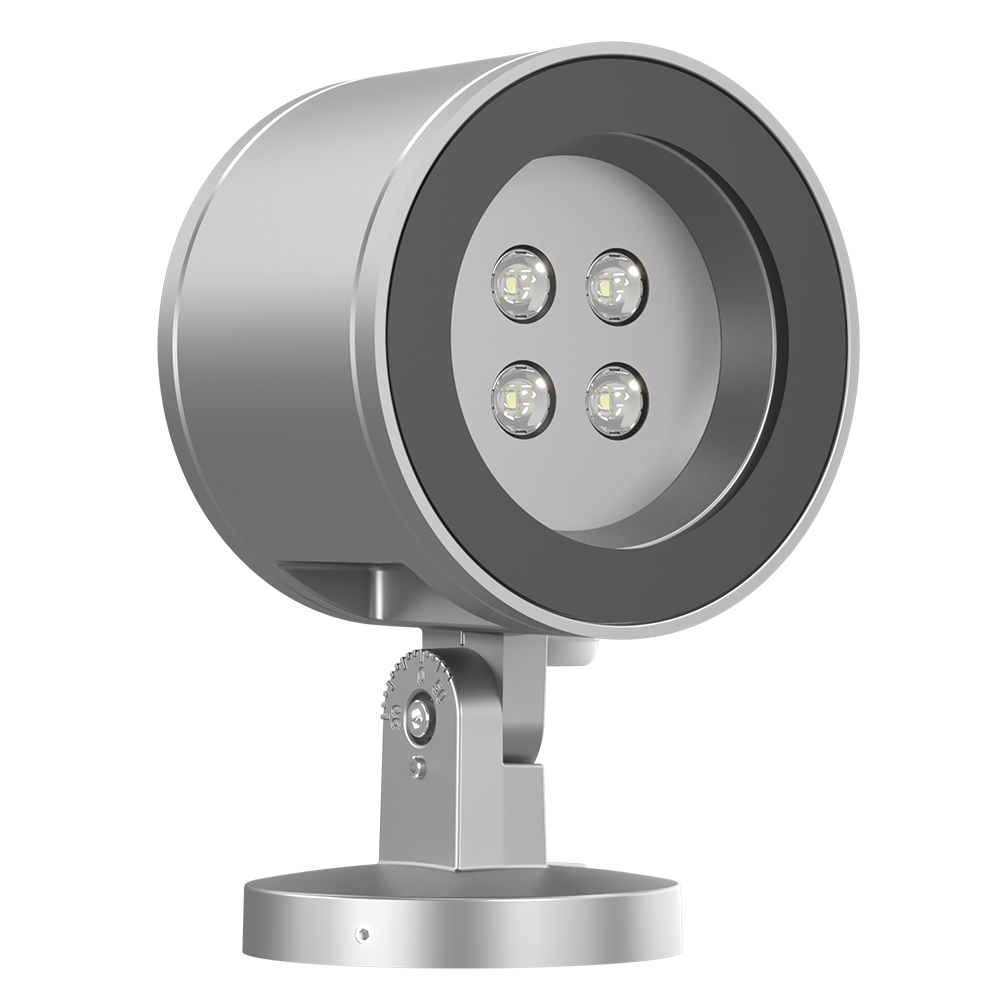

GLOSS MIN IS AN COMPACT OUTDOOR ARCHITECTURAL LED PROJECTOR FLOOD LIGHT WITH MULTIPLE OPTICS AND CCT OPTIONS SUITABLE FOR ARCHITECTURAL FACADE ILLUMINATION.
Colors:
Wattage:
CCT:
Application Areas
Office: Outdoor:- Structural facade, sculptures, heritage monuments, architectural spaces, bridges & other environments.

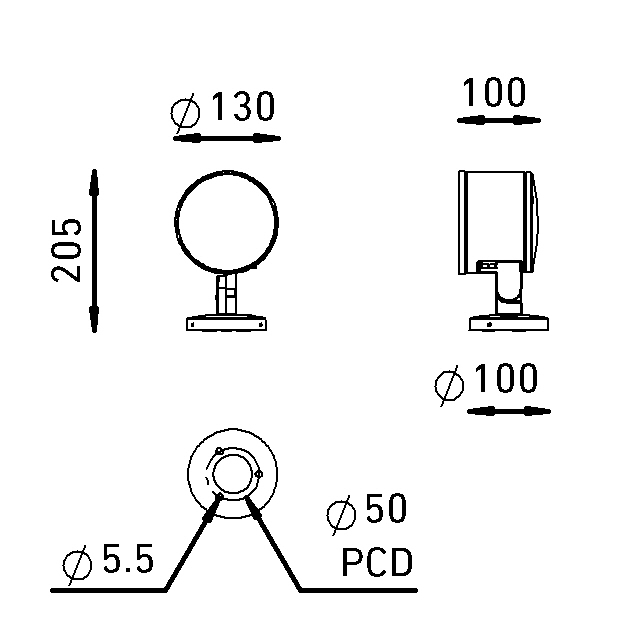

Product Configuration / Application Images
In case of additional questions - please ask below:
Our lighting designers and sales engineers are ready to support your project specifications.
Due to the constant renewal of our model range and improving technical characteristics the technical information can slightly differ from the latest version. To receive the most up-to-date technical information for project development please refer to your LT Company manager.
Technical Specifications
Technical Data
| Lumen maintenance | L70 @ 50000 B Hours |
| Electrical Insulation Class | Class 1 |
| IP Rating | IP66 |
| Driver Placement | Integral (Mono) / Remote within 2m IP Box (RGBW) |
| Driver Type | Constant Current |
| Rated I/P Voltage | 220V- 240 VAC |
| Rated I/P Current | 0.07A@15W |
| PF | >0.90 |
| THD | <10% |
| Operating Ambient Temp | 0 to 50 Degree C |

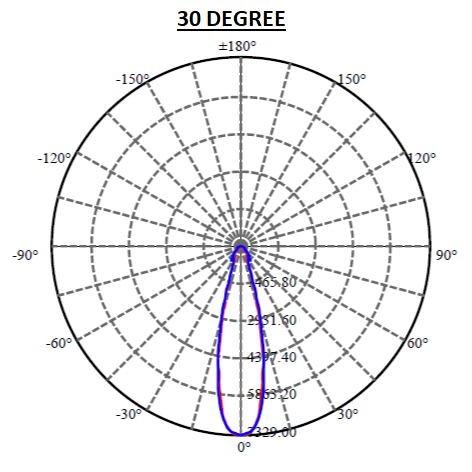

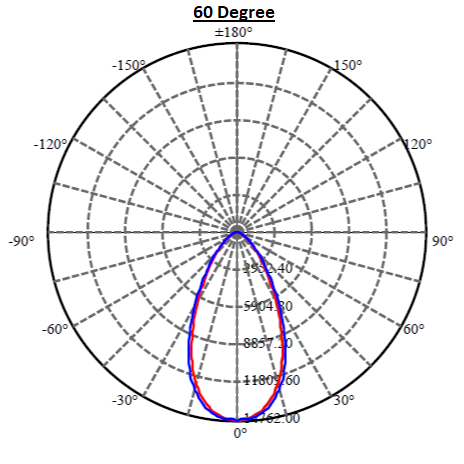

| Optic Beam Angle | Mono: 10/15/30/45/60°, RGBW: 15/30/45/60° |
| Surge Rating | 20KV with SPD |
| Product Weight | 1.7 Kg |
| Input Voltage Range | 140 VAC - 275 VAC |
| MacAdam Value | <5 SDCM |
Features
- Corrosion resistance powder coating using Nano Technology
- High efficiency driver with necessary safety protections along with additional 20KV SPD
- Pressure die cast aluminum housing for optimal thermal management
- Secondary optics PMMA lens with heat resistant tempered glass cover
- RGBW version compatible for DMX512/RDM controller with LILO connector
Application Areas
Outdoor:- Structural facade, sculptures, heritage monuments, architectural spaces, bridges & other environments.
