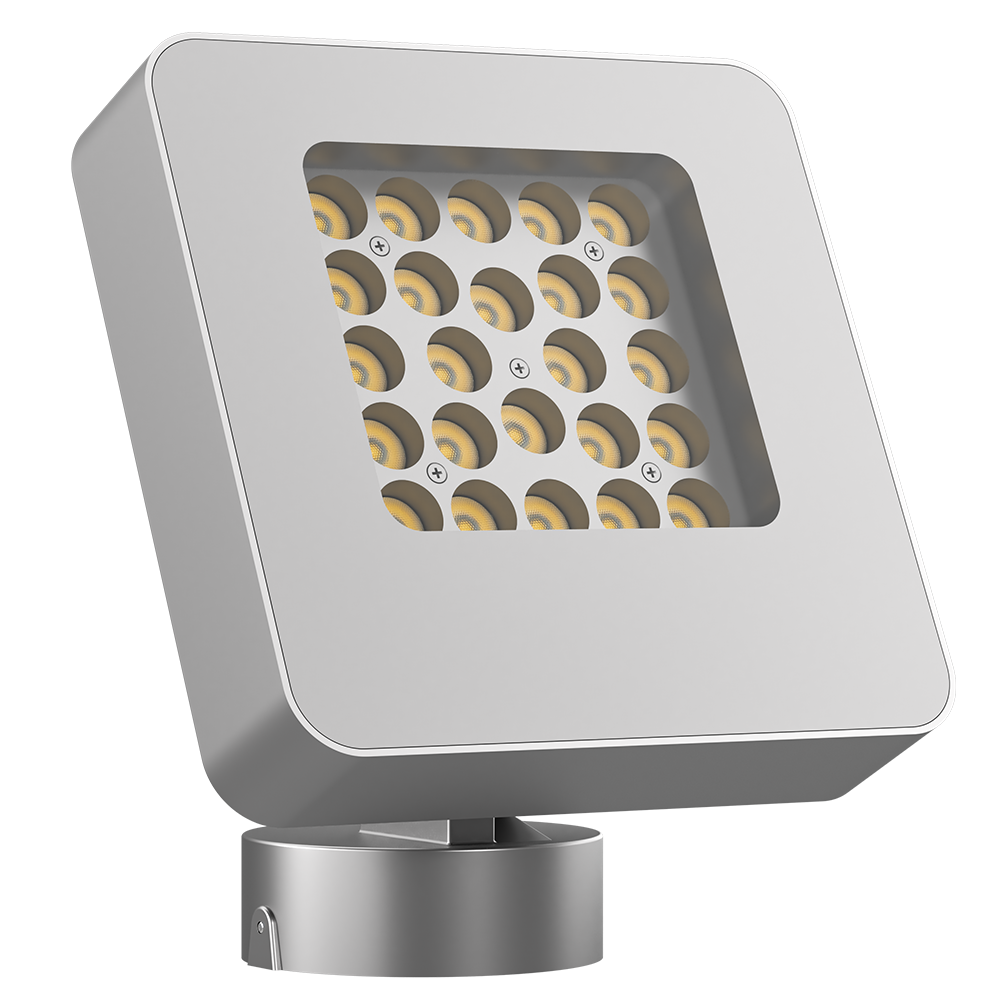

PAINTER 210 FL
SURFACE MOUNT FLOOD LIGHT
PAINTER 210 FL SURFACE FLOODLIGHT IS AN OUTDOOR ARCHITECTURAL LED LUMINAIRE WITH INNOVATIVE TECHNOLOGY, OPTICS & UNIQUE DESIGN.
Colors:
Wattage:
CCT:
Application Areas
Office: Outdoor:- Structural facade, sculptures, heritage monuments, architectural spaces & other environments.
Product Configuration / Application Images
In case of additional questions - please ask below:
Our lighting designers and sales engineers are ready to support your project specifications.
Due to the constant renewal of our model range and improving technical characteristics the technical information can slightly differ from the latest version. To receive the most up-to-date technical information for project development please refer to your LT Company manager.
Technical Specifications
Technical Data
| Lumen maintenance | L70 @ 50K Hours |
| Electrical Insulation Class | Class 1 |
| IP Rating | IP66 |
| Driver Placement | Integral |
| Driver Type | Constant Current |
| Rated I/P Voltage | 220V- 240 Vac |
| Rated I/P Current | 0.10A@24W |
| PF | >0.90 |
| IK Rating | IK 08 |
| Operating Ambient Temp | -20 to +40 Degree C |

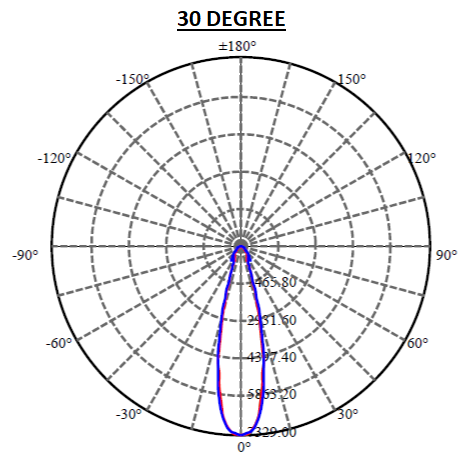

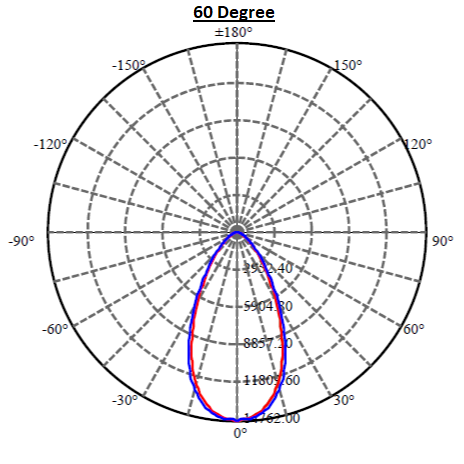

| Optic Beam Angle | 25/40/60 Degree |
| Surge Rating | 20KV with SPD |
| Input Voltage Range | 140 VAC - 275 VAC |
| MacAdam Value | <5 SDCM |
Features
- Corrosion resistance powder coating finish using Nano Technology
- High efficiency driver with necessary safety protections along with additional 20KV SPD
- Pressure die cast aluminum housing for optimal thermal dissipation
- Heat resistant UV stabilized toughened glass enclosure with PMMA secondary lens
Application Areas
Outdoor:- Structural facade, sculptures, heritage monuments, architectural spaces & other environments.
