RAINBOW
FLOOD LIGHT

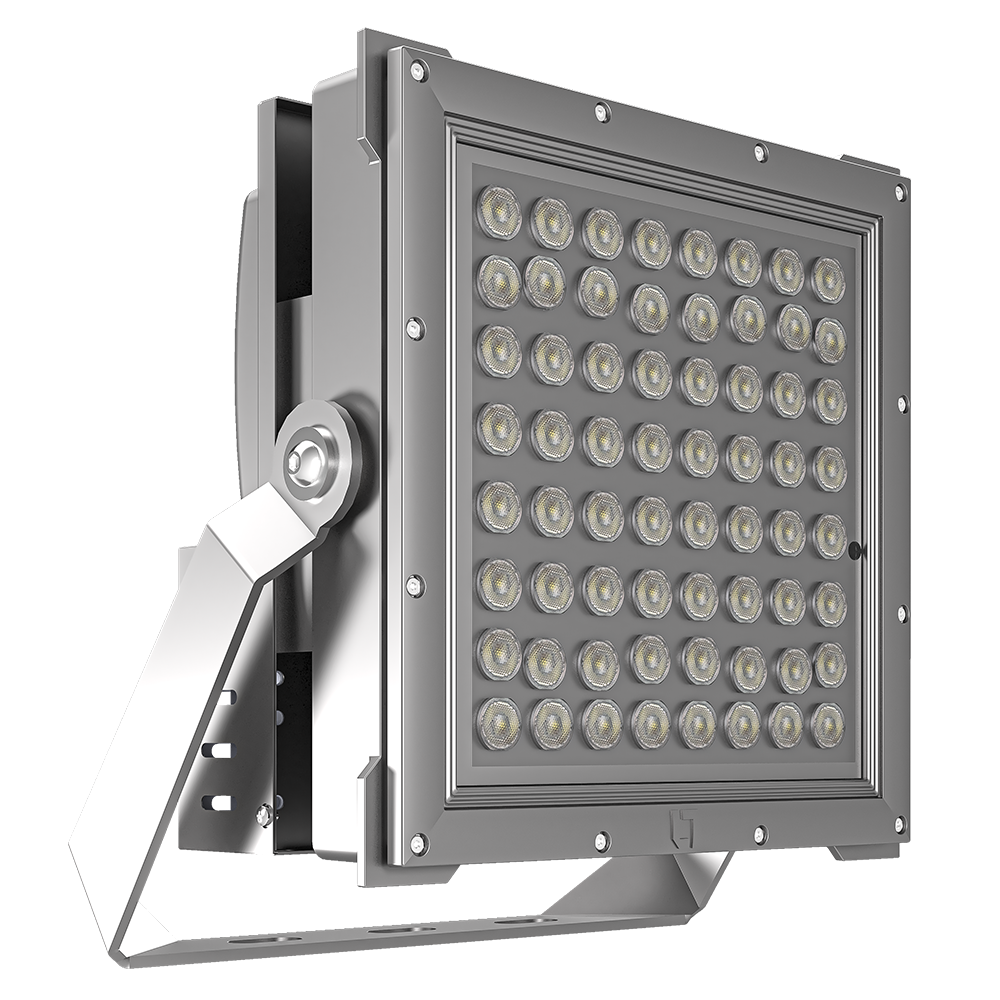

RAINBOW IS A OUTDOOR ARCHITECTURAL LED FLOOD LIGHT WITH UNIQUE DESIGN FOR ELIGANT AND COLOURFULL FACADE ILLUMINATION.
Colors:
Wattage:
CCT:
Application Areas
Office: Outdoor:- Ports, architectural buildings, facade lighting etc..
Product Configuration / Application Images
In case of additional questions - please ask below:
Our lighting designers and sales engineers are ready to support your project specifications.
Due to the constant renewal of our model range and improving technical characteristics the technical information can slightly differ from the latest version. To receive the most up-to-date technical information for project development please refer to your LT Company manager.
Technical Specifications
Technical Data
| Lumen maintenance | L70 @ 50000 B Hours |
| Electrical Insulation Class | Class 1 |
| IP Rating | IP66 |
| Driver Placement | Integral |
| Driver Type | Constant Current |
| Rated I/P Voltage | 220V- 240 VAC |
| PF | >0.95 |
| THD | <10% |
| IK Rating | IK 08 |
| Operating Ambient Temp | 0 to 50 Degree C |

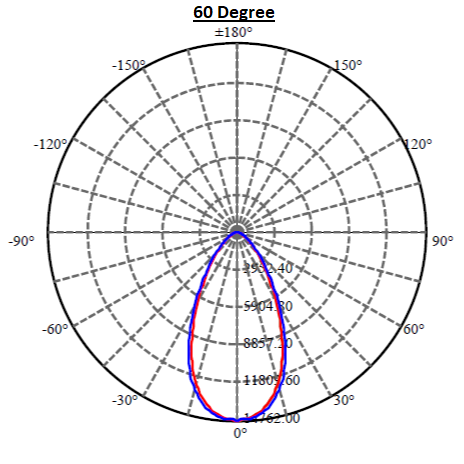

| Optic Beam Angle | 10/30/45/60 Degree |
| Surge Rating | 20KV with SPD |
| Product Weight | 11 Kg |
| Input Voltage Range | 100 - 300 VAC |
| MacAdam Value | <5 SDCM |
Features
- Housing made of pressure die cast aluminium alloy with extended heatsink fins for ensuring optimal thermal management
- High quality corrosion resistant Nano technology based powder coating for superior finish and durability
- High efficiency electrically isolated driver with necessary safety protections along with 20KV SPD
- Heat resistant toughened glass with silicone gasket ensures IP protection
- Thermally isolated driver for better heat dissipation
- RGBW version compatible for DMX512/RDM controller with LILO connector
Application Areas
Outdoor:- Ports, architectural buildings, facade lighting etc..
