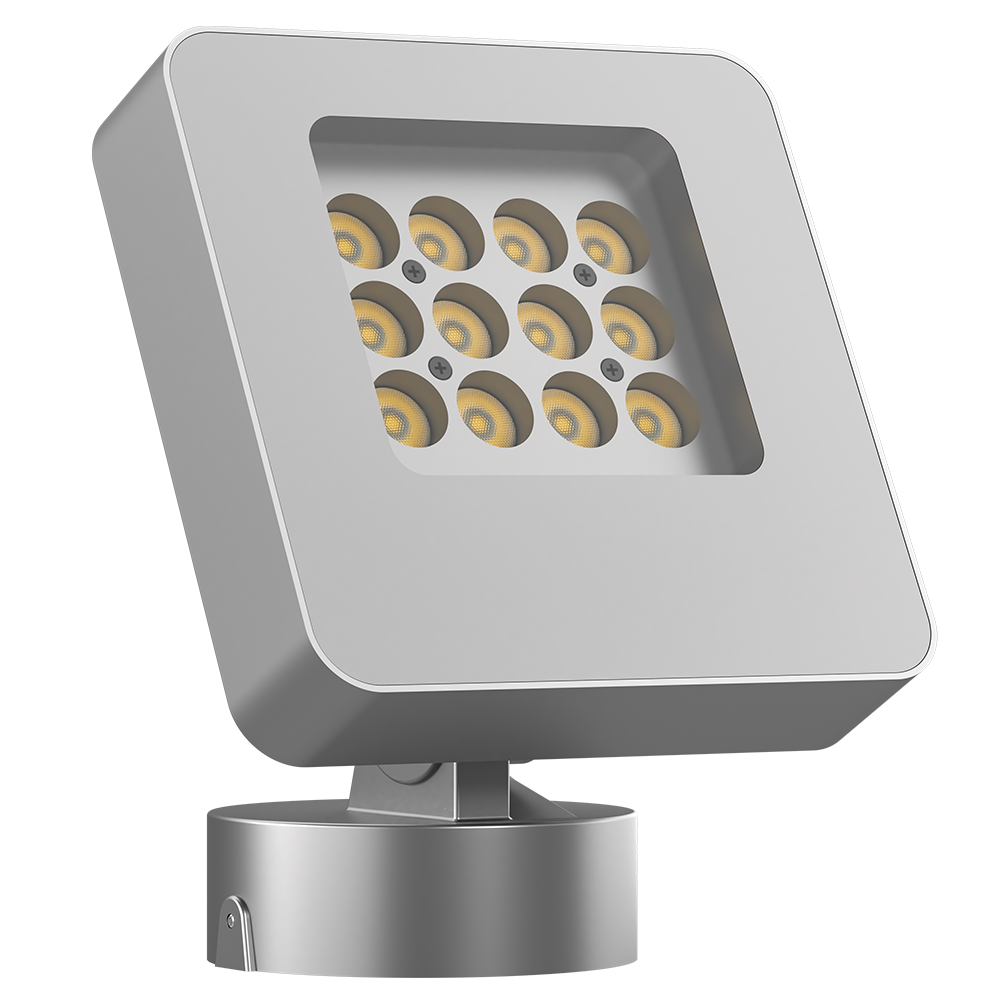

PAINTER 170 FL
SURFACE MOUNT FLOOD LIGHT
PAINTER 170 FL SURFACE FLOODLIGHT IS AN OUTDOOR ARCHITECTURAL LED LUMINAIRE WITH INNOVATIVE TECHNOLOGY, OPTICS & UNIQUE DESIGN.
Colors:
Wattage:
CCT:
Application Areas
Office: Outdoor:- Ports, architectural buildings, manufacturing plants, construction sites, high mast, etc.
Product Configuration / Application Images
In case of additional questions - please ask below:
Our lighting designers and sales engineers are ready to support your project specifications.
Due to the constant renewal of our model range and improving technical characteristics the technical information can slightly differ from the latest version. To receive the most up-to-date technical information for project development please refer to your LT Company manager.
Technical Specifications
Technical Data
| Lumen maintenance | L70 @ 50K Hours |
| Electrical Insulation Class | Class 1 |
| IP Rating | IP66 |
| Driver Placement | Integral |
| Driver Type | Constant Current |
| Rated I/P Voltage | 220V- 240 VAC |
| Rated I/P Current | 0.06A@15W |
| PF | >0.95 |
| IK Rating | IK 06 |
| Operating Ambient Temp | 0 to 50 Degree C |

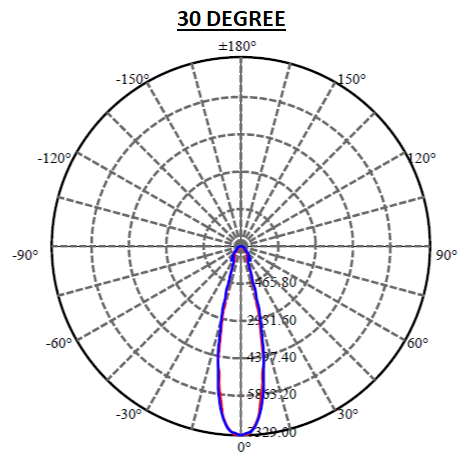

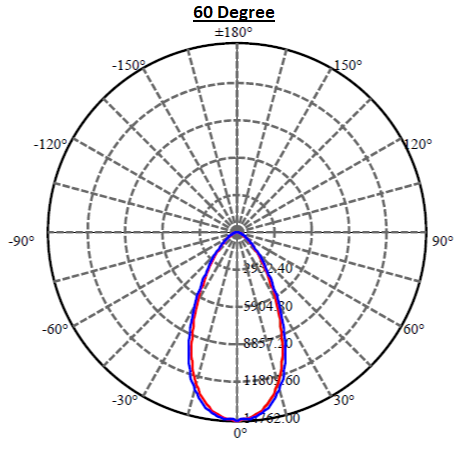

| Optic Beam Angle | 15° & 30° |
| Surge Rating | 20KV with SPD |
| Product Weight | 2.5 Kg |
| Input Voltage Range | 140 VAC - 275 VAC |
| MacAdam Value | <5 SDCM |
Features
- Corrosion resistance powder coated finish using Nano Technology
- High efficiency driver with necessary safety protections
- Pressure die cast aluminum housing for optimal thermal conductivity
- Specially formulated injection molded PC compounded lens cover for good impact resistance
- RGBW version compatible for DMX512/RDM controller with LILO connector
Application Areas
Outdoor:- Ports, architectural buildings, manufacturing plants, construction sites, high mast, etc.
