AQUA DL IP
RECESS LUMINAIRE

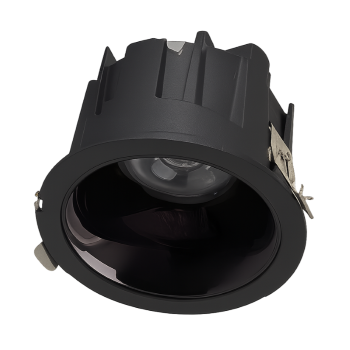

AQUA DL IP is a recessed downlight which comes with a unique precise accent lighting and creates a sparkling effect with maximum punch on Merchandise with ingress protection.
Colors:
Wattage:
CCT:
Application Areas
Office: Office:: Office spaces, Lobbies and corridors.
Product Configuration / Application Images
In case of additional questions - please ask below:
Our lighting designers and sales engineers are ready to support your project specifications.
Due to the constant renewal of our model range and improving technical characteristics the technical information can slightly differ from the latest version. To receive the most up-to-date technical information for project development please refer to your LT Company manager.
Technical Specifications
Technical Data
| Lumen maintenance | L70 @ 50K Hours |
| Photo biological Safety | RG0 |
| Electrical Insulation Class | Class 1 |
| IP Rating | IP65 |
| Driver Placement | Non Integral |
| Driver Type | Constant Current |
| Rated I/P Voltage | 220V- 240 Vac |
| Rated I/P Current | 0.04A@10W |
| Operating ambient Temp | 0 to 35 Degree C |

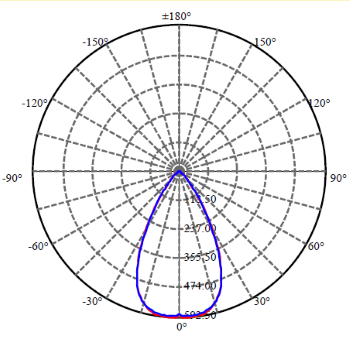

| Optics Beam Angle | 30/45/60 degree |
| PF | >0.95 |
| THD | <10% |
| MacAdam Value | 3 SDCM |
| Wattage | 7W-80W |
Features
- Pressure diecast housing for optimal thermal conductivity
- An IP65 housing allows for underwater use.
- Specially formulated PC compounded lens cover for good impact resistance.
- Encapsulated high efficiency isolated driver with necessary safety protections.
Application Areas
Office:: Office spaces, Lobbies and corridors.
