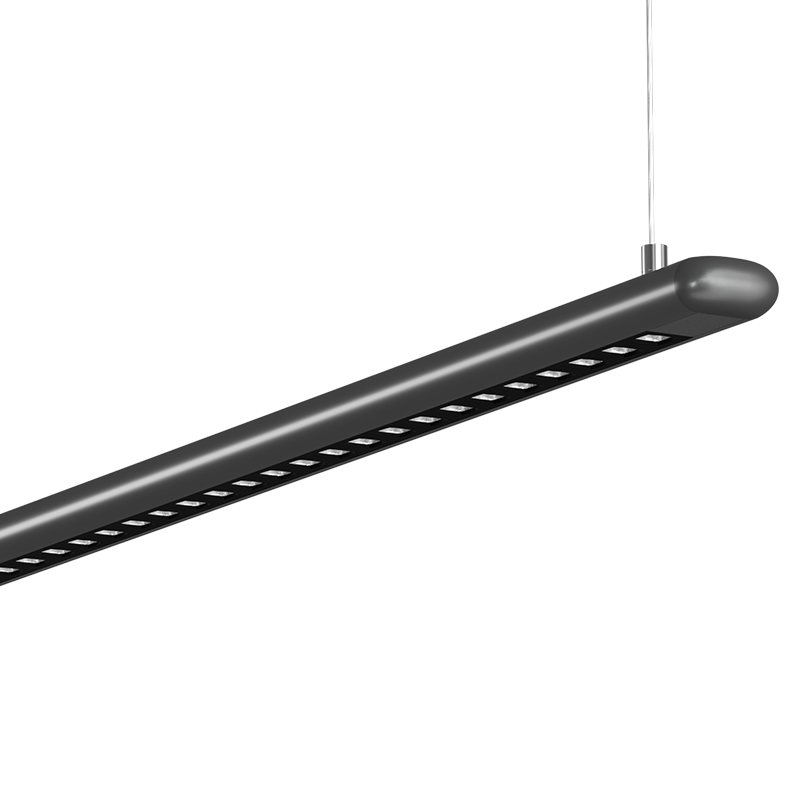

MIN LIGHT
L E S S is M O R E
A super-slim and highly evolved product engineered to push the limits of performance, reliability, and aesthetics, delivering more light with lesser resources, ensuring significant energy savings, and elevating the overall quality of light.
Colors:
Wattage:
CCT:
Length:
Application Areas
Office: Office::conference rooms, open offices, lobbies, and other environments

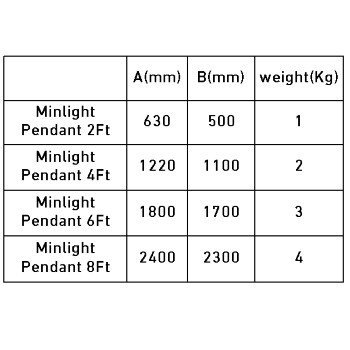

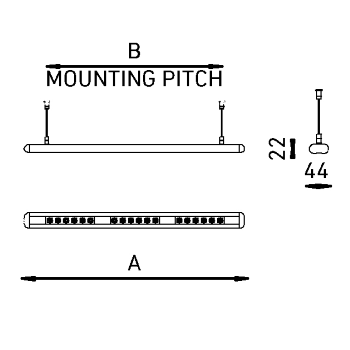

Product Configuration / Application Images
In case of additional questions - please ask below:
Our lighting designers and sales engineers are ready to support your project specifications.
Due to the constant renewal of our model range and improving technical characteristics the technical information can slightly differ from the latest version. To receive the most up-to-date technical information for project development please refer to your LT Company manager.
Technical Specifications
Technical Data
| Lumen maintenance | L70 @ 50K Hours |
| Photo biological Safety | RG0 |
| Electrical Insulation Class | Class 1 |
| IP Rating | IP20 |
| Surge Rating | 6KV SPD |

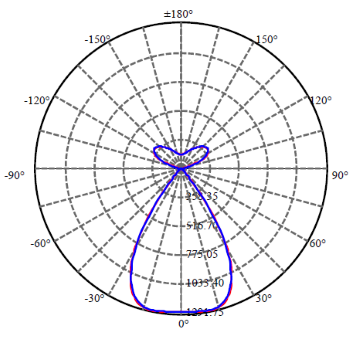

| Optics Beam Angle | 60 +/-5 Degree |
| Driver Placement | Non Integral |
| Driver Type | Constant Current |
| Rated I/P Current | 0.21A@50W |
| PF | >0.95 |
| THD | <10% |
| Operating ambient Temp | 0 to 35 Degree C |
| IK Rating | IK 02 |
| URG | <12 |
| Input Voltage Range | 140V - 270V |
| MacAdam Value | 3 SDCM |
| Wattage | 12W-40W |
Features
- Extruded Aluminum housing for better thermal management.
- Uniquely designed PDC Aluminum end cap.
- Micro linear reflector used for low glare & optimal light Transmission.
- Corrosion resistance with special Powder coated finish using Nano Technology.
- Available for Direct-Indirect light application.
- High efficiency driver with necessary safety protections along with additional 6KV surge protective device.
Application Areas
Office::conference rooms, open offices, lobbies, and other environments
