OMNILUX IP
Illuminating Life Intelligently

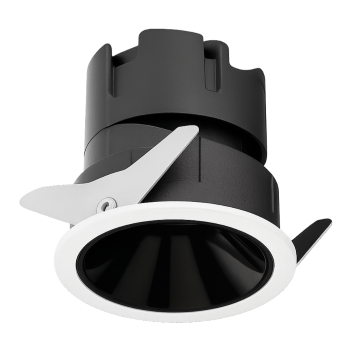

OMNILUX is a recess mounted downlight which comes with a unique lens optics to allow precise lighting effect.
Colors:
Wattage:
CCT:
Application Areas
Office: Office:: Office spaces, Lobbies and corridors.
Product Configuration / Application Images
In case of additional questions - please ask below:
Our lighting designers and sales engineers are ready to support your project specifications.
Due to the constant renewal of our model range and improving technical characteristics the technical information can slightly differ from the latest version. To receive the most up-to-date technical information for project development please refer to your LT Company manager.
Technical Specifications
Technical Data
| Lumen maintenance | L70 @ 50K Hours |
| Photo biological Safety | RG0 |
| Electrical Insulation Class | Class 1 |
| IP Rating | IP54 |

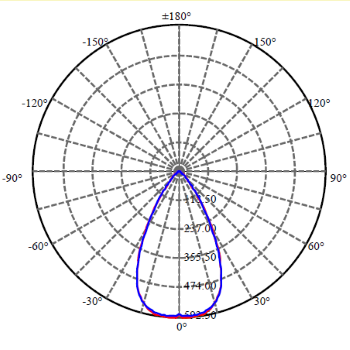

| Optics Beam Angle | 30/45/60 (+/-) 5 Degree |
| Driver Placement | Non Integral |
| Driver Type | Constant Current |
| Rated I/P Voltage | 220V- 240 Vac |
| PF | >0.95 |
| THD | <10% |
| IK Rating | IK 02 |
| Operating ambient Temp | 0 to 35 Degree C |
| MacAdam | 3 SDCM |
| Wattage | 6W-15W |
Features
- Aluminum reflector with Acrylic cover for glare free light.
- Corrosion resistance Powder coated finish using Nano Technology.
- Housing made of pressure die cast aluminum with extended heat sink for optimal thermal conductivity.
- High efficiency driver with necessary safety protections.
Application Areas
Office:: Office spaces, Lobbies and corridors.
