I LEAN V3
BASE OF BRIGHTNESS
A sleek, advanced lighting solution engineered for superior performance, reliability, and visual appeal while minimizing material and energy use. It delivers higher illumination with fewer resources, ensuring premium light quality and exceptional efficiency.
Colors:
Wattage:
CCT:
Length:
Application Areas
Office: Office::conference rooms, open offices, lobbies, and other environments

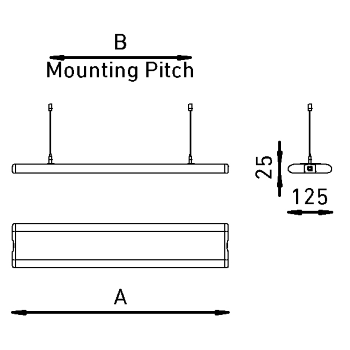

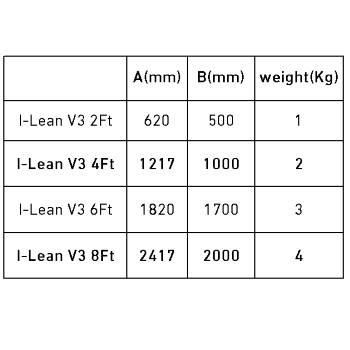

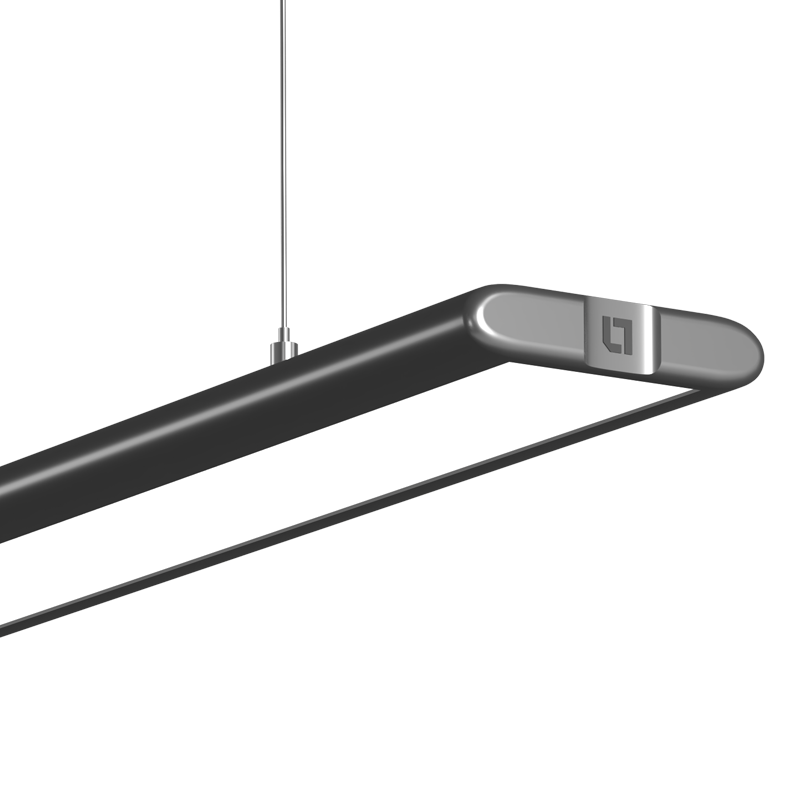

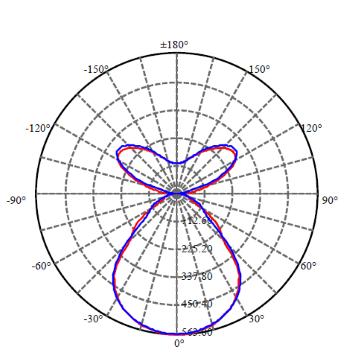

Product Configuration / Application Images
In case of additional questions - please ask below:
Our lighting designers and sales engineers are ready to support your project specifications.
Due to the constant renewal of our model range and improving technical characteristics the technical information can slightly differ from the latest version. To receive the most up-to-date technical information for project development please refer to your LT Company manager.
Technical Specifications
Technical Data
| Lumen maintenance | L70 @ 50K Hours |
| Photo biological Safety | RG0 |
| Electrical Insulation Class | Class 1 |
| IP Rating | IP20 |
| Surge Rating | 6 KV with SPD |
| Driver Placement | Non Integral |
| Driver Type | Constant Current |
| Rated I/P Voltage | 220V- 240 Vac |
| Rated I/P Current | 0.21A @ 50W |
| PF | >0.95 |
| THD | <10% |
| IK Rating | IK 02 |
| Input Voltage Range | 140V - 270V |
| MacAdam Value | 3 SDCM |
| Wattage | 12W-40W |
Features
- Extruded Aluminum housing for better thermal management.
- Uniquely designed PDC Aluminum end cap.
- Highly transmittance diffused diffuser with Down & Up-down light distribution for optimal light transmission.
- Corrosion resistance with special Powder coated finish using Nano Technology.
- Available for Direct-Indirect light application.
- High efficiency driver with necessary safety protections along with additional 6KV SPD.
Application Areas
Office::conference rooms, open offices, lobbies, and other environments
