FUSION L
Eternal Lighting

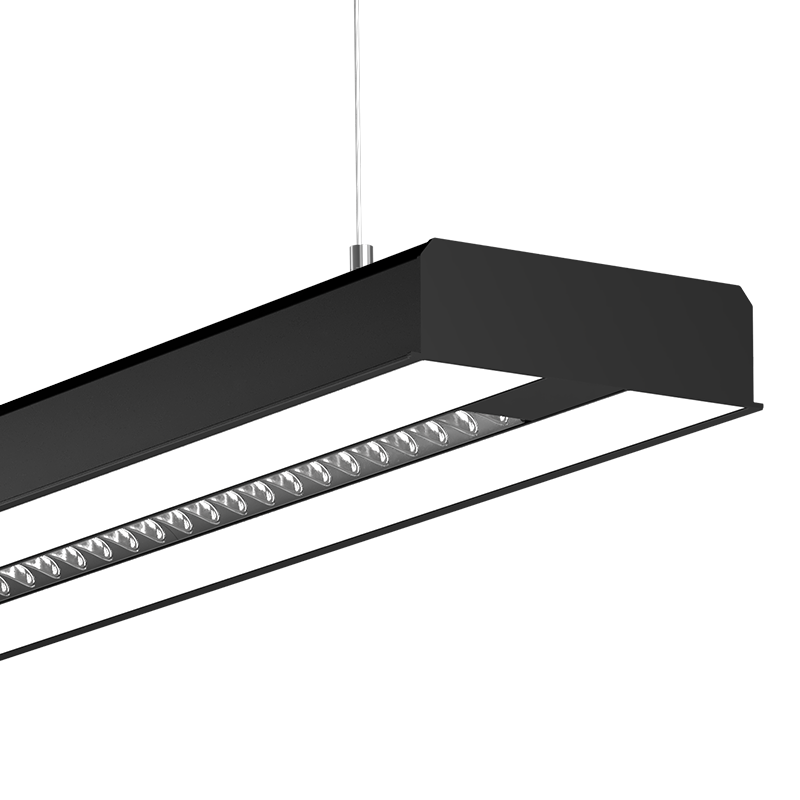

FUSION L is a low glare dual optics suspended LED luminaire featuring a prismatic diffuser and central Precise optics, designed to deliver high quality, uniform illumination for demanding modern workspaces.
Colors:
Wattage:
CCT:
Length:
Application Areas
Office: Office:: Office spaces, Lobbies and corridors.
Product Configuration / Application Images
In case of additional questions - please ask below:
Our lighting designers and sales engineers are ready to support your project specifications.
Due to the constant renewal of our model range and improving technical characteristics the technical information can slightly differ from the latest version. To receive the most up-to-date technical information for project development please refer to your LT Company manager.
Technical Specifications
Technical Data
| Lumen maintenance | L70 @ 50K Hours |
| Photo biological Safety | RG0 |
| Electrical Insulation Class | Class 1 |
| IP Rating | IP20 |
| Surge Rating | 6 KVA With SPD |
| Driver Placement | Non Integral |
| Driver Type | Constant Current |
| Rated I/P Voltage | 220V - 240 VAC |
| PF | >0.95 |
| THD | <10% |
| IK Rating | IK 02 |
| Operating ambient Temp | 0 to 35 Degree C |
| MacAdam Value | 3 SDCM |
| Input Voltage Range | 140V - 270V |
| MacAdam Value | 3 SDCM |
| Wattage | 30W - 60W |
Features
- Extruded Aluminum housing for better thermal management
- Central precise reflector with daisy mini optics for effective light distribution
- White Powder coated finish using Nano Technology for higher durability
- High efficiency driver with necessary safety protections along with 6KV SPD.
- Central and Peripheral optics will be controlled by separate controllers.
Application Areas
Office:: Office spaces, Lobbies and corridors.
