TAME 1X1

CHOOSE IT BRIGHT IT

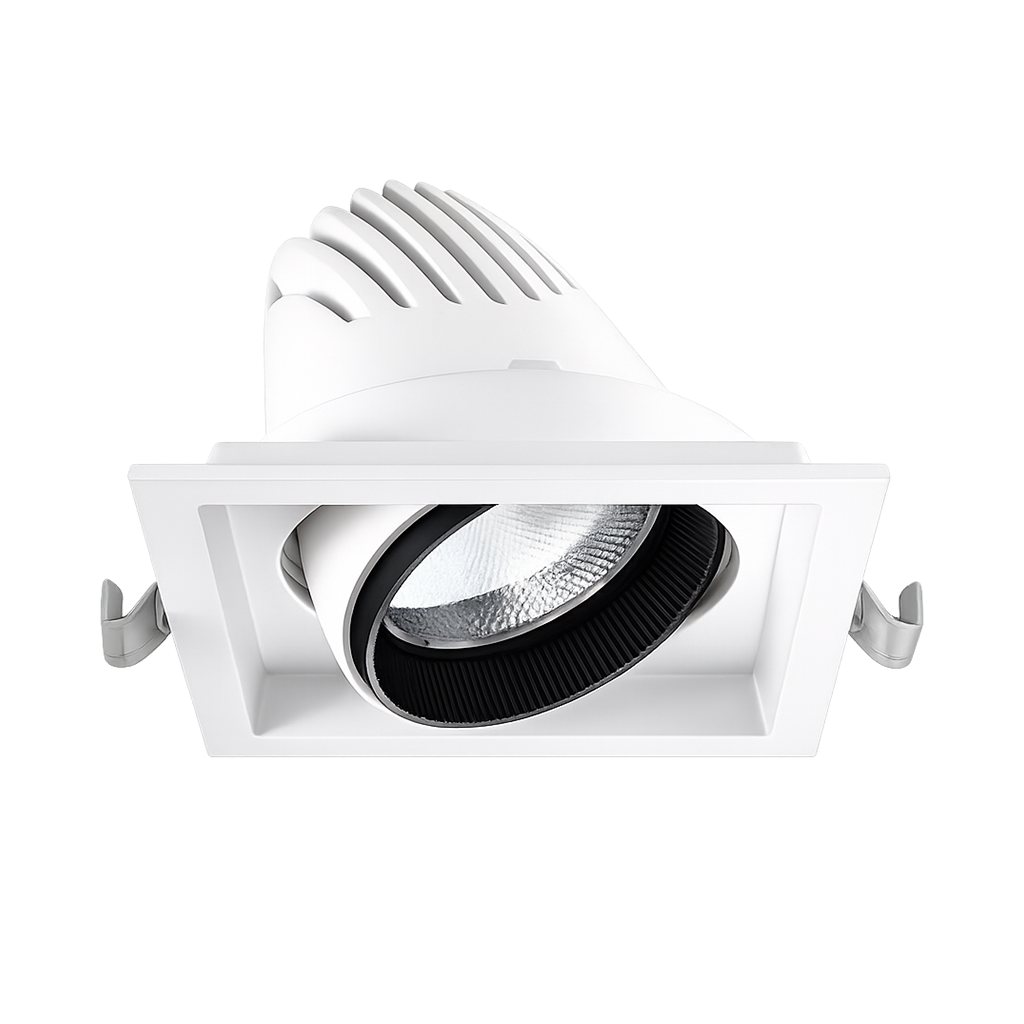

TAME Array is a modular Recess mounted adjustable single headed spot luminaire for varied tasks including ambient, accent & wall washing with maximum flexibility.

Colors:

Wattage:

CCT:

Application Areas

Office: Office: Office spaces, Lobbies and corridors

Product Configuration / Application Images

In case of additional questions - please ask below:

Our lighting designers and sales engineers are ready to support your project specifications.

Due to the constant renewal of our model range and improving technical characteristics the technical information can slightly differ from the latest version. To receive the most up-to-date technical information for project development please refer to your LT Company manager.

Technical Specifications

Technical Data

Lumen maintenance	L70 @ 50K Hours
Photo biological Safety	RG0
Electrical Insulation Class	Class 1
IP Rating	IP20
Driver Placement	Non Integral
Driver Type	Constant Current
Rated I/P Voltage	220V- 240 VAC
Rated I/P Current	0.10A@24W
THD	<10%
IK Rating	IK 08
Operating ambient Temp	0 to 35 Degree C
Input Voltage Range	140V-270V

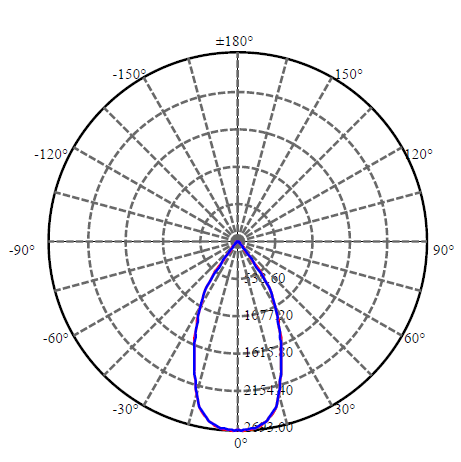

Optic Beam angle	40 Degree

Features

Corrosion resistance white Powder coated finish using Nano Technology.
High efficiency driver with necessary safety protections along with external 6KV SPD
Pressure Die cast Aluminum housing for optimal thermal conductivity.
Anodized aluminium reflector optics
Module can zoom out and swivel for flexible arrangement
