CANOPUS 229
SURFACE MOUNT

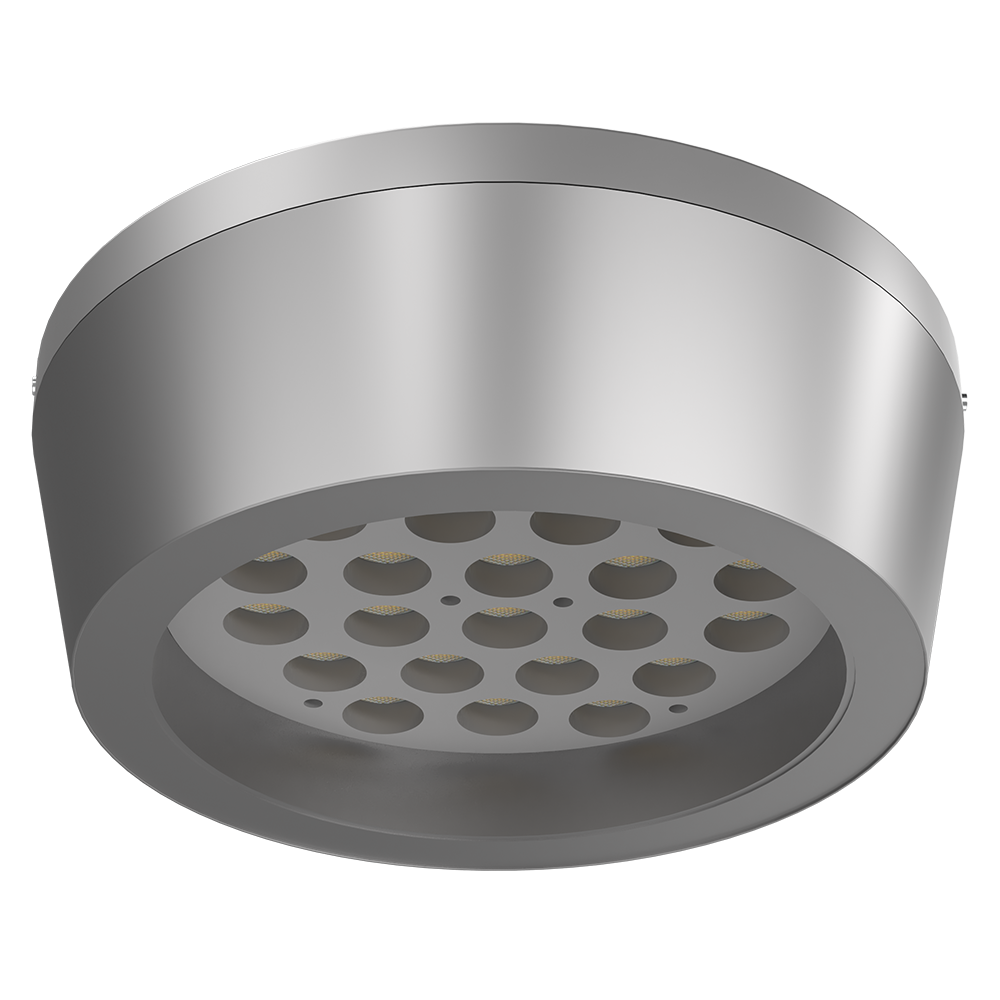

CANOPUS 229 SURFACE DOWNLIGHT is an outdoor architectural LED luminaire with name itself suggesting the glow of success
Colors:
Wattage:
CCT:
Application Areas
Office: Outdoor:- Outdoor Canopy, Corridors, Passages etc..
Product Configuration / Application Images
In case of additional questions - please ask below:
Our lighting designers and sales engineers are ready to support your project specifications.
Due to the constant renewal of our model range and improving technical characteristics the technical information can slightly differ from the latest version. To receive the most up-to-date technical information for project development please refer to your LT Company manager.
Technical Specifications
Technical Data
| Lumen maintenance | L70 @ 50000 B Hours |
| Electrical Insulation Class | Class 1 |
| IP Rating | IP65 |
| Driver Placement | Integral |
| Driver Type | Constant Current |
| Rated I/P Voltage | 220V- 240 VAC |
| Rated I/P Current | 0.21A@50W |
| PF | >0.90 |
| IK Rating | IK 08 |
| Operating ambient Temp | -20 to +40 Degree C |
| Surge Rating | 20KV with SPD |
| Input Voltage Range | 140 VAC - 275 VAC |

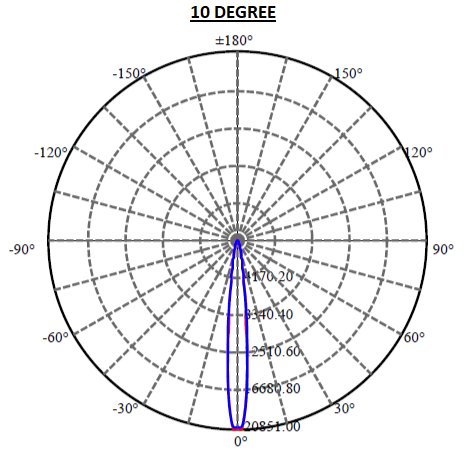

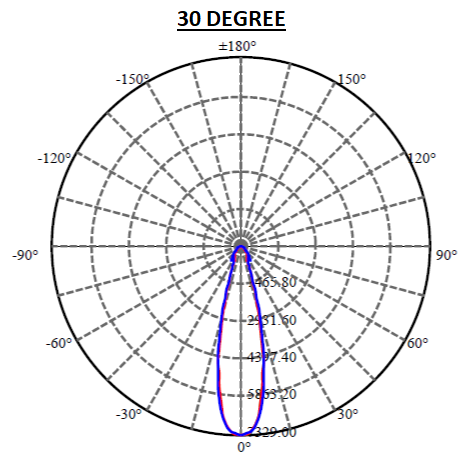

| Optic Beam Angle | 10/30/60 degrees |
Features
- Corrosion resistance Powder coated finish using Nano Technology.
- High efficiency driver with necessary safety protections along with additional 20KV SPD
- Pressure Die cast Aluminum housing for optimal thermal conductivity.
- Heat resistance toughened glass enclosure with secondary PMMA lens
Application Areas
Outdoor:- Outdoor Canopy, Corridors, Passages etc..
