ILLUMIN 180

INGROUND RECESS

ILLUMIN INGROUND 180 IS A OUTDOOR ARCHITECTURAL RECESSED INGROUND LED LUMINARIE TO ACHIVE PRECISE UPLIGHTING ILLUMINATION ON STRUCTURAL FACADE WITH TILTABLE FEATURE.

Colors:

Wattage:

CCT:

Application Areas

Office: Outdoor- Up lighting application for Hardscape spaces - Building facade, Columns, Heritage Structures & Sculptures .etc.,

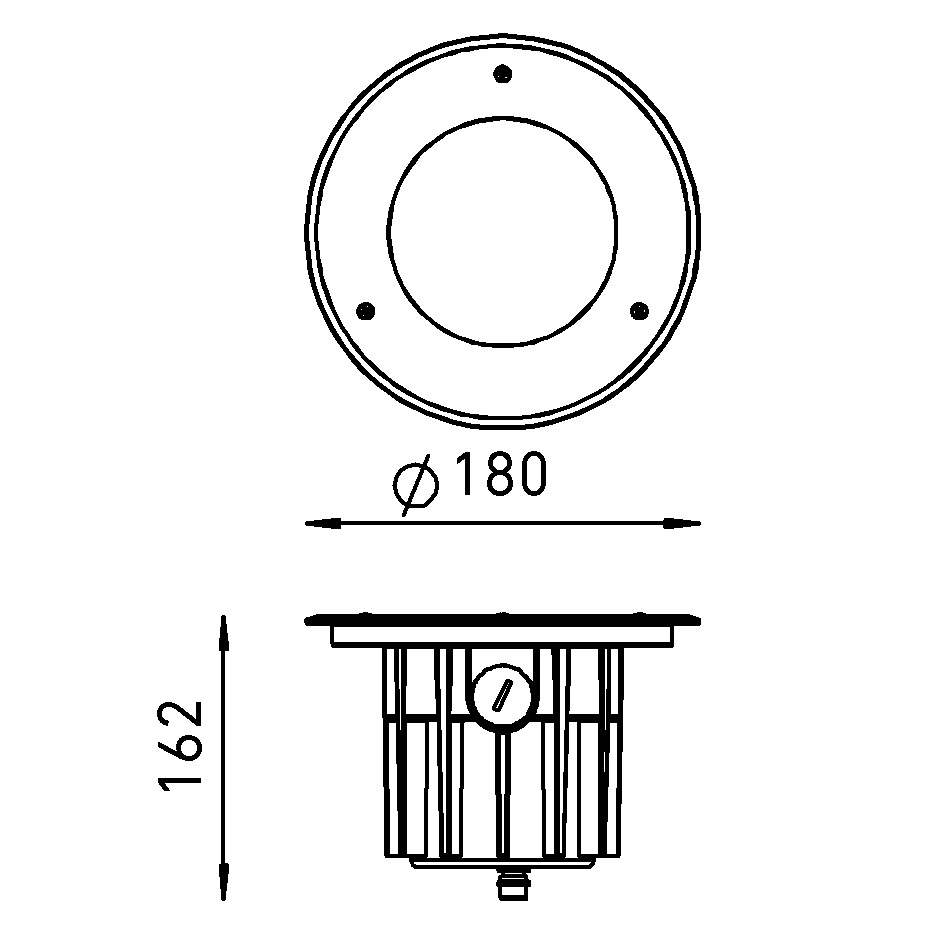

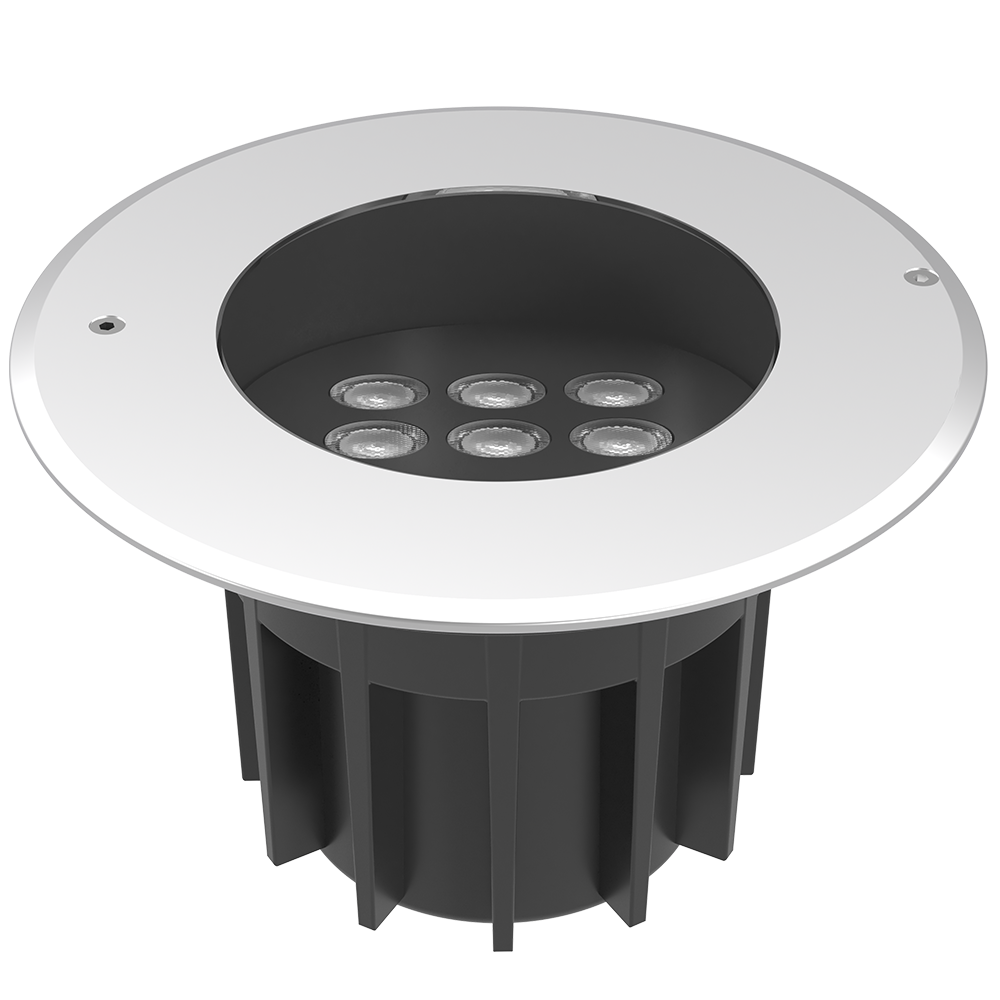

Product Configuration / Application Images

In case of additional questions - please ask below:

Our lighting designers and sales engineers are ready to support your project specifications.

Due to the constant renewal of our model range and improving technical characteristics the technical information can slightly differ from the latest version. To receive the most up-to-date technical information for project development please refer to your LT Company manager.

Technical Specifications

Technical Data

Lumen maintenance	L70 @ 50K Hours
Photo biological Safety	RG0
Electrical Insulation Class	Class 1
IP Rating	IP67
Driver Placement	Non Integral
Driver Type	Constant Voltage
Rated I/P Voltage	24VDC
Rated I/P Current	0.75A@18W
Operating ambient Temp	-20 to +40 Degree C

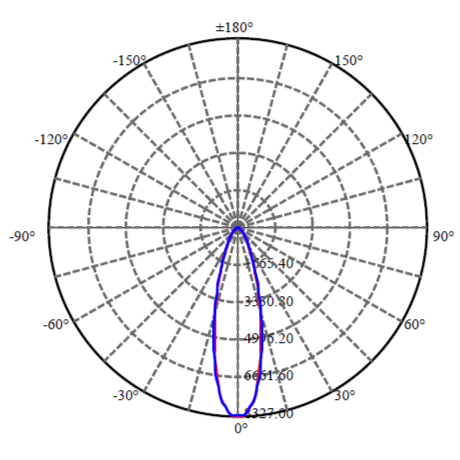

Optics Beam angle	25/40/60 degree

Features

PDC Aluminum Alloy housing ensuring optimum thermal management
Toughened glass with stainless steel front cover and mounting jacket made of ABS
Comes with deep recessed PMMA lens for low glare with effective beam angles
Corrosion resistance Powder coating using Nano Technology
High efficiency driver with necessary safety protections

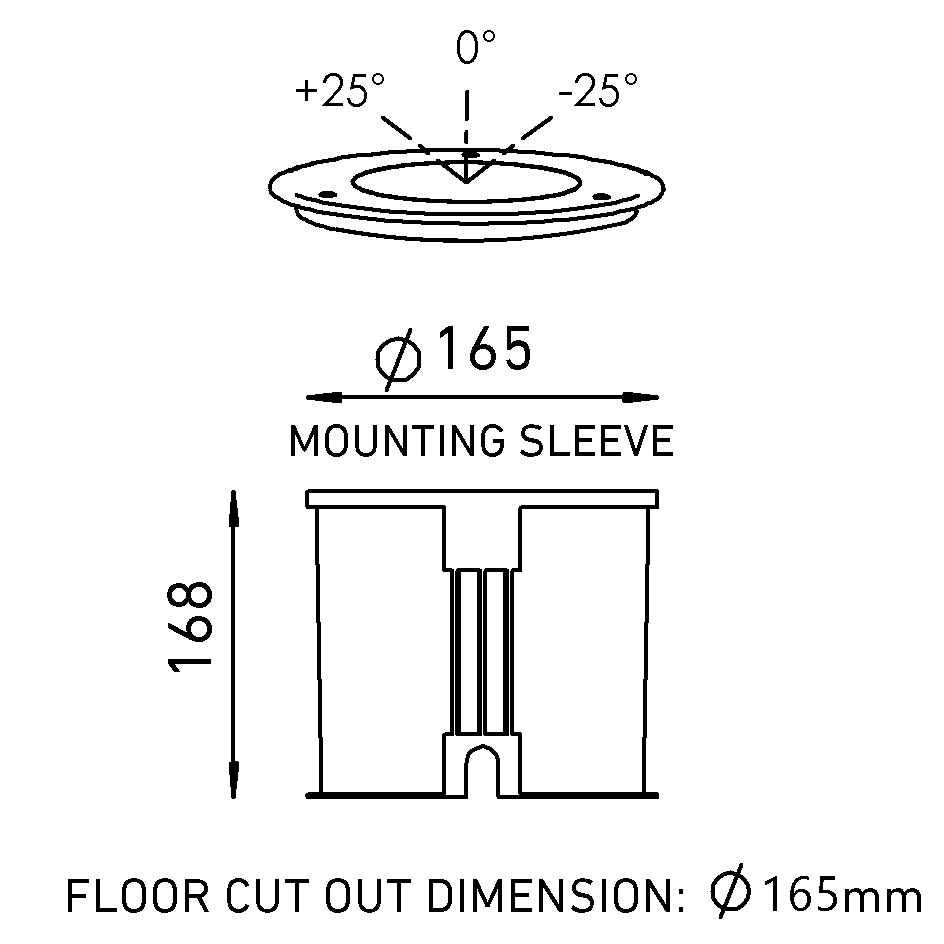

Inbuilt (+/-)25 Deg Tiltable feature for optical compartment.
