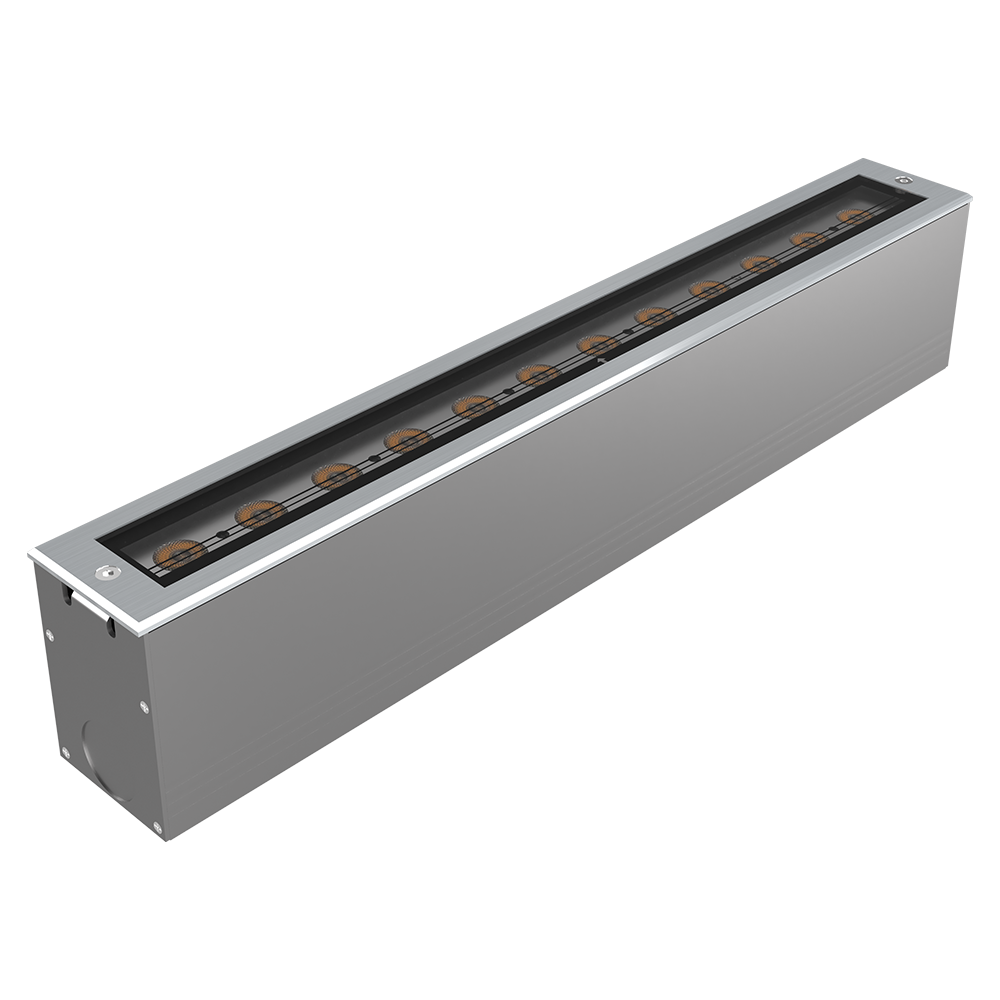

ILLUMIN LINEAR INGROUND 55
LINEAR RECESS
ILLUMIN is an Inground light great way to improve the safety and visibility of your path
Colors:
Wattage:
CCT:
Application Areas
Office: Outdoor-Pathway, Garden, Landscape, Hardscape, Driveway, Deck, Pool etc.
Product Configuration / Application Images
In case of additional questions - please ask below:
Our lighting designers and sales engineers are ready to support your project specifications.
Due to the constant renewal of our model range and improving technical characteristics the technical information can slightly differ from the latest version. To receive the most up-to-date technical information for project development please refer to your LT Company manager.
Technical Specifications
Technical Data
| Lumen maintenance | L80B50 @ 50K Hours |
| Photo biological Safety | RG0 |
| Electrical Insulation Class | Class 2 |
| IP Rating | IP67 |
| Driver Placement | Non Integral |
| Driver Type | Constant Current |
| Rated I/P Voltage | 220V- 240 VAC |
| Rated I/P Current | 0.15A@36W |
| THD | <10% |
| IK Rating | IK 08 |
| Operating ambient Temp | 0 to 35 Degree C |

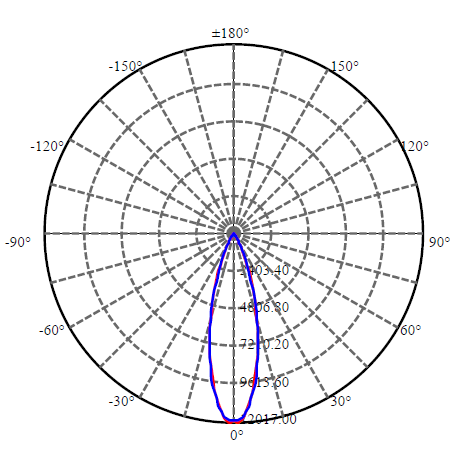

| Optics Beam angle | 10/30/45/60/10X60/10X30 degree |
| MacAdam Value | 5 SDCM |
Features
- Extruded Aluminum Alloy housing system ensuring optimum thermal management
- High transparency tempered glass Louvers with Antiglare Honeycomb
- Optical grade PMMA lens with high light transmittance & for glare free light
- Corrosion resistance Powder coated using Nano Technology
- Constructed with high-quality 316-grade stainless steel for enhanced corrosion resistance and durability
Application Areas
Outdoor-Pathway, Garden, Landscape, Hardscape, Driveway, Deck, Pool etc.
