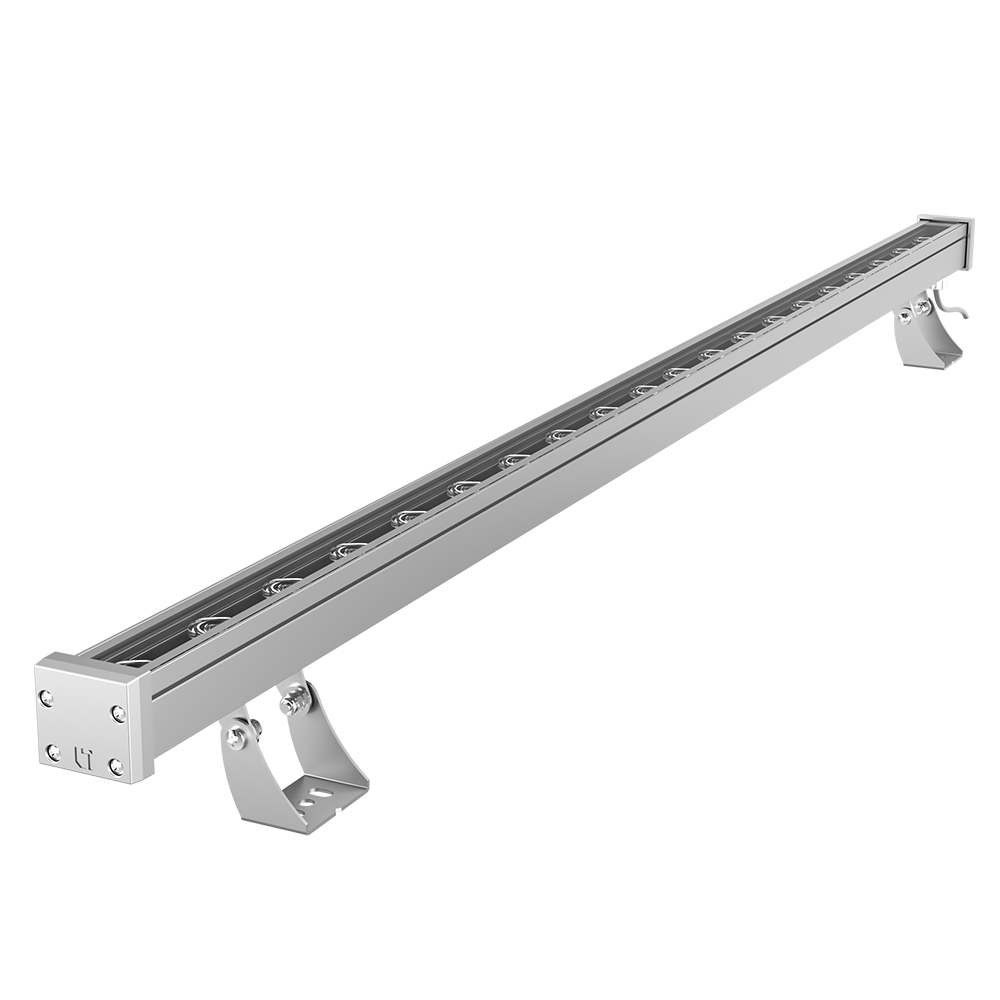

LINEAR WALLWASH NI 30
SURFACE MOUNT
LINEAR WW NI 30 IS A SLEEK OUTDOOR ARCHITECTURAL FACADE LIGHT THAT HOMOGENOUSLY WASHES THE WALLS.
Colors:
Wattage:
CCT:
Length:
Application Areas
Office: Fascade lighting
Product Configuration / Application Images
In case of additional questions - please ask below:
Our lighting designers and sales engineers are ready to support your project specifications.
Due to the constant renewal of our model range and improving technical characteristics the technical information can slightly differ from the latest version. To receive the most up-to-date technical information for project development please refer to your LT Company manager.
Technical Specifications
Technical Data
| Lumen maintenance | L70 @ 50K Hours |
| Photo biological Safety | RG0 |
| Electrical Insulation Class | Class 1 |
| IP Rating | IP66 |
| Rated I/P Voltage | 24V DC |
| Rated I/P Current | 0.4A@10W |
| IK Rating | IK 05 |
| Operating ambient Temp | 0 to 50 Degree C |

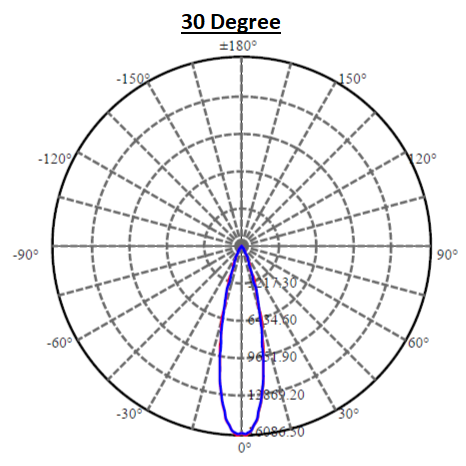

| Optic Beam angle | 10,15,30,45,60, 10X30,10X60, 30X60 degree |
| MacAdam Value | <5 SDCM |
Features
- Secondary optics PMMA lens with heat resistant tempered glass cover
- Corrosion resistance with special Powder coated finish using Nano Technology.
- Extruded Aluminum housing for better thermal management.
Application Areas
Fascade lighting
