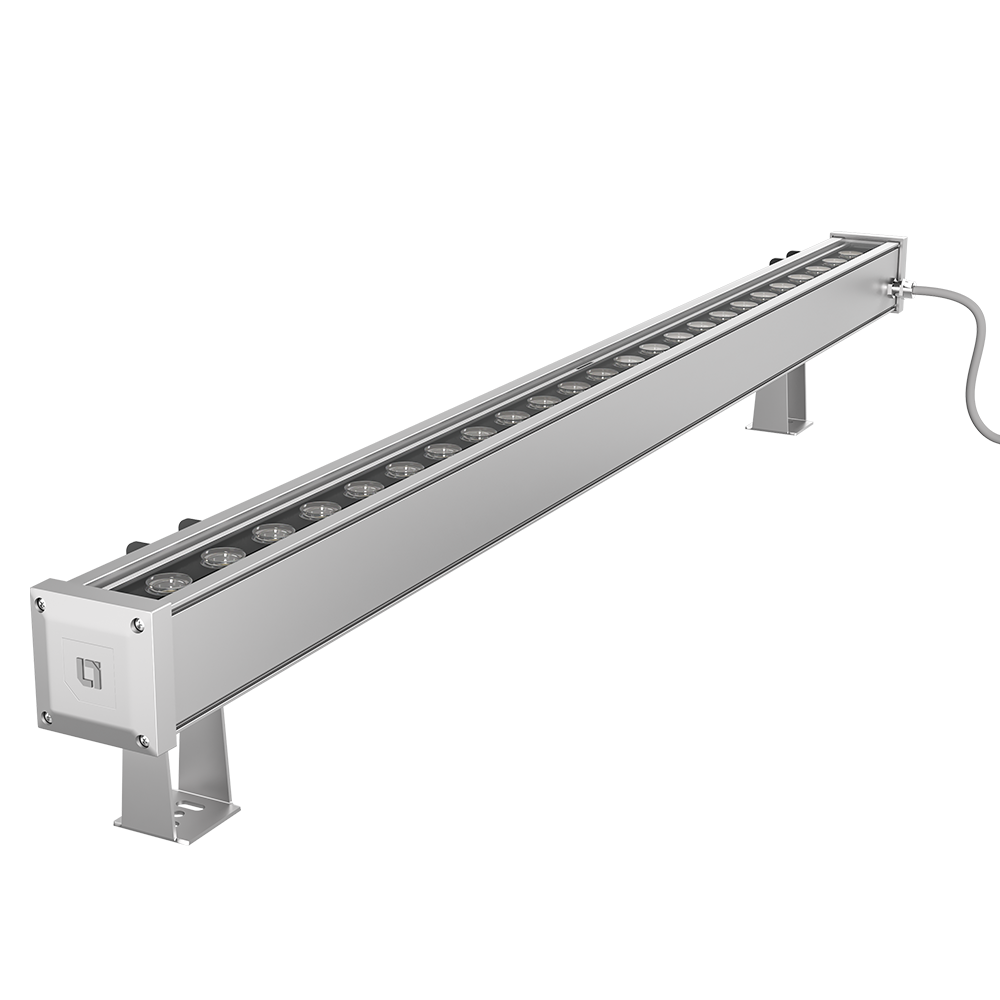

LINEAR WALLWASH NI 50
SURFACE MOUNTED LUMINAIRE
Application Areas
Office: OUTDOOR:- Facade walls, Artwork ,Art galleries, Garden walls, Monument, Historical structures, Green walls and other environments
Product Configuration / Application Images
In case of additional questions - please ask below:
Our lighting designers and sales engineers are ready to support your project specifications.
Due to the constant renewal of our model range and improving technical characteristics the technical information can slightly differ from the latest version. To receive the most up-to-date technical information for project development please refer to your LT Company manager.
Technical Specifications
Technical Data
| Lumen maintenance | L70 @ 50000 B Hours |
| Photo biological Safety | RG0 |
| Electrical Insulation Class | Class 1 |
| IP Rating | IP66 |
| Rated I/P Voltage (Mono colour) | 24VDC |
| Rated I/P Current | 1.6A@40W (24VDC) |
| IK Rating | IK 05 |
| Operating ambient Temp | 0 to 50 Degree C |

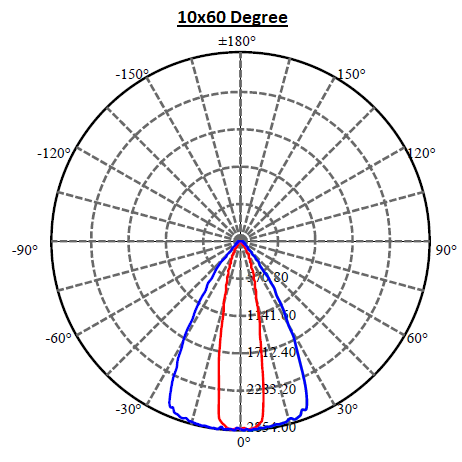

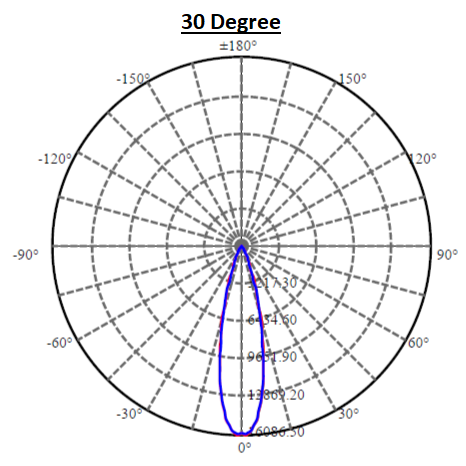

| Optic Beam angle (Mono colour) | 15,30,45,60, 10X60,30X60 Degrees |
| MacAdam Value | <5 SDCM (for White LEDs) |
| Optic Beam angle (RGBW) | 30,45,60,10X60,30X60 Degrees |
| Rated I/P Voltage (RGBW) | 24V,48 VDC |
Features
- PMMA lens optics for optimal light transmission and even wall wash light distribution.
- Corrosion resistance with special Powder coated finish using Nano Technology.
- Extruded Aluminum housing for better thermal management.
- RGBW version compatible for DMX512/RDM controller with LILO connector.
Application Areas
OUTDOOR:- Facade walls, Artwork ,Art galleries, Garden walls, Monument, Historical structures, Green walls and other environments
