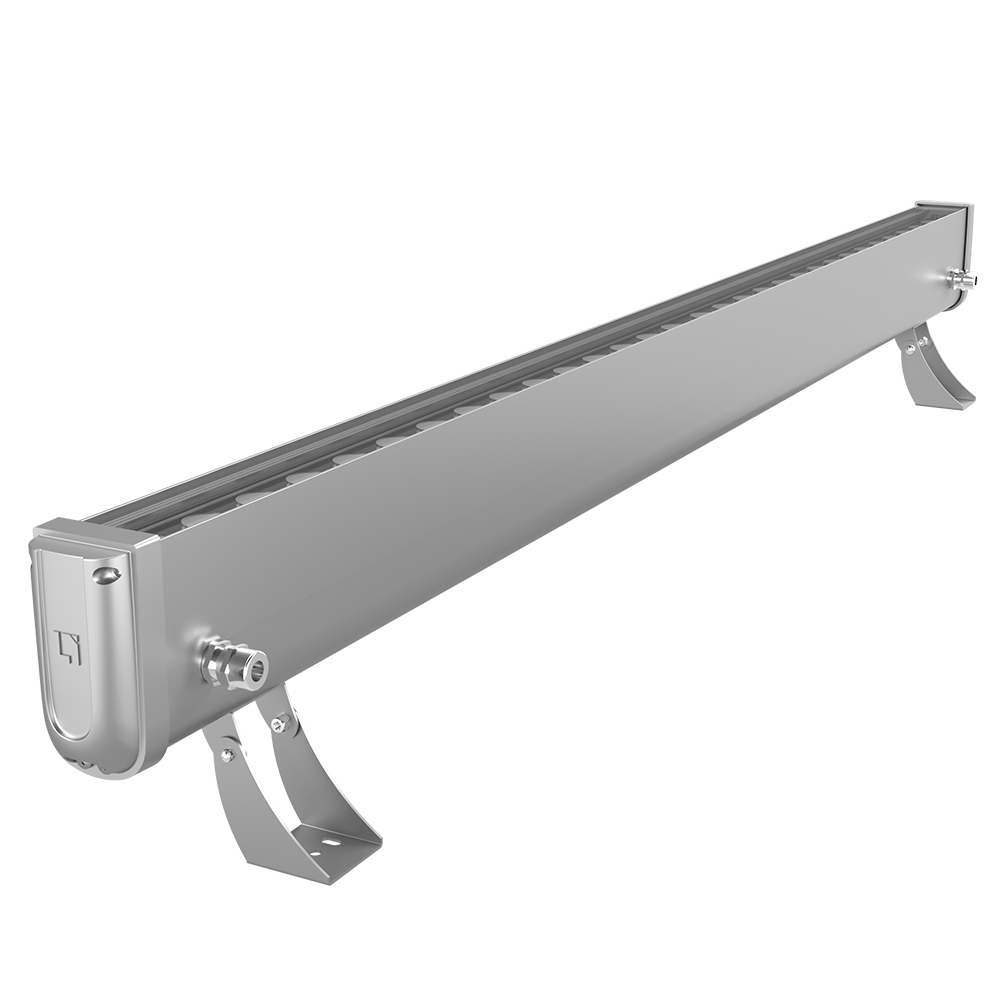

LINEAR WALLWASH U-LINE
SURFACE MOUNT
Application Areas
Office: OUTDOOR:- Facade walls, Artwork ,Art galleries, Garden walls, Monument, Historical structures, Green walls and other environments
Product Configuration / Application Images
In case of additional questions - please ask below:
Our lighting designers and sales engineers are ready to support your project specifications.
Due to the constant renewal of our model range and improving technical characteristics the technical information can slightly differ from the latest version. To receive the most up-to-date technical information for project development please refer to your LT Company manager.
Technical Specifications
Technical Data
| Lumen maintenance | L70 @ 50000 B Hours |
| Photo biological Safety | RG0 |
| Electrical Insulation Class | Class 1 |
| IP Rating | IP66 |
| Surge rating | 20KV with SPD |
| Driver Placement | Integral |
| Driver Type | Constant Current |
| Rated I/P Voltage | 220V- 240 Vac |
| PF | >0.95 |
| THD | <10% |
| IK Rating | IK 05 |
| Operating ambient Temp | 0 to 50 Degree C |
| Operating voltage range | 140 VAC - 275 VAC |

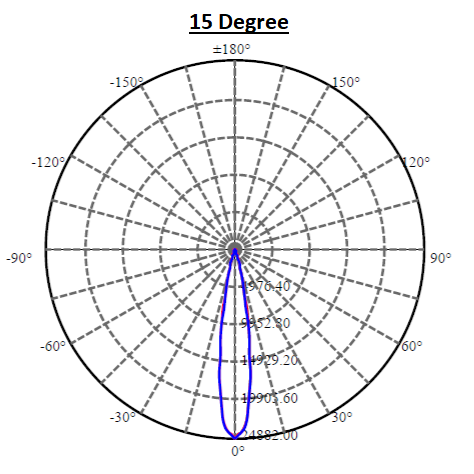

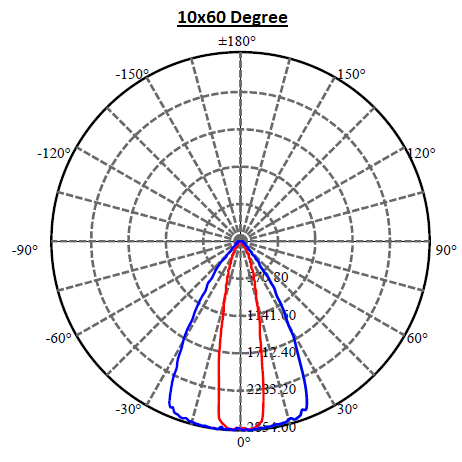

| Beam angle | 10,15,30,45,60, 10X30,10X60, 30X60 |
Features
- Heat Resistance Toughened glass and PMMA secondary lens for effective wall wash distribution
- Corrosion resistance weather proof polyester powder coated finish using Nano Technology.
- Extruded Aluminum housing with PDC end caps for better thermal management
- High efficiency driver with necessary safety protections along with additional 20KV SPD.
Application Areas
OUTDOOR:- Facade walls, Artwork ,Art galleries, Garden walls, Monument, Historical structures, Green walls and other environments
