STEP LINEAR
RECESS MOUNT

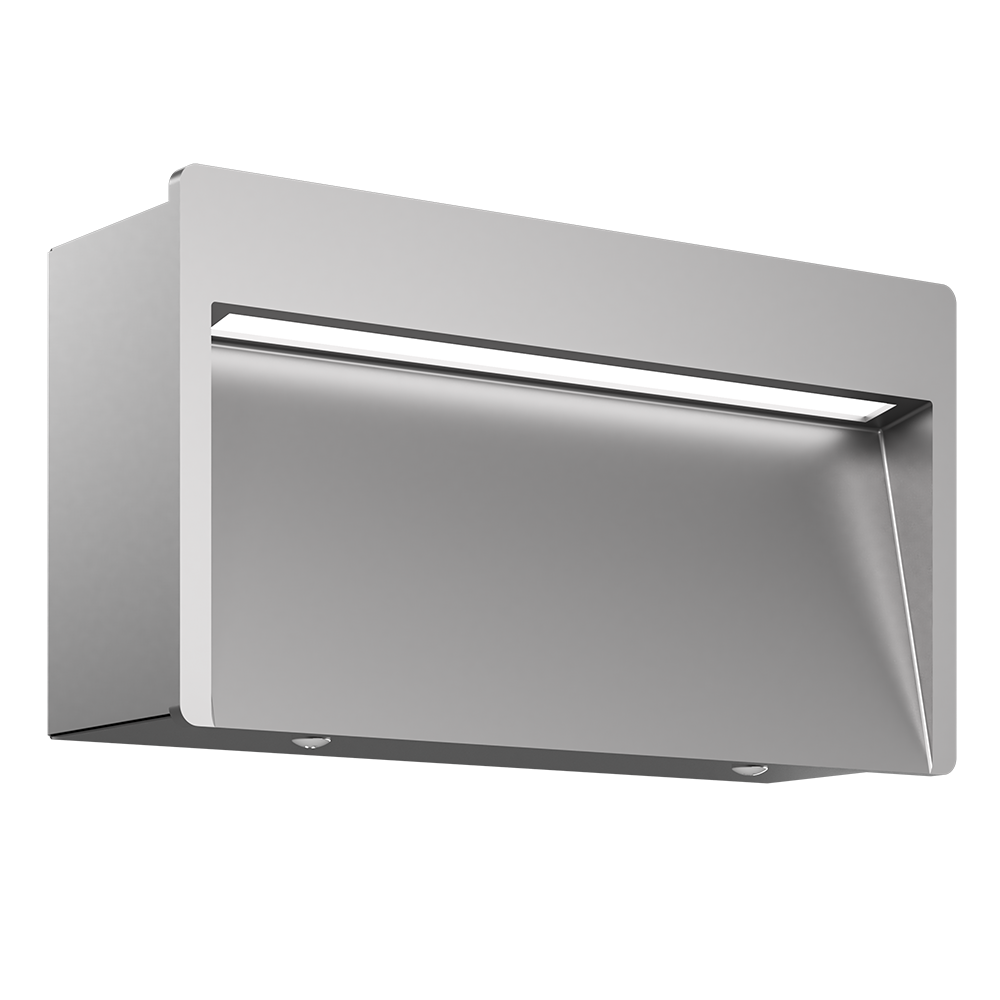

Step linear Recess is an outdoor architectural light which will lead the step ahead
Colors:
Wattage:
CCT:
Application Areas
Office: Outdoor:- Path ways, walk overs etc..
Product Configuration / Application Images
In case of additional questions - please ask below:
Our lighting designers and sales engineers are ready to support your project specifications.
Due to the constant renewal of our model range and improving technical characteristics the technical information can slightly differ from the latest version. To receive the most up-to-date technical information for project development please refer to your LT Company manager.
Technical Specifications
Technical Data
| Lumen maintenance | L70 @ 50K Hours |
| Electrical Insulation Class | Class 1 |
| IP Rating | IP66 |
| Driver Placement | Integral |
| Driver Type | Constant Current |
| Rated I/P Voltage | 220V- 240 Vac |
| Rated I/P Current | 0.05A@12W |
| PF | >0.90 |
| IK Rating | IK 06 |
| Operating ambient Temp | 0 to 50 Degree C |
| Surge Rating | 20KV with SPD |
| Product Weight | 1 Kg |
| Input Voltage Range | 140 VAC - 275 VAC |
| MacAdam Value | <5 SDCM |
Features
- Corrosion resistance Powder coated finish using Nano Technology.
- High efficiency driver with necessary safety protections along with additional 20KV SPD
- Pressure Die cast Aluminum housing for optimal thermal conductivity.
- UV stabilized injection molded PC diffuser
Application Areas
Outdoor:- Path ways, walk overs etc..
