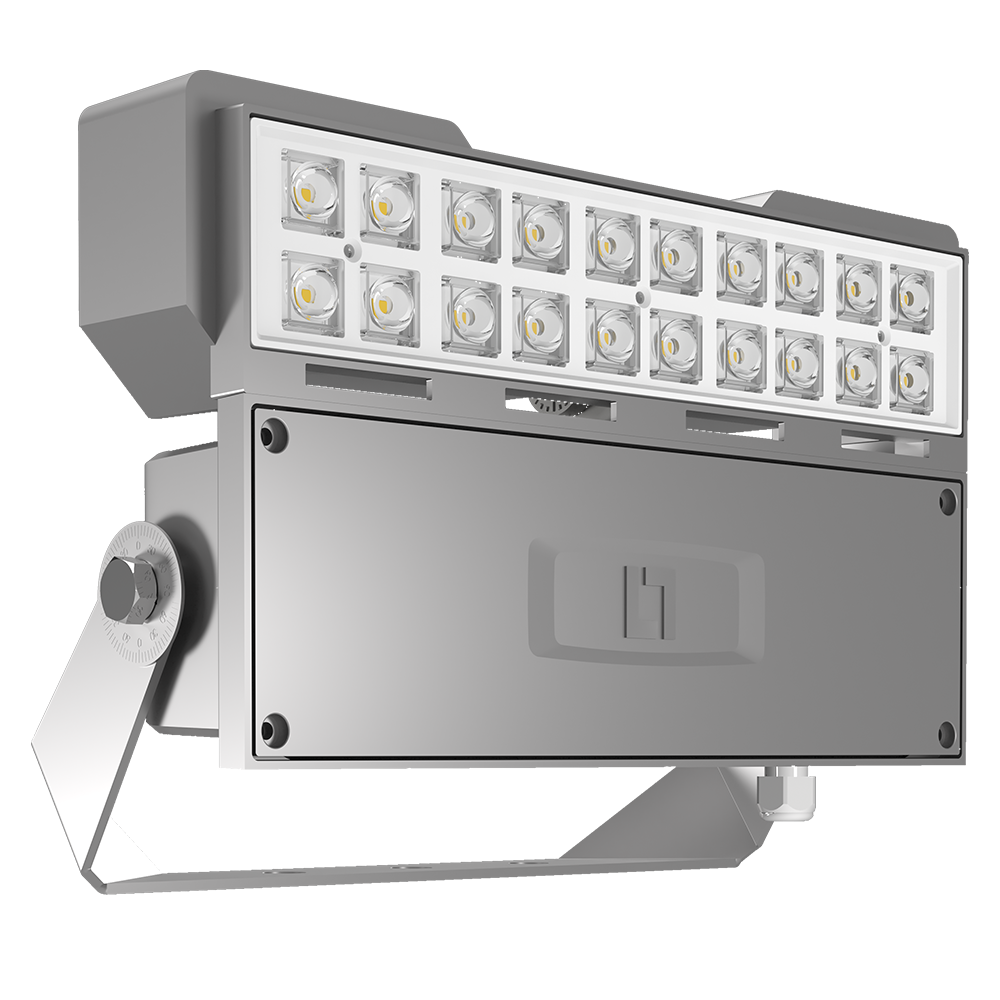

TRANSFORMER T2 1M FL
CRADLE MOUNT FLOOD LIGHT
TRANSFORMER T2 1M IS AN OUTDOOR ARCHITECTURAL LED FLOOD LIGHT WITH UNIQUE DESIGN & INNOVATIVE TECHNOLOGY SUITABLE FOR VARIUS FACADE LIGHTING APPLICATIONS.
Colors:
Wattage:
CCT:
Application Areas
Office: Outdoor:- Structural Facade, sculptures, Heritage Monuments, Architectural spaces & other environments
Product Configuration / Application Images
In case of additional questions - please ask below:
Our lighting designers and sales engineers are ready to support your project specifications.
Due to the constant renewal of our model range and improving technical characteristics the technical information can slightly differ from the latest version. To receive the most up-to-date technical information for project development please refer to your LT Company manager.
Technical Specifications
Technical Data
| Lumen maintenance | L70 @ 50K Hours |
| Electrical Insulation Class | Class 1 |
| IP Rating | IP66 |
| Driver Placement | Integral |
| Driver Type | Constant Current |
| Rated I/P Voltage | 220V- 240 VAC |
| Rated I/P Current | 0.32@75W |
| PF | >0.95 |
| IK Rating | IK 08 |
| Operating ambient Temp | 0 to 50 Degree C |
| Surge Rating | 20KV with SPD |
| Product weight | 3 Kg |
| Input Voltage Range | 100VAC - 300 VAC |

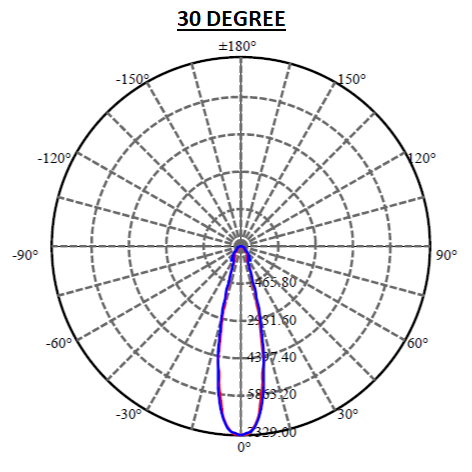

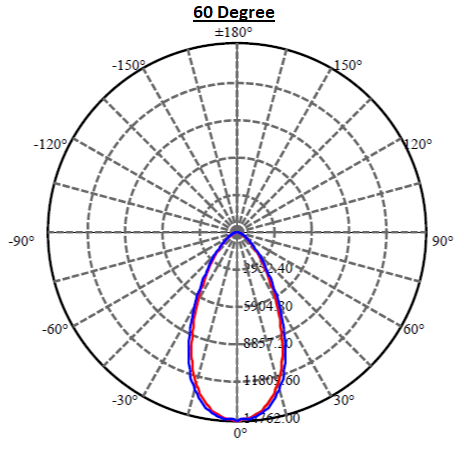

| Optic Beam Angle (Mono colour) | 30/60/90 Degree |
| Optic Beam Angle (RGBW) | 30/60 Degree |
| MacAdam Value | <5 SDCM |
Features
- Corrosion resistance Powder coated finish using Nano Technology.
- High efficiency driver with necessary safety protections along with external 20KV SPD
- Pressure Die Cast Aluminum alloy housing for optimal thermal management.
- Specially formulated injection molded PC compounded lens cover for good impact resistance.
- RGBW version compatible for DMX512/RDM controller with LILO connector.
Application Areas
Outdoor:- Structural Facade, sculptures, Heritage Monuments, Architectural spaces & other environments
