TUNE 56
SURFACE MOUNT

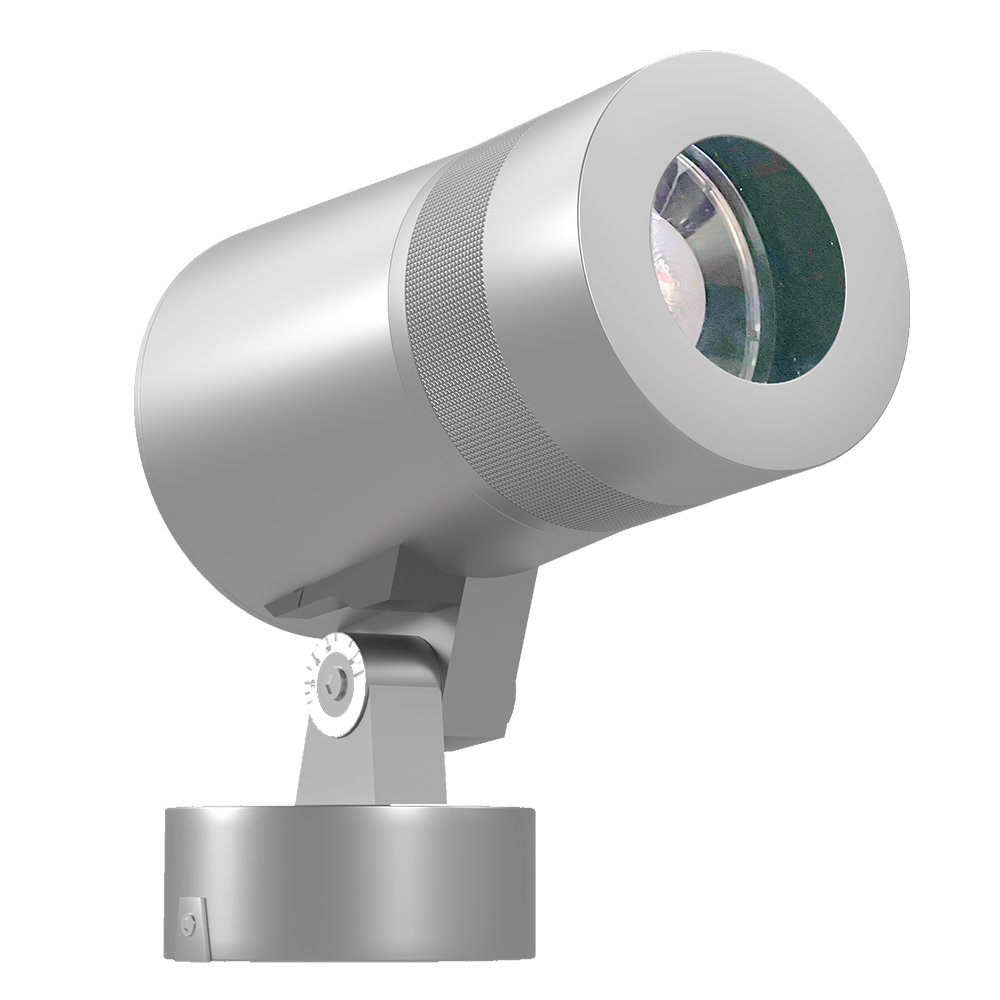

PROJECTOR MID SURFACE is an outdoor architectural light which is powerful to give a perfect light punch.
Colors:
Wattage:
CCT:
Application Areas
Office: Outdoor:- Path ways, walk overs, etc.
Product Configuration / Application Images
In case of additional questions - please ask below:
Our lighting designers and sales engineers are ready to support your project specifications.
Due to the constant renewal of our model range and improving technical characteristics the technical information can slightly differ from the latest version. To receive the most up-to-date technical information for project development please refer to your LT Company manager.
Technical Specifications
Technical Data
| Lumen maintenance | L70 @ 50000 B Hours |
| Electrical Insulation Class | Class 1 |
| IP Rating | IP66 |
| Driver Placement | Integral |
| Driver Type | Constant Current |
| Rated I/P Voltage | 220V- 240 VAC |
| Rated I/P Current | 0.025A@6W |
| PF | >0.90 |
| IK Rating | IK 08 |
| Operating Ambient Temp | -20 to +40 Degree C |
| Optic Beam Angle | 15-60 Degree Adjustable |
| Surge Rating | 20KV with SPD |
| Input Voltage Range | 140 VAC - 270 VAC |
Features
- Corrosion resistance powder coated finish using Nano Technology
- High efficiency driver with necessary safety protections along with additional 20KV SPD
- Pressure die cast aluminum housing for optimal thermal conductivity
- Heat resistant toughened glass cover with secondary PMMA lens
- Adjustable beam angles from 15° to 60°
Application Areas
Outdoor:- Path ways, walk overs, etc.
