TUNE 75

SURFACE MOUNT

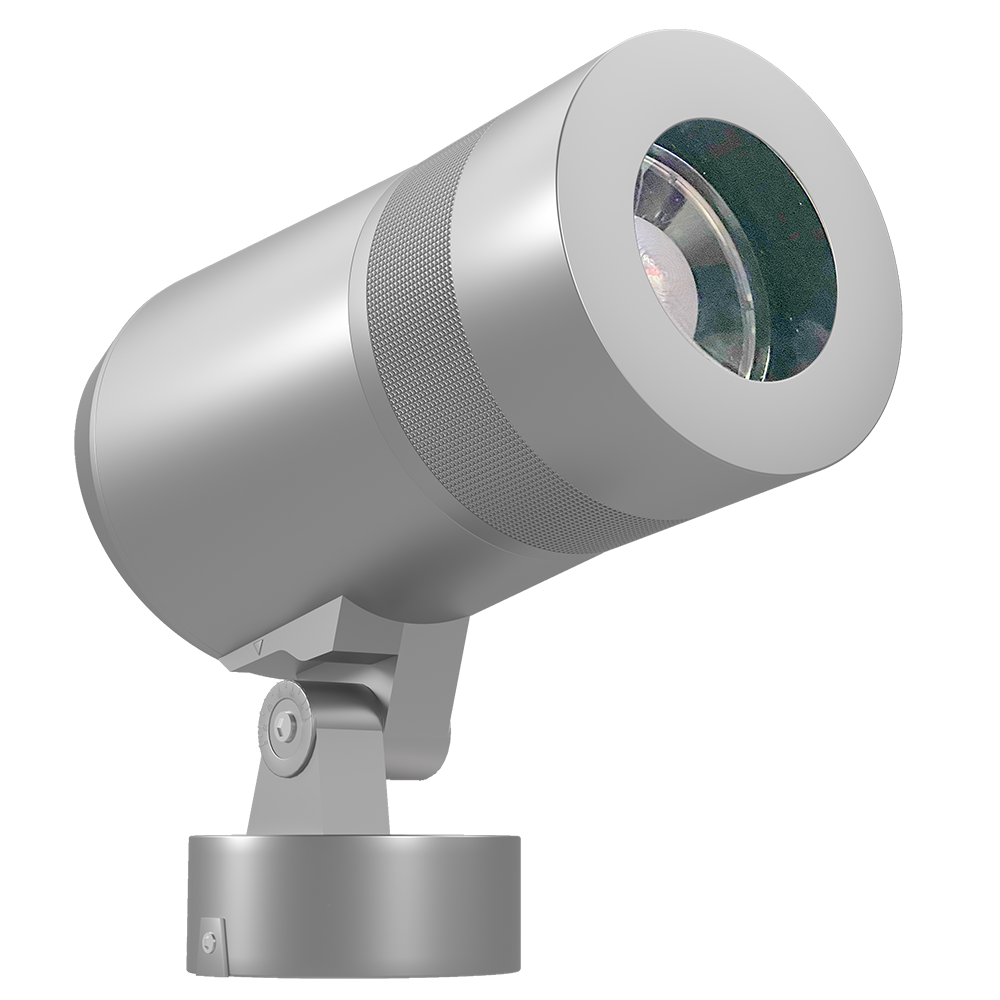

TUNE 75 SURFACE is an outdoor architectural spot light with flexibility to simply zoom and adjust the desired beam angle.

Colors:

Wattage:

CCT:

Application Areas

Office: Outdoor:- Path ways, walk overs etc..

Product Configuration / Application Images

In case of additional questions - please ask below:

Our lighting designers and sales engineers are ready to support your project specifications.

Due to the constant renewal of our model range and improving technical characteristics the technical information can slightly differ from the latest version. To receive the most up-to-date technical information for project development please refer to your LT Company manager.

Technical Specifications

Technical Data

Lumen maintenance	L70 @ 50000 B Hours
Electrical Insulation Class	Class 1
IP Rating	IP66
Driver Placement	Integral
Driver Type	Constant Current
Rated I/P Voltage	220V- 240 VAC
Rated I/P Current	0.05A@12W
PF	>0.90
IK Rating	IK 08
Operating ambient Temp	-20 to +40 Degree C
Surge Rating	20KV with SPD
Input Voltage Range	140 VAC - 270 VAC

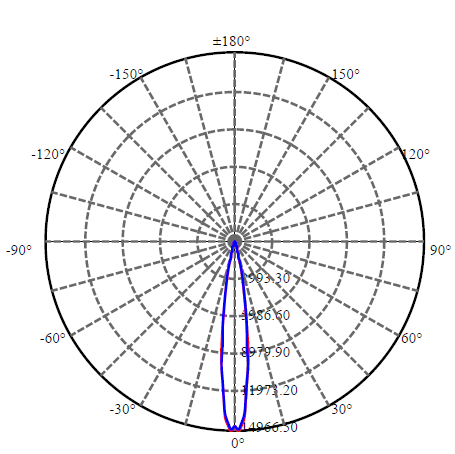

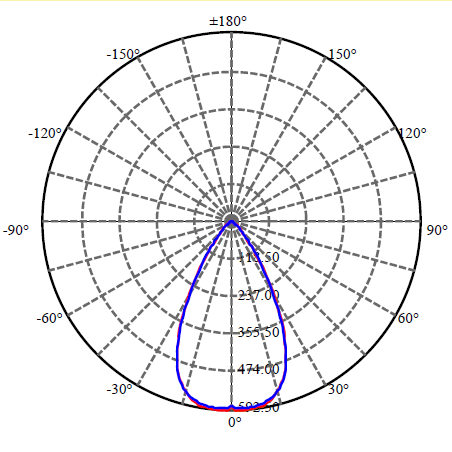

Optic Beam Angle	15-60 degree Zoomable

Features

Corrosion resistance Powder coated finish using Nano Technology.
High efficiency driver with necessary safety protections along with additional 20KV SPD
Pressure Die cast Aluminum housing for optimal thermal conductivity.
Heat resistance toughened glass cover with secondary PMMA lens
Adjustable Beam Angles from 15 to 60 degree
