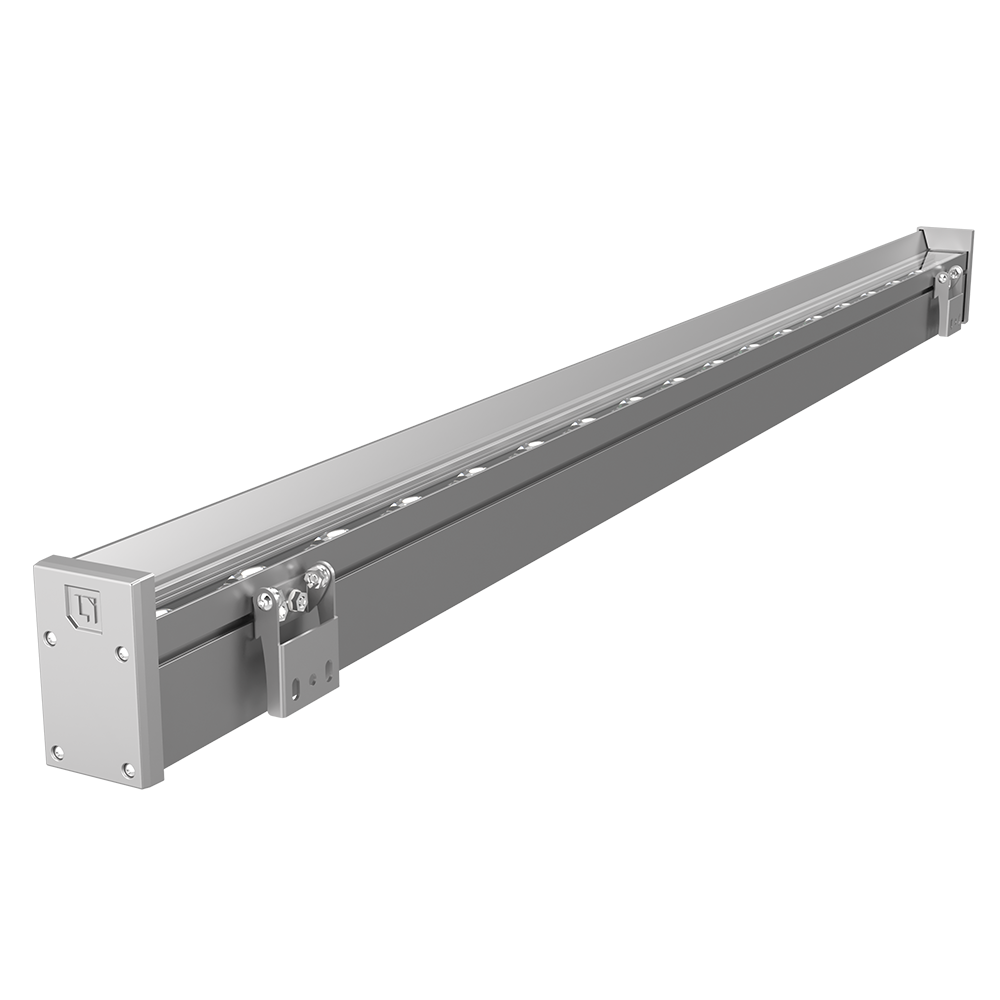

WALL GRAZER

SURFACE MOUNT

Wall grazing is used to illuminate a special architecture surface, to make it radiate with light. This is specially useful when we need to highlight texture, or any other kind of material.

Colors:

Wattage:

CCT:

Length:

Application Areas

Office: OUTDOOR:- Facade walls, Artwork ,Art galleries, Garden walls, Monument, Historical structures, Green walls and other environments

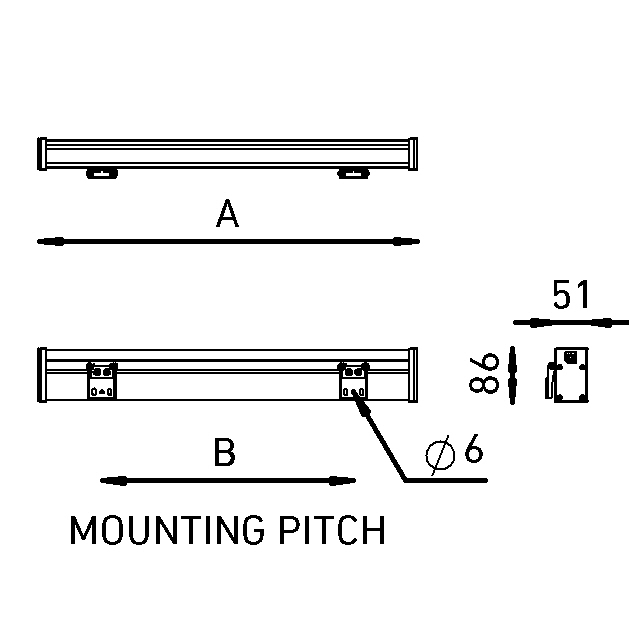

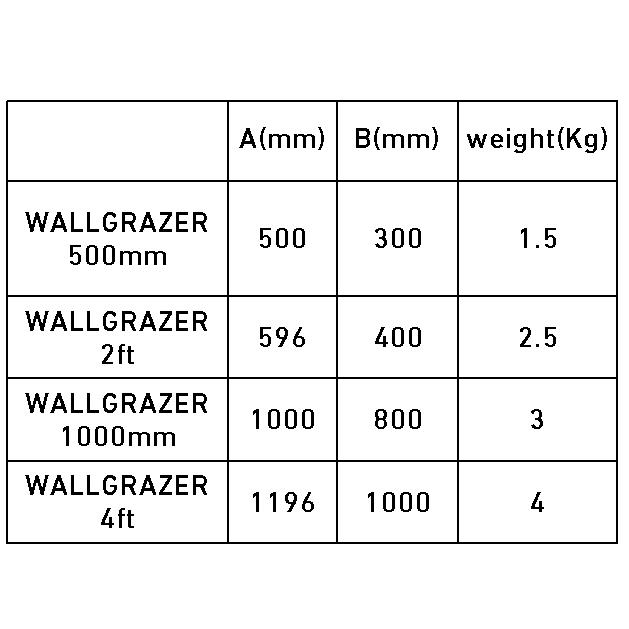

Product Configuration / Application Images

In case of additional questions - please ask below:

Our lighting designers and sales engineers are ready to support your project specifications.

Due to the constant renewal of our model range and improving technical characteristics the technical information can slightly differ from the latest version. To receive the most up-to-date technical information for project development please refer to your LT Company manager.

Technical Specifications

Technical Data

Lumen maintenance	L70 @ 50K Hours
Photo biological Safety	RG0
Electrical Insulation Class	Class 1
IP Rating	IP66
Surge rating	20KV with SPD
Driver Placement	Integral
Driver Type	Constant Current
Rated I/P Voltage	220V- 240 Vac
PF	>0.95
THD	<10%
IK Rating	IK 05
Operating ambient Temp	0 to 50 Degree C

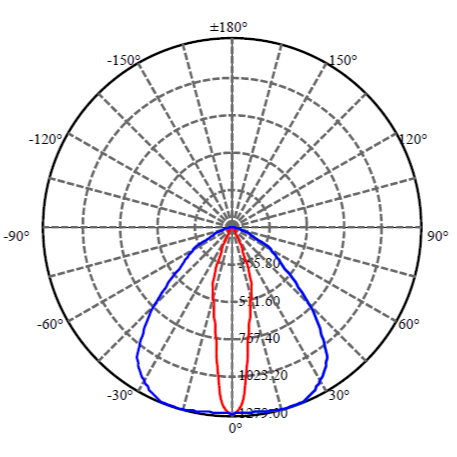

Optics	10X90 Degree Elliptical beam
MacAdam Value	<5 SDCM

Features

Tempered glass and PC lens optics for effective Elliptical beam wall graze distribution
Corrosion resistance with special Powder coated finish using Nano Technology.
Extruded Aluminum housing for better thermal management
High efficiency driver with necessary safety protections along with additional 20KV SPD.
