BASE

Smart and bright

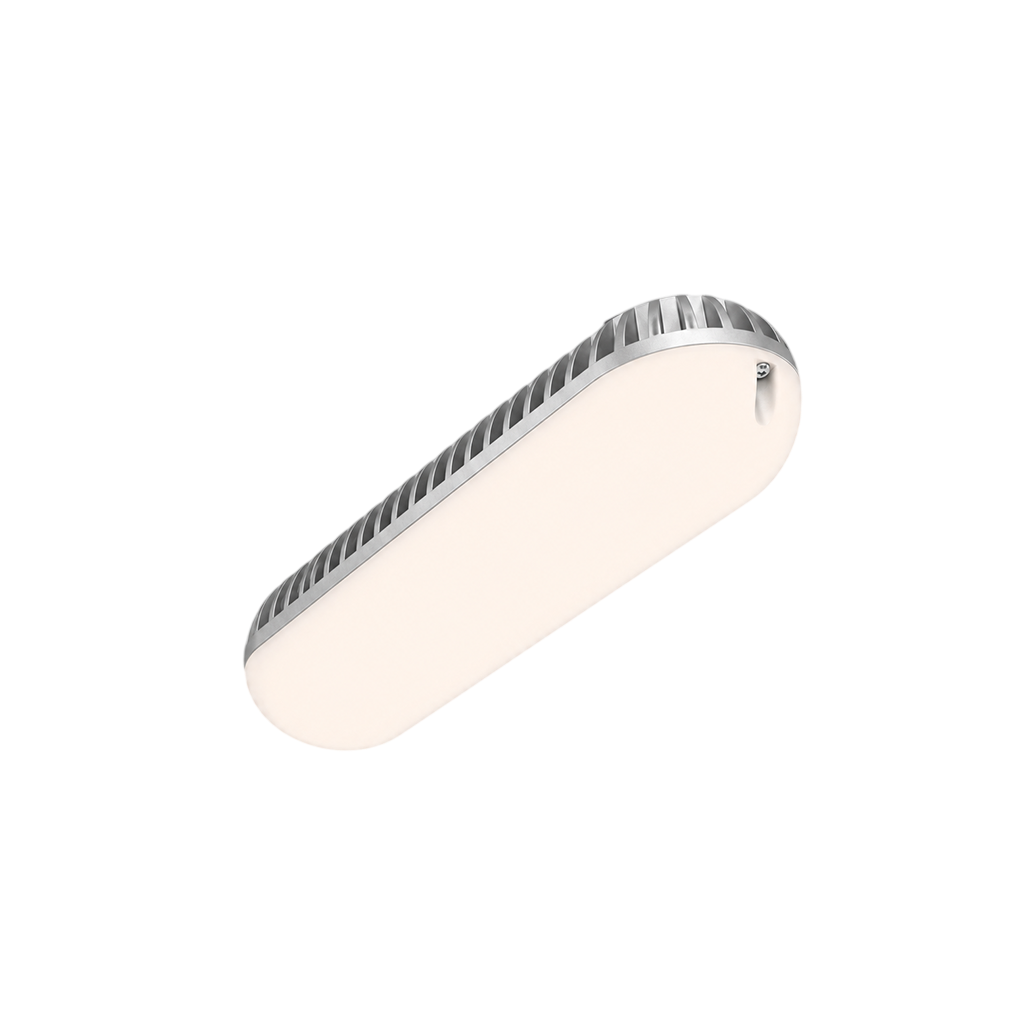

BASE is a Bulkhead Surface mounted LED luminaire which is a best solution for illuminating workshops, parking lots and warehouses

Colors:

Wattage:

CCT:

Application Areas

Office: Industries: Work shops, Warehouse, Parking Garage etc...

Product Configuration / Application Images

In case of additional questions - please ask below:

Our lighting designers and sales engineers are ready to support your project specifications.

Due to the constant renewal of our model range and improving technical characteristics the technical information can slightly differ from the latest version. To receive the most up-to-date technical information for project development please refer to your LT Company manager.

Technical Specifications

Technical Data

Lumen maintenance	L70 @ 50K Hours
Electrical Insulation Class	Class 1
IP Rating	IP65
Driver Placement	Integral
Driver Type	Constant Current
Rated I/P Voltage	220V- 240 Vac
Rated I/P Current	0.05A@12W
PF	>0.90
IK Rating	IK 08
Operating ambient Temp	0 to 50 Degree C
Product Weight	1.8 kg
Input voltage Range	140 VAC - 270 VAC
Surge Rating	6 KV SPD

Features

Opal diffuser with silicon gasket to ensure ingress protection against moisture & Dust
Pressure Die cast Aluminum housing for optimal thermal conductivity.
Corrosion resistance Powder coated finish using Nano Technology.
High efficiency driver with necessary safety protections along with 6 KV SPD
