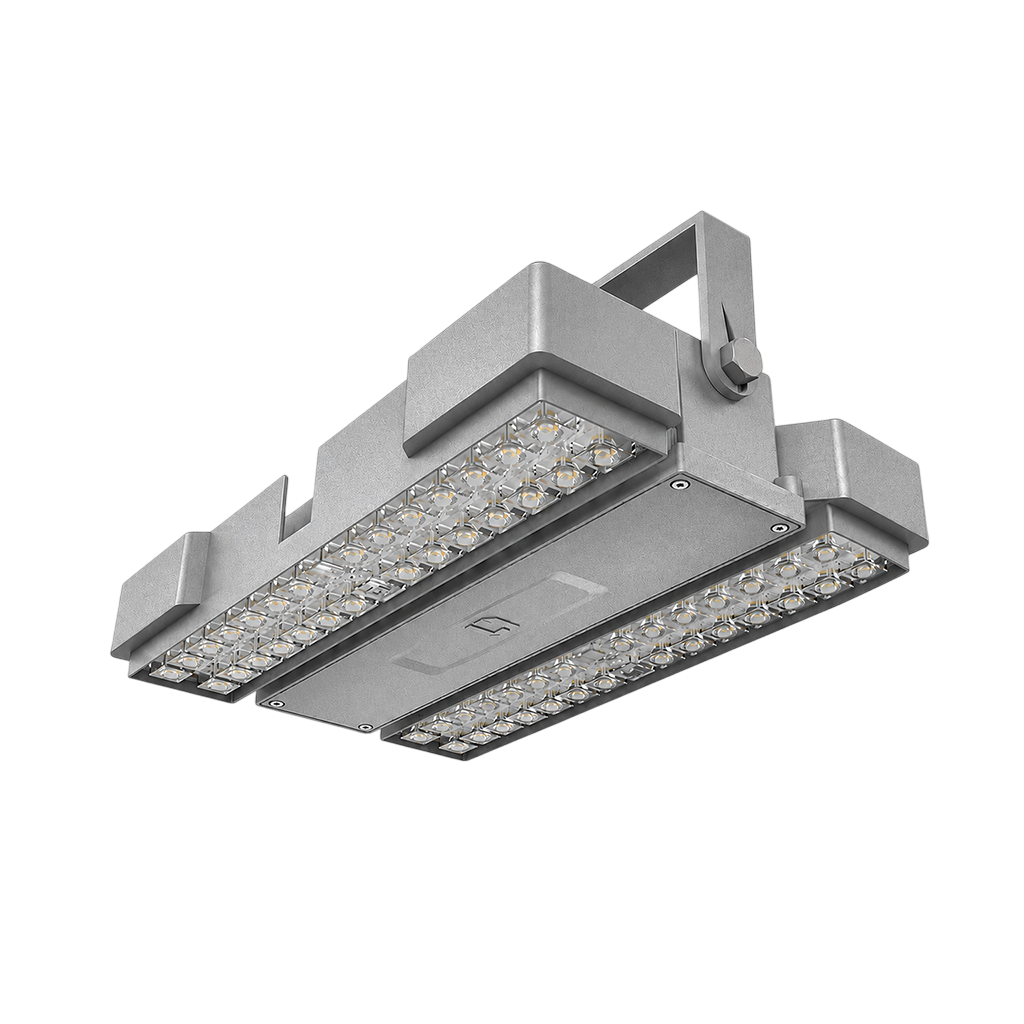

TRANSFORMER G20 C

UNDER WATER RECESS LUMINAIRE

Transformer G20 is a powerful high efficient LED high bay which is engineered for greater thermal reliability for sustaining high maintenance.

Colors:

Wattage:

CCT:

Application Areas

Office: COLD STORAGE APPLICATION

Product Configuration / Application Images

In case of additional questions - please ask below:

Our lighting designers and sales engineers are ready to support your project specifications.

Due to the constant renewal of our model range and improving technical characteristics the technical information can slightly differ from the latest version. To receive the most up-to-date technical information for project development please refer to your LT Company manager.

Technical Specifications

Technical Data

Lumen maintenance	L70 @ 50K Hours
Electrical Insulation Class	Class 1
IP Rating	IP66
Driver Placement	Integral
Driver Type	Constant Current
Rated I/P Voltage	220V- 240 Vac
Rated I/P Current	0.73A@170W
PF	>0.95
IK Rating	IK 08
Operating ambient Temp	-40 to 55 Degree C

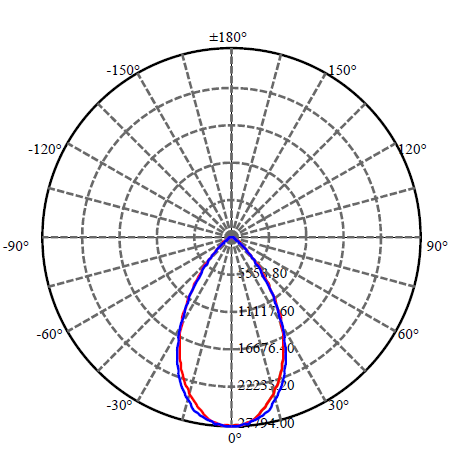

Optic Beam Angle	10/30/60/90 Degree
Surge Rating	20KV with SPD
Product Weight	4 Kg
Input Voltage Range	100 VAC - 300 VAC

Features

Corrosion resistance Powder coated finish using Nano Technology.
High efficiency driver with necessary safety protections along with 20 KV SPD
Pressure Die cast Aluminum housing for optimal thermal conductivity.
Specially formulated injection molded PC compounded lens cover for good impact resistance.
