ORBIS

Illuminating Life Intelligently

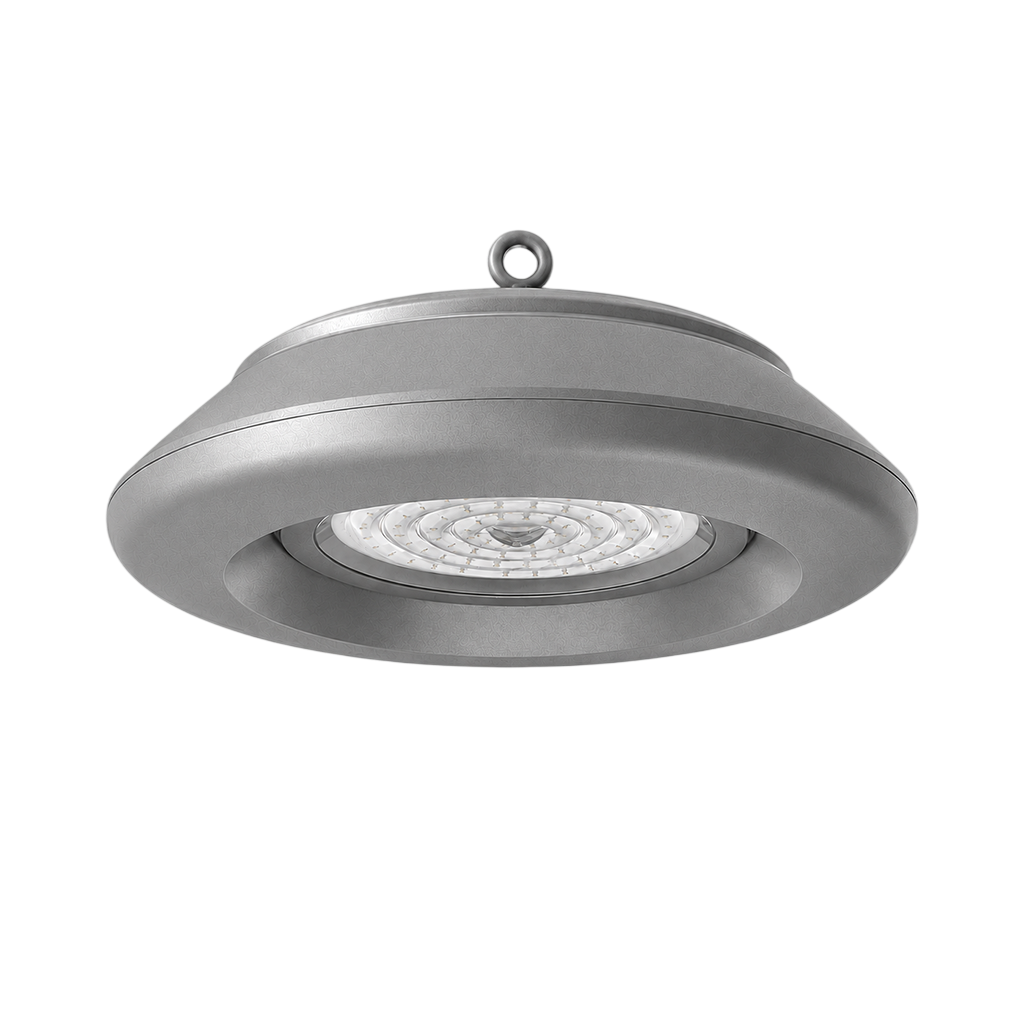

ORBIS is an Industrial Highbay LED light with reliable and robust housing structure which in turn helps to maximize inherent LED advantage of energy saving combined with long life.

Colors:

Wattage:

CCT:

Application Areas

Office: Industries: Work shops, Warehouse, Parking Garage etc...

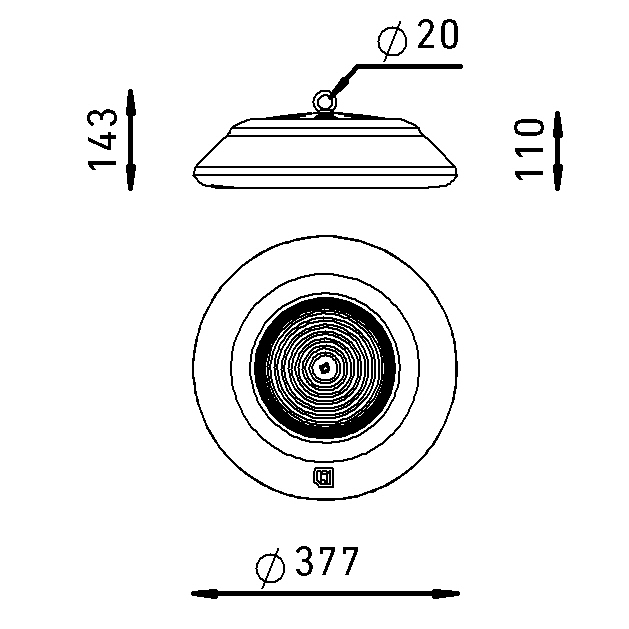

Product Configuration / Application Images

In case of additional questions - please ask below:

Our lighting designers and sales engineers are ready to support your project specifications.

Due to the constant renewal of our model range and improving technical characteristics the technical information can slightly differ from the latest version. To receive the most up-to-date technical information for project development please refer to your LT Company manager.

Technical Specifications

Technical Data

Lumen maintenance	L70 @ 50K Hours
Electrical Insulation Class	Class 1
IP Rating	IP66
Surge rating	20KV with SPD
Driver Placement	Integral
Driver Type	Constant Current
Rated I/P Voltage	220V- 240 Vac
Rated I/P Current	0.54A@125W
THD	<10% @ rated voltage
IK Rating	IK 08
Operating ambient Temp	0 to 50 Degree C
Input voltage Range	100 VAC - 300 VAC
Product weight	4 Kg

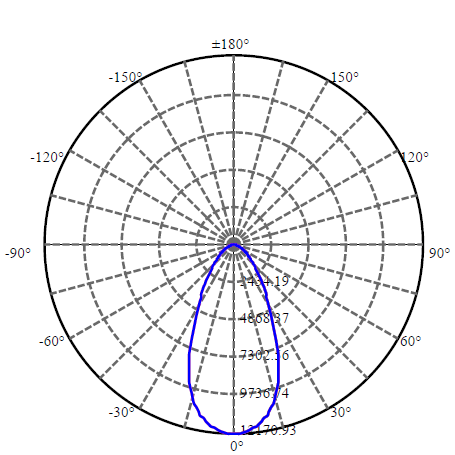

Beam angle	60/90 Degree

Features

High efficiency encapsulated and isolated driver with necessary safety protections along with 20 KV SPD
Corrosion resistance Powder coated using Nano Technology
UV stabilized injection moulded PC lens allows good optical light transmission & spread
PDC Aluminum Alloy housing for ensuring optimum thermal management
