TRANSFORMER T2 CANOPY
UNDER WATER RECESS LUMINAIRE

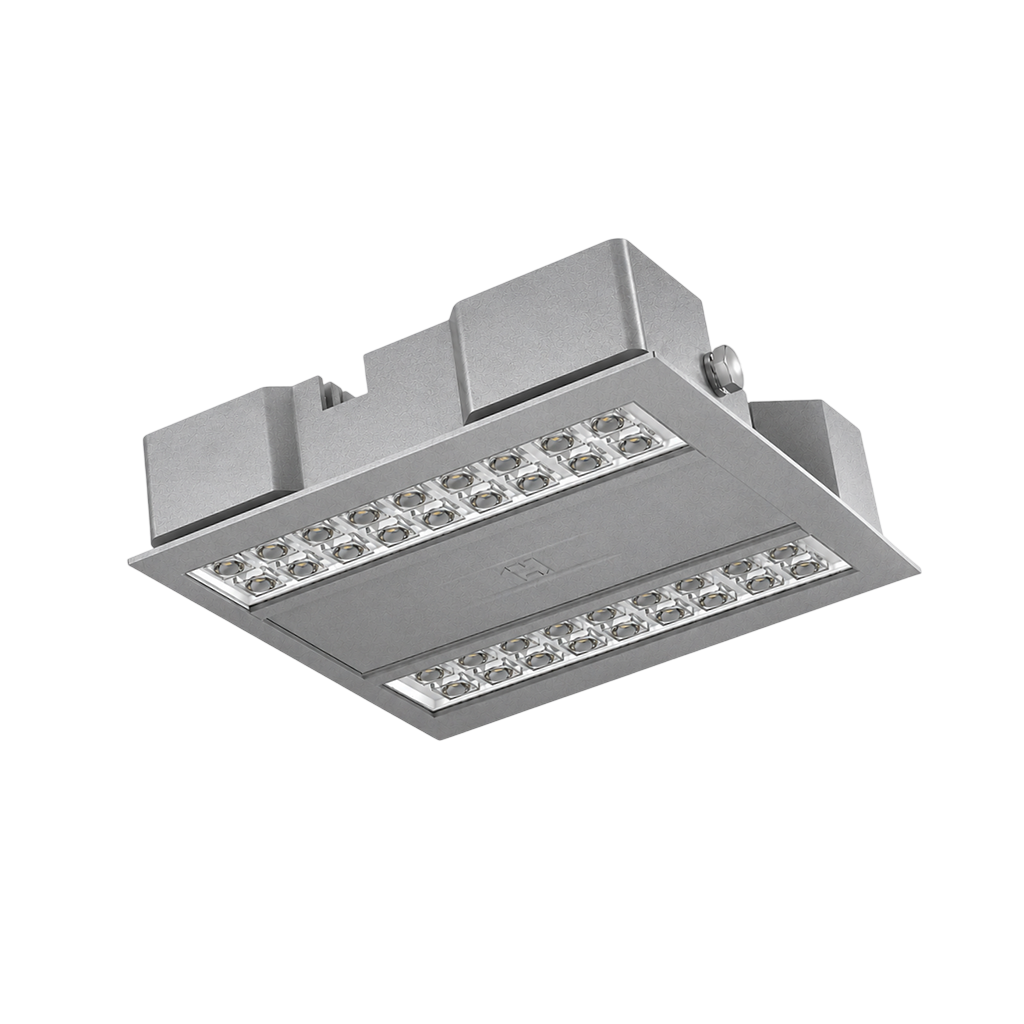

TRANSFORMER T2 is a Compact High efficient Modular LED Under Canopy light which is engineered for greater thermal Reliability and sustained light maintenance.
Colors:
Wattage:
CCT:
Application Areas
Office: COLD STORAGE APPLICATION

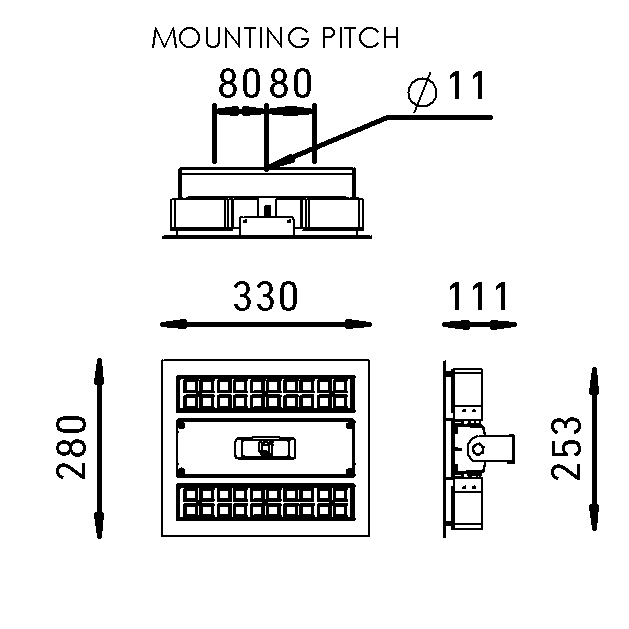

Product Configuration / Application Images
In case of additional questions - please ask below:
Our lighting designers and sales engineers are ready to support your project specifications.
Due to the constant renewal of our model range and improving technical characteristics the technical information can slightly differ from the latest version. To receive the most up-to-date technical information for project development please refer to your LT Company manager.
Technical Specifications
Technical Data
| Lumen maintenance | L70 @ 50K Hours |
| Electrical Insulation Class | Class 1 |
| IP Rating | IP66 |
| Driver Placement | Integral |
| Driver Type | Constant Current |
| Rated I/P Voltage | 220V- 240 Vac |
| Rated I/P Current | 0.73A@170W |
| PF | >0.95 |
| IK Rating | IK 08 |
| Operating ambient Temp | -40 to 55 Degree C |

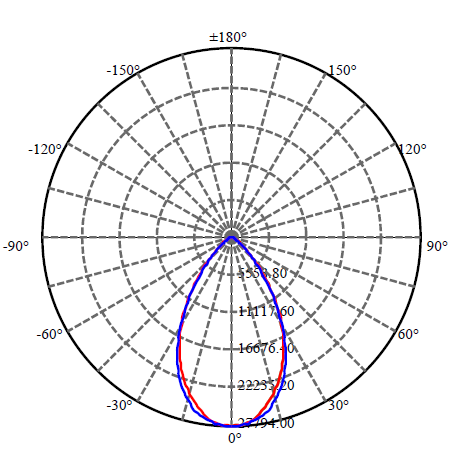

| Optic Beam Angle | 10/30/60/90 Degree |
| Surge Rating | 20KV with SPD |
| Product Weight | 4 Kg |
| Input Voltage Range | 100 VAC - 300 VAC |
Features
- Corrosion resistance Powder coated finish using Nano Technology.
- High efficiency driver with necessary safety protections along with 20 KV SPD
- Pressure Die cast Aluminum housing for optimal thermal conductivity.
- Specially formulated injection molded PC compounded lens cover for good impact resistance.
Application Areas
COLD STORAGE APPLICATION
