DISC MIN
Brighter moments for dark nights.

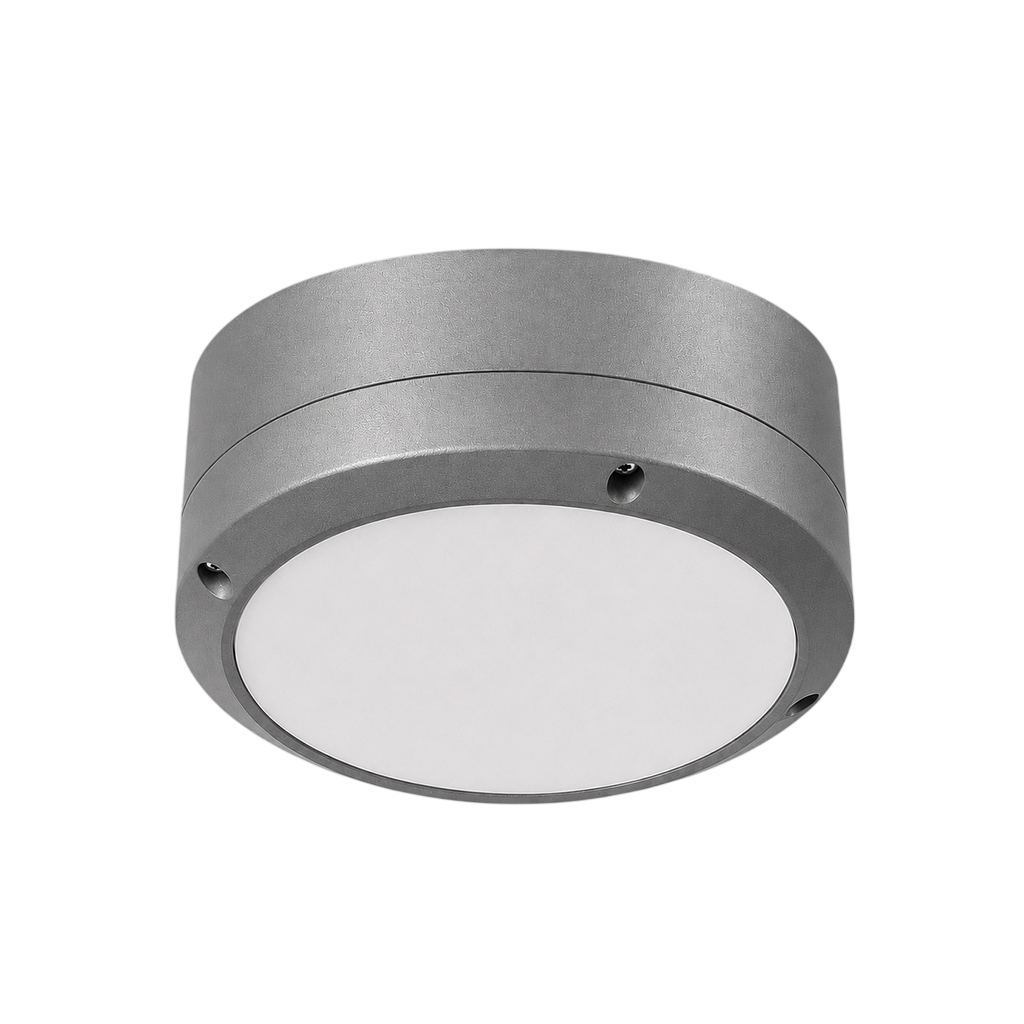

DISC is a round surface mounted LED luminaire which allows the space to glow, providing a modern touch to the space
Colors:
Wattage:
CCT:
Application Areas
Office: Industries : Work shops, Warehouse, parking garage, Stairs etc..
Product Configuration / Application Images
In case of additional questions - please ask below:
Our lighting designers and sales engineers are ready to support your project specifications.
Due to the constant renewal of our model range and improving technical characteristics the technical information can slightly differ from the latest version. To receive the most up-to-date technical information for project development please refer to your LT Company manager.
Technical Specifications
Technical Data
| Lumen maintenance | L70 @ 50K Hours |
| Photo biological Safety | RG0 |
| Electrical Insulation Class | Class 1 |
| IP Rating | IP65 |
| Surge rating | 6KV with SPD |
| Driver Placement | Integral |
| Driver Type | Constant Current |
| Rated I/P Voltage | 220V- 240 Vac |
| PF | >0.95 |
| THD | <10% |
| IK Rating | IK 08 |
| Operating ambient Temp | 0 to 50 Degree C |
| Input voltage Range | 140 VAC - 275 VAC |
| Product weight | 1.4 Kg |
Features
- High efficiency driver with necessary safety protections along with additional SPD of 6KV
- Corrosion resistance Powder coated using Nano Technology
- Injection molded UV stabilized PC diffused diffuser for even light distribution
- Pressure Die Cast Aluminium alloy housing for better thermal conductivity
Application Areas
Industries : Work shops, Warehouse, parking garage, Stairs etc..
