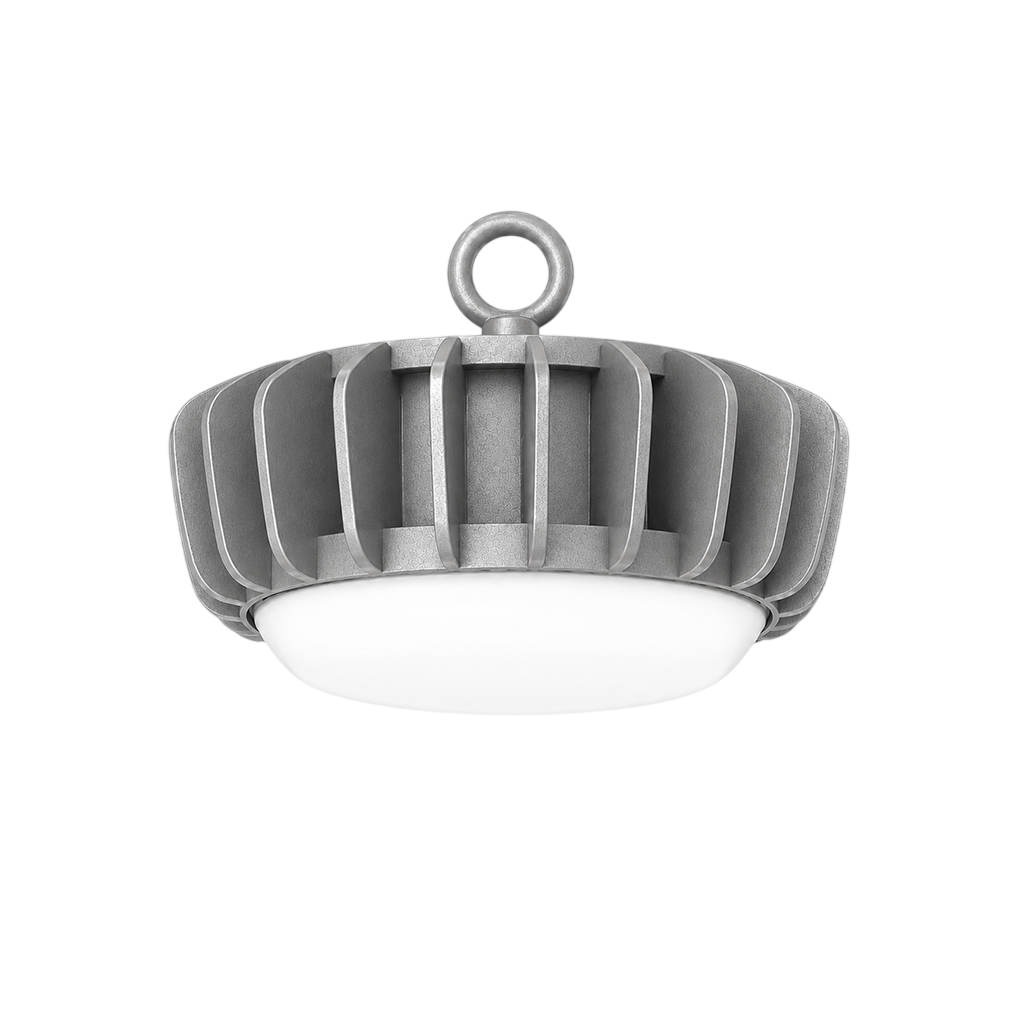

SOL- WELL GLASS
Illuminating Life Intelligently
SOL is a circular diffused Industrial Well glass which is a perfect LED solution for harsh Industrial environmental conditions.
Colors:
Wattage:
CCT:
Application Areas
Office: Industries: Work shops, Warehouse, Parking Garage etc...
Product Configuration / Application Images
In case of additional questions - please ask below:
Our lighting designers and sales engineers are ready to support your project specifications.
Due to the constant renewal of our model range and improving technical characteristics the technical information can slightly differ from the latest version. To receive the most up-to-date technical information for project development please refer to your LT Company manager.
Technical Specifications
Technical Data
| Lumen maintenance | L70 @ 50K Hours |
| Electrical Insulation Class | Class 1 |
| IP Rating | IP66 |
| Driver Placement | Integral |
| Driver Type | Constant Current |
| Rated I/P Voltage | 220V- 240 Vac |
| Rated I/P Current | 0.17A@40W |
| PF | >0.95 |
| IK Rating | IK 08 |
| Operating ambient Temp | 0 to 50 Degree C |
| Product weight | 1.5 Kg |
| Operating voltage range | 140V-270V |
| Surge rating | 6KV with SPD |
Features
- High efficiency encapsulated and isolated driver with necessary safety protections along with 6KV SPD
- Corrosion resistance Powder coated using Nano Technology
- UV stabilized injection molded PC diffuser cover allows good optical light transmission & spread
- PDC Aluminum Alloy housing for ensuring optimum thermal management
Application Areas
Industries: Work shops, Warehouse, Parking Garage etc...
