BLADE
Bright Everyday

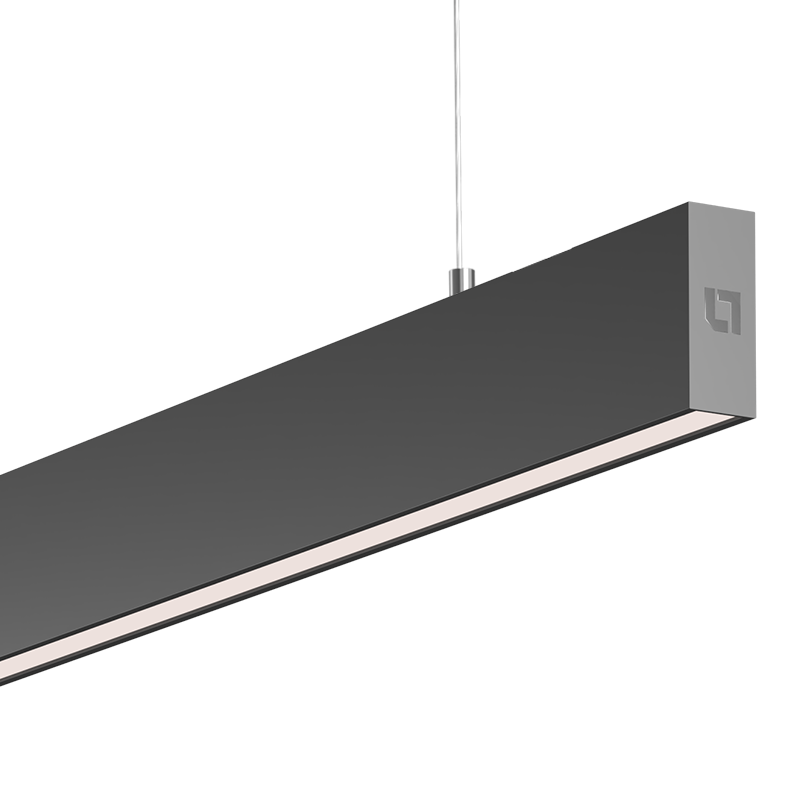

BLADE is a sleek suspended LED linear pendant with an ultra-slim profile perfect for modern indoor decorative lighting.
Colors:
Wattage:
CCT:
Length:
Application Areas
Office: Office: Open offices, lobbies, decorative area , Pelmet spaces and Narrow indoor corridors and other environments.

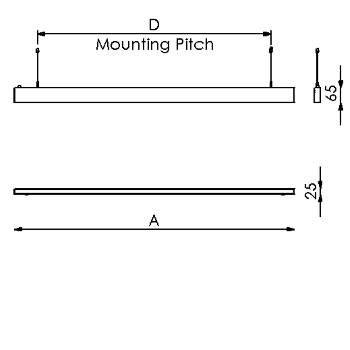

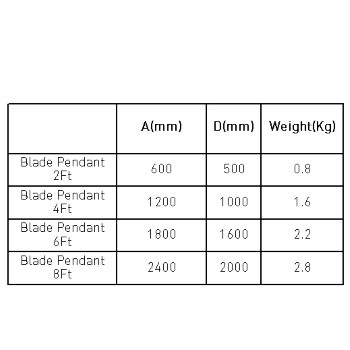

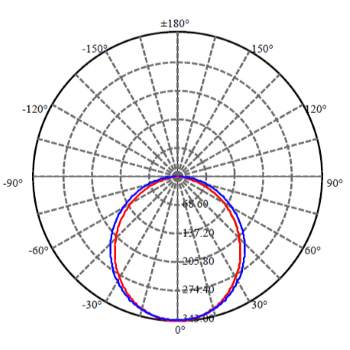

Product Configuration / Application Images
In case of additional questions - please ask below:
Our lighting designers and sales engineers are ready to support your project specifications.
Due to the constant renewal of our model range and improving technical characteristics the technical information can slightly differ from the latest version. To receive the most up-to-date technical information for project development please refer to your LT Company manager.
Technical Specifications
Technical Data
| Lumen maintenance | L70 @ 50K Hours |
| Photo biological Safety | RG0 |
| Electrical Insulation Class | Class 1 |
| IP Rating | IP20 |
| Surge rating | 6KV SPD |
| Driver Placement | Non Integral |
| Driver Type | Constant Current |
| Rated I/P Voltage | 220V - 240 VAC |
| PF | >0.95 |
| THD | <10% |
| Operating ambient Temp | 0 to 35 Degree C |
| IK Rating | IK 02 |
| MacAdam Value | 3 SDCM |
| UGR Value | <19 |
| Wattage | 18W - 48W |
Features
- Extruded Aluminum housing for better thermal management.
- Corrosion resistance with special Powder coated finish using Nano Technology.
- Highly Transmittance diffused diffuser for optimal light visibility.
- High efficiency driver with necessary safety protections along with additional 6KV SPD.
Application Areas
Office: Open offices, lobbies, decorative area , Pelmet spaces and Narrow indoor corridors and other environments.
