CANE SLIM DIFFUSED
Smart and Bright

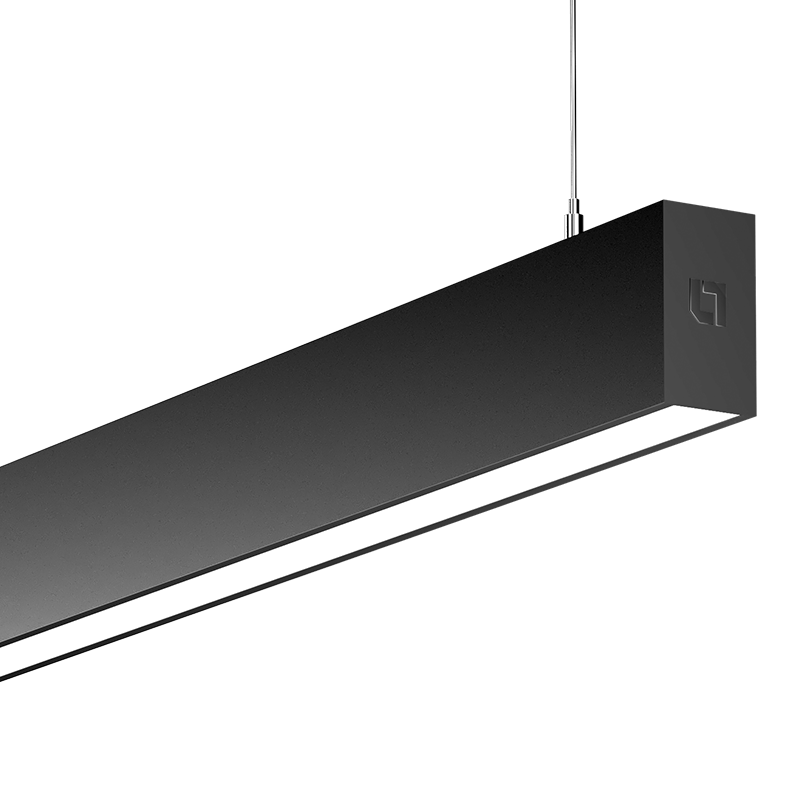

CANE SLIM is a sleek suspended diffused LED linear fixture delivering uniform direct illumination, suitable for individual use or continuous seamless installations.
Colors:
Wattage:
CCT:
Length:
Application Areas
Office: Office: conference rooms, open offices, lobbies, and other environments
Product Configuration / Application Images
In case of additional questions - please ask below:
Our lighting designers and sales engineers are ready to support your project specifications.
Due to the constant renewal of our model range and improving technical characteristics the technical information can slightly differ from the latest version. To receive the most up-to-date technical information for project development please refer to your LT Company manager.
Technical Specifications
Technical Data
| Lumen maintenance | L70 @ 50K Hours |
| Photo biological Safety | RG0 |
| Electrical Insulation Class | Class 1 |
| IP Rating | IP20 |
| Surge Rating | 6KV with SPD |
| Driver Placement | Integral |
| Driver Type | Constant Current |
| Rated I/P Voltage | 220V- 240 VAC |
| Rated I/P Current | 0.12A @27W |
| PF | >0.95 |
| THD | <10%@Rated voltage |
| IK Rating | IK 02 |
| Operating ambient Temp | 0 to 35 Degree C |
| MacAdam Value | 3SDCM |
| URG | <19 |
| Wattage | 12W-48W |
Features
- High transmittance diffused diffuser for optimal light visibility.
- Corrosion resistance with special Powder coated finish using Nano Technology.
- Uniquely designed PDC Aluminum end cap.
- Extruded Aluminum housing for better thermal management.
- High efficiency driver with necessary safety protections along with additional 6KV SPD.
Application Areas
Office: conference rooms, open offices, lobbies, and other environments
