CANE SLIM PRECISE
Smart and Bright

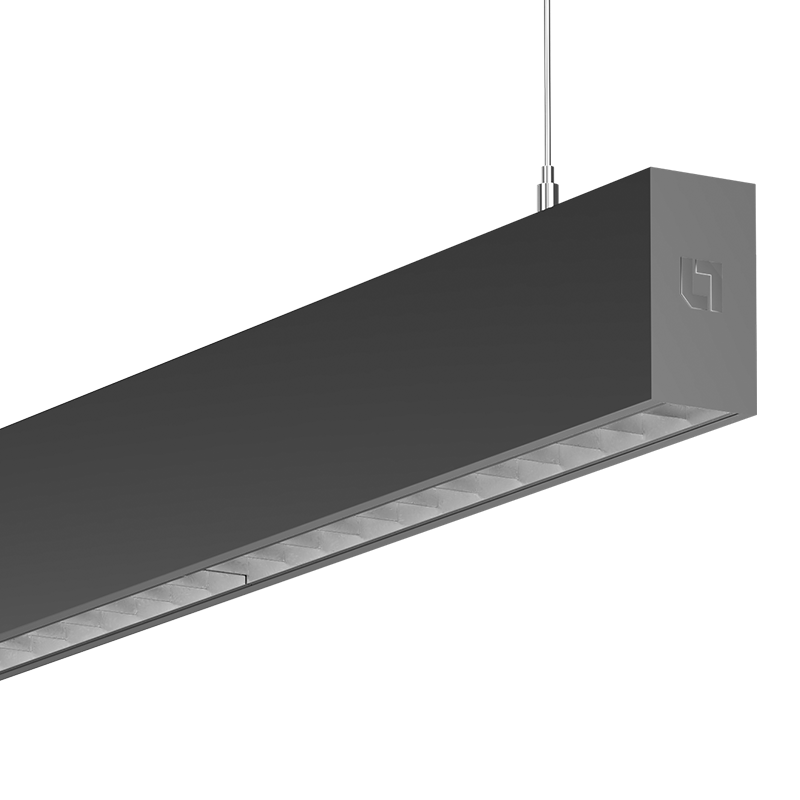

Cane slim is a suspended precise LED Linear Light fixture with standard Direct & Direct- Indirect Illumination which can be installed Individually or continuously for Seamless light line.
Colors:
Wattage:
CCT:
Length:
Application Areas
Office: Office: conference rooms, open offices, lobbies, and other environments

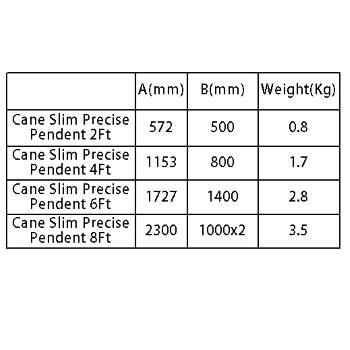

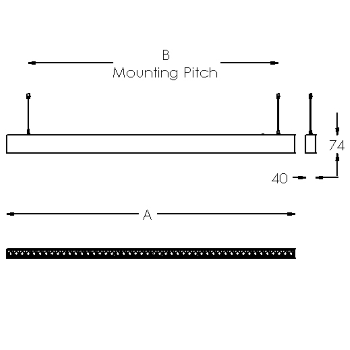

Product Configuration / Application Images
In case of additional questions - please ask below:
Our lighting designers and sales engineers are ready to support your project specifications.
Due to the constant renewal of our model range and improving technical characteristics the technical information can slightly differ from the latest version. To receive the most up-to-date technical information for project development please refer to your LT Company manager.
Technical Specifications
Technical Data
| Lumen maintenance | L70 @ 50K Hours |
| Photo biological Safety | RG0 |
| Electrical Insulation Class | Class 1 |
| IP Rating | IP20 |
| Surge Rating | 6KV with SPD |
| Driver Placement | Integral |
| Driver Type | Constant Current |
| Rated I/P Voltage | 220V- 240 Vac |
| Rated I/P Current | 0.10A @24W |
| PF | >0.95 |
| THD | <10%@Rated voltage |
| IK Rating | IK 02 |
| Operating ambient Temp | 0 to 35 Degree C |
| Optics Beam Angle | 15/30/45/60 deg |
| Operating Voltage Range | 140V - 270V |
| MacAdam Value | 3 SDCM |
| Wattage | 12W-48W |
Features
- Deep recessed lens optics for wide beam light distribution.
- Corrosion resistance with special Powder coated finish using Nano Technology.
- Uniquely designed PDC Aluminum end cap.
- Extruded Aluminum housing for better thermal management.
- High efficiency driver with necessary safety protections along with additional 6KV SPD.
Application Areas
Office: conference rooms, open offices, lobbies, and other environments
