CASK LINEAR
Smart and bright

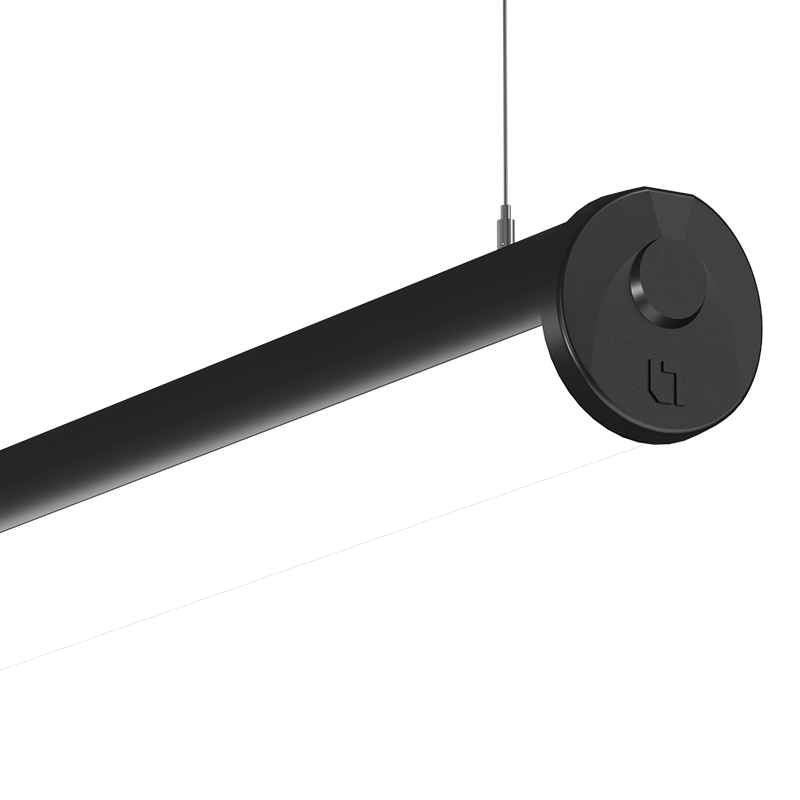

CASK is a linear pendant LED luminaire engineered to deliver high-performance, uniform illumination for conference rooms, open offices, lobbies, and similar modern spaces.
Colors:
Wattage:
CCT:
Length:
Application Areas
Office: Office: conference rooms, open offices, lobbies, and other environments
Product Configuration / Application Images
In case of additional questions - please ask below:
Our lighting designers and sales engineers are ready to support your project specifications.
Due to the constant renewal of our model range and improving technical characteristics the technical information can slightly differ from the latest version. To receive the most up-to-date technical information for project development please refer to your LT Company manager.
Technical Specifications
Technical Data
Rated I/P Voltage220V- 240 Vac
| Lumen maintenance | L70 @ 50K Hours |
| Electrical Insulation Class | Class 1 |
| IP Rating | IP20 |
| Driver Placement | Integral |
| Driver Type | Constant Current |
| Rated I/P Current | 0.11A @24W |
| PF | >0.90 |
| THD | <10%@ rated voltage |
| IK Rating | IK 08 |
| Operating ambient Temp | 0 to 35 Degree C |
| Product Weight | 3.kg |
| Input Voltage Range | 140V - 270V |
| Surge Rating | 6 KV SPD |
| MacAdam Value | 3 SDCM |
| Wattage | 18W-48W |
Features
- UV Stabilized PC Diffuser cover
- Extruded Aluminum Alloy housing for better thermal conductivity.
- Corrosion resistance Powder coated finish using Nano Technology.
- High efficiency driver with necessary safety protections along with 6 KV SPD.
- Uniquely designed PDC aluminum end cap.
Application Areas
Office: conference rooms, open offices, lobbies, and other environments
