CYLINDER G95
The magic of light

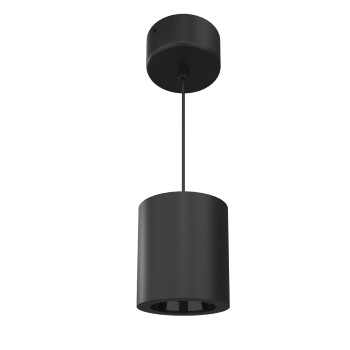

Cylinder is a pendant Circular light which can blend with a variety of room designs and themes.
Colors:
Wattage:
CCT:
Application Areas
Office: Office: Office spaces, Lobbies and corridors
Product Configuration / Application Images
In case of additional questions - please ask below:
Our lighting designers and sales engineers are ready to support your project specifications.
Due to the constant renewal of our model range and improving technical characteristics the technical information can slightly differ from the latest version. To receive the most up-to-date technical information for project development please refer to your LT Company manager.
Technical Specifications
Technical Data
| Lumen maintenance | L70 @ 50K Hours |
| Photo biological Safety | RG0 |
| Electrical Insulation Class | Class 1 |
| IP Rating | IP20 |
| Surge Rating | 6KV With SPD |

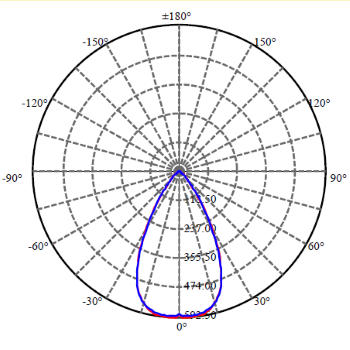

| Optics Beam Angle | 60 (+/-)5 Degree |
| Driver Placement | Integral |
| Driver Type | Constant Current |
| Rated I/P Voltage | 220V - 240 VAC |
| Rated I/P Current | 0.07A @ 15W |
| PF | >0.95 |
| THD | <10% |
| IK Rating | IK 02 |
| Operating ambient Temp | 0 to 35 Degree C |
| MacAdam Value | 3 SDCM |
Features
- Corrosion resistant powder coated finish using Nano Technology.
- Pressure die-cast aluminum housing for optimal thermal conductivity.
- High efficiency flicker-free driver with necessary safety protections along with additional 6KV SPD.
- Anodized deep recessed black reflector for glare-free light.
Application Areas
Office: Office spaces, Lobbies and corridors
