DICE
Designing Dreams

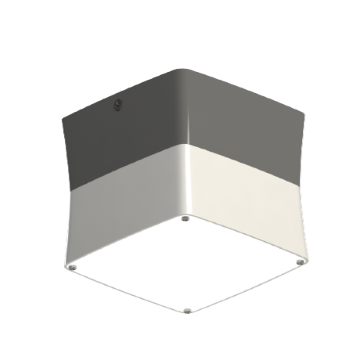

Dice is a Special Square shaped LED Diffused Downlight for uniform Directional lighting of your commercial space
Colors:
Wattage:
CCT:
Application Areas
Office: Office: Office spaces, Lobbies and corridors
Product Configuration / Application Images
In case of additional questions - please ask below:
Our lighting designers and sales engineers are ready to support your project specifications.
Due to the constant renewal of our model range and improving technical characteristics the technical information can slightly differ from the latest version. To receive the most up-to-date technical information for project development please refer to your LT Company manager.
Technical Specifications
Technical Data
| Lumen maintenance | L70 @ 50K Hours |
| Photo biological Safety | RG0 |
| Electrical Insulation Class | Class 1 |
| IP Rating | IP20 |
| Driver Placement | Non Integral |
| Driver Type | Constant Current |
| Rated I/P Voltage | 220V - 240 VAC |
| Rated I/P Current | 0.11A @ 24W |
| PF | >0.95 |
| THD | <10% |
| IK Rating | IK 02 |
| Operating ambient Temp | 0 to 35 Degree C |
| Input Voltage Range | 140V - 270V |
| UGR Rating | <19 |
| MacAdam Value | 3 SDCM |
| Wattage | 12W - 24W |
Features
- Pressure Die cast Aluminum housing with CRCA surface casing for optimal thermal conductivity.
- PS diffuser cover for optimum light transmission.
- Corrosion resistance white Powder coated finish using Nano Technology.
- High efficiency driver with necessary safety protections along with additional 6KV SPD.
Application Areas
Office: Office spaces, Lobbies and corridors
