DLCR
The Light that Embrace the Workspace
A slim, functional surface LED downlight designed for shallow recess depths, ideal for workplace environments.
Colors:
Wattage:
CCT:
Application Areas
Office: Malls, Retail Shops, Offices, Lobbies, Corridors etc.

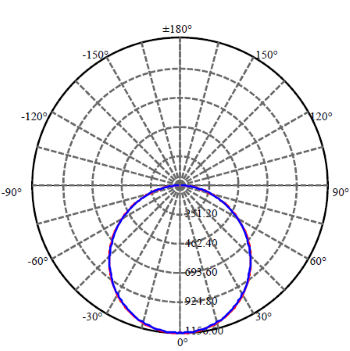

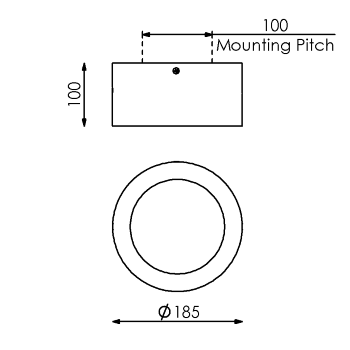

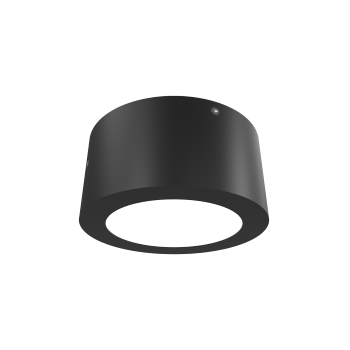

Product Configuration / Application Images
In case of additional questions - please ask below:
Our lighting designers and sales engineers are ready to support your project specifications.
Due to the constant renewal of our model range and improving technical characteristics the technical information can slightly differ from the latest version. To receive the most up-to-date technical information for project development please refer to your LT Company manager.
Technical Specifications
Technical Data
| Lumen maintenance | L70 @ 50K Hours |
| Photo biological Safety | RG0 |
| Electrical Insulation Class | Class 1 |
| IP Rating | IP20 |
| Driver Placement | Integral |
| Driver Type | Constant Current |
| Rated I/P Voltage | 220V - 240 VAC |
| Rated I/P Current | 0.07A @ 15W |
| THD | <10% |
| IK Rating | IK 02 |
| Operating ambient Temp | 0 to 35 Degree C |
| Input Voltage Range | 140V - 270V |
| MacAdam Value | 3 SDCM |
Features
- Pressure die cast aluminum housing for optimal thermal conductivity.
- Highly transmittance diffused diffuser for optimal light visibility.
- Corrosion resistance white powder coated finish using Nano Technology.
- High efficiency driver with necessary safety protections along with additional 6KV SPD.
Application Areas
Malls, Retail Shops, Offices, Lobbies, Corridors etc.
