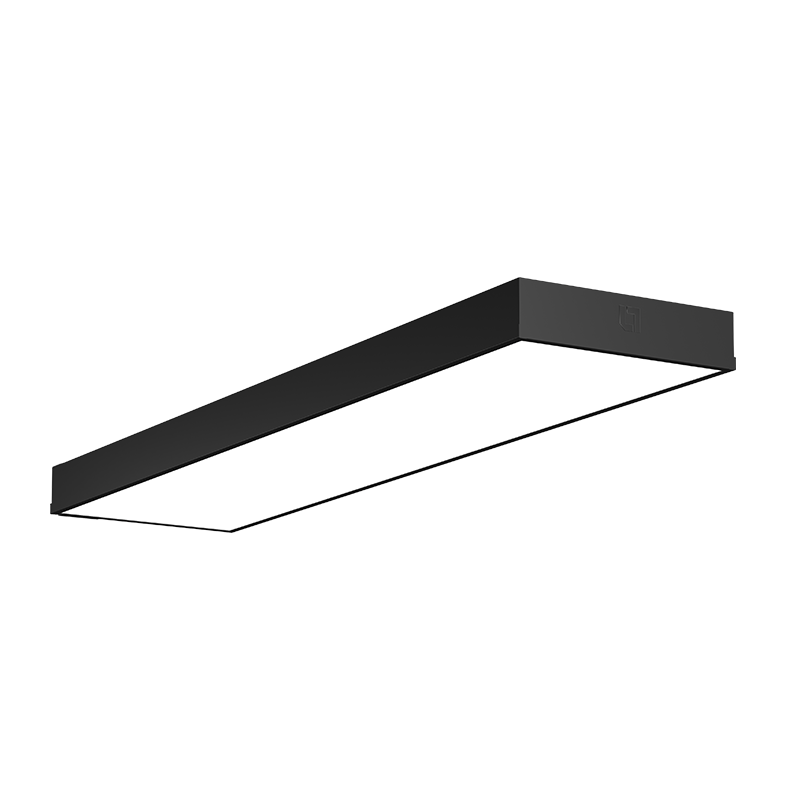

FULL LIT LINEAR 1X4
White Vibe Zone
High quality FULL-LIT LINEAR is a 1ftx4ft LED light ideal for work place which demands more lights are elegant in design and integrate seamlessly with your white ceilings which gracefully creating a calm, uniform& balanced light effect for maximum visual comfort.
Colors:
Wattage:
CCT:
Application Areas
Office: Office: conference rooms, open offices, lobbies, and other environments
Product Configuration / Application Images
In case of additional questions - please ask below:
Our lighting designers and sales engineers are ready to support your project specifications.
Due to the constant renewal of our model range and improving technical characteristics the technical information can slightly differ from the latest version. To receive the most up-to-date technical information for project development please refer to your LT Company manager.
Technical Specifications
Technical Data
| Lumen maintenance | L70 @ 50K Hours |
| Photo biological Safety | RG0 |
| Electrical Insulation Class | Class 1 |
| IP Rating | IP20 |
| Driver Placement | Non Integral |
| Driver Type | Constant Current |
| Rated I/P Voltage | 220V - 240 Vac |
| Rated I/P Current | 0.15A@36W |
| Surge Rating | 6KV with SPD |
| PF | >0.95 |
| THD | <10% |
| IK Rating | IK 02 |
| Operating ambient Temp | 0 to 35 Degree C |
| Input Voltage Range | 140V - 270V |
| MacAdam Value | 3 SDCM |
| Wattage | 30W - 40W |
Features
- Minimalist ultra-slim design with housing made of fabricated sheet metal.
- Highly transmittance diffused diffuser for optimal light visibility.
- Corrosion resistance white powder coated finish using Nano Technology.
- High efficiency driver with necessary safety protections along with 6KV SPD.
Application Areas
Office: conference rooms, open offices, lobbies, and other environments
