FULL LIT LINEAR 2X4
White Vibe Zone

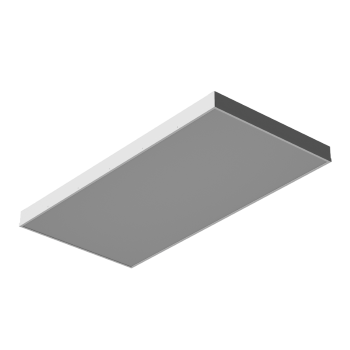

High-quality FULL-LIT LINEAR, a 2ftx4ft LED light, is ideal for workplaces demanding higher illumination, offering an elegant design that integrates seamlessly with white ceilings to deliver a calm, uniform, and balanced lighting effect for maximum visual comfort.
Colors:
Wattage:
CCT:
Application Areas
Office: Office: Office spaces, Lobbies and corridors
Product Configuration / Application Images
In case of additional questions - please ask below:
Our lighting designers and sales engineers are ready to support your project specifications.
Due to the constant renewal of our model range and improving technical characteristics the technical information can slightly differ from the latest version. To receive the most up-to-date technical information for project development please refer to your LT Company manager.
Technical Specifications
Technical Data
| Lumen maintenance | L70 @ 50K Hours |
| Photo biological Safety | RG0 |
| Electrical Insulation Class | Class 1 |
| IP Rating | IP20 |
| Driver Placement | Non Integral |
| Driver Type | Constant Current |
| Rated I/P Voltage | 220V - 240 Vac |
| Rated I/P Current | 0.20A@48W |
| Surge Rating | 6KV with SPD |
| PF | >0.95 |
| THD | <10% |
| IK Rating | IK 02 |
| Operating ambient Temp | 0 to 35 Degree C |
| Input Voltage Range | 140V - 270V |
| MacAdam Value | 3 SDCM |
| Wattage | 48W - 80W |
Features
- Minimalist ultra-slim design with housing made of fabricated sheet metal.
- Highly transmittance diffused diffuser for optimal light visibility.
- Corrosion resistance white powder coated finish using Nano Technology.
- High efficiency driver with necessary safety protections along with 6KV SPD.
Application Areas
Office: Office spaces, Lobbies and corridors
