FUSION D
Eternal Lighting

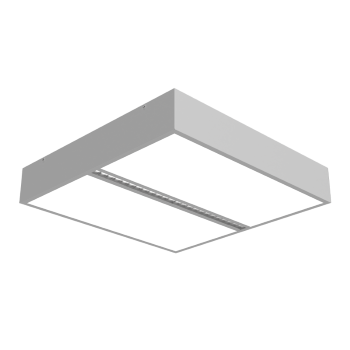

FUSION D is a low glare functional surface 2ftx2ft Panel LED light with Prismatic diffuser and Dark Precise optics in the center, ideal for the work place which demands high light quality.
Colors:
Wattage:
CCT:
Application Areas
Office: Office: conference rooms, open offices, lobbies, and other environments
Product Configuration / Application Images
In case of additional questions - please ask below:
Our lighting designers and sales engineers are ready to support your project specifications.
Due to the constant renewal of our model range and improving technical characteristics the technical information can slightly differ from the latest version. To receive the most up-to-date technical information for project development please refer to your LT Company manager.
Technical Specifications
Technical Data
| Lumen maintenance | L70 @ 50K Hours |
| Photo biological Safety | RG0 |
| Electrical Insulation Class | Class 1 |
| IP Rating | IP20 |
| Surge Rating | 6 KVA With SPD |
| Driver Placement | Integral |
| Driver Type | Constant Current |
| Rated I/P Voltage | 220V - 240 Vac |
| Rated I/P Current | 0.17A@36 |
| PF | >0.95 |
| THD | <10% |
| IK Rating | IK 02 |
| Operating ambient Temp | 0 to 35 Degree C |
| Input Voltage Range | 140V - 270V |
| MacAdam Value | 3 SDCM |
| Wattage | 36W - 40W |
Features
- Minimalist ultra-slim design with housing made of fabricated sheet metal.
- Central precise reflector with dark optics for effective light distribution.
- White powder coated finish using Nano Technology for higher durability.
- High efficiency driver with necessary safety protections along with 6KV SPD.
Application Areas
Office: conference rooms, open offices, lobbies, and other environments
