GEOMET CIRCLE DN

Sphere of Light

High quality CIRCLE DONUT LED pendant Lights are elegant in design and integrate seamlessly with your white ceilings which gracefully creating a calm, uniform& balanced light effect for maximum visual comfort.

Colors:

Wattage:

CCT:

Length:

Application Areas

Office: Office:Office spaces, Lobbies and corridors

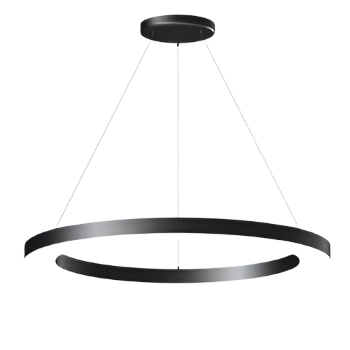

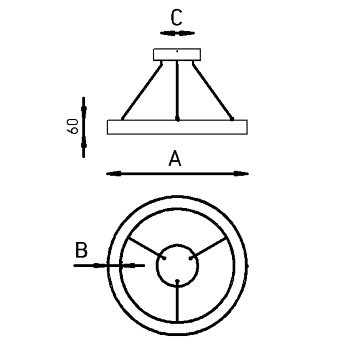

Product Configuration / Application Images

In case of additional questions - please ask below:

Our lighting designers and sales engineers are ready to support your project specifications.

Due to the constant renewal of our model range and improving technical characteristics the technical information can slightly differ from the latest version. To receive the most up-to-date technical information for project development please refer to your LT Company manager.

Technical Specifications

Technical Data

Lumen maintenance	L70 @ 50K Hours
Photo biological Safety	RG0
Electrical Insulation Class	Class 1
IP Rating	IP20
Driver Placement	Non Integral
Driver Type	Constant Current
Surge rating	6 KV SPD
Rated I/P Voltage	220V - 240 Vac
PF	>0.95
THD	<10%
IK Rating	IK 02
Operating Voltage range	140V - 270V
Wattage	24W, 36W, 45W, 60W

Features

- - Striking architectural pendant luminaire produced from round aluminum profile.
  - High transmittance diffused diffuser for optimal light visibility.
  - High efficiency driver with necessary safety protections along with additional 6KV surge protective device.
  - Corrosion resistance with special Powder coated finish using Nano Technology.
