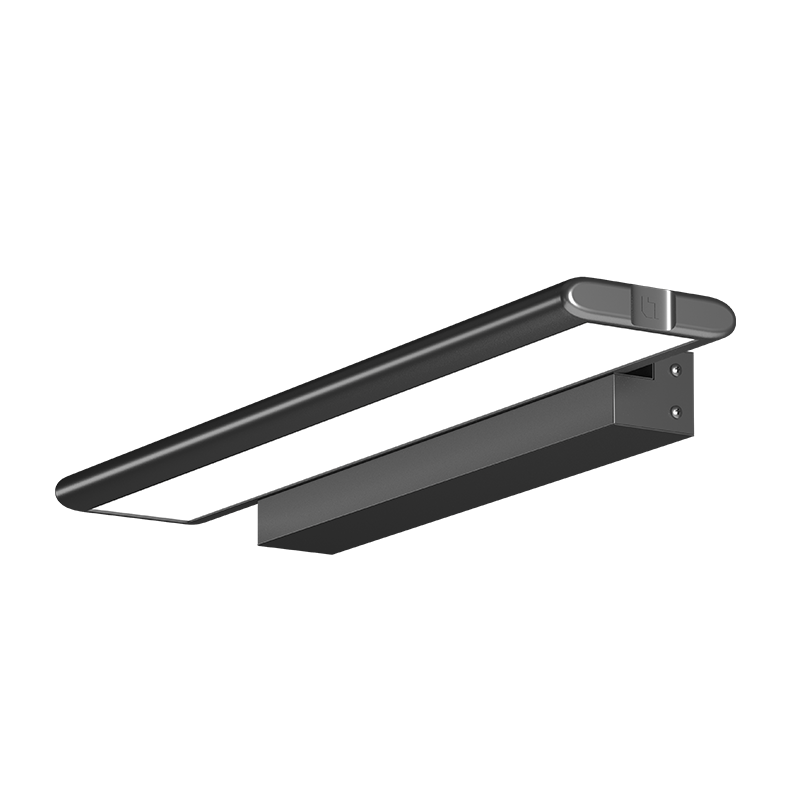

I LEAN BED LIGHT
BASE OF BRIGHTNESS
A highly evolved product that pushes the limits of performance, reliability and aesthetics while keeping material and energy at minimum driven by a deep-seated purpose provides more light with lesser resources, promising substantial energy savings without compromising on the quality of light.
Colors:
Wattage:
CCT:
Length:
Application Areas
Office: Office: conference rooms, open offices, lobbies, and other environments
Product Configuration / Application Images
In case of additional questions - please ask below:
Our lighting designers and sales engineers are ready to support your project specifications.
Due to the constant renewal of our model range and improving technical characteristics the technical information can slightly differ from the latest version. To receive the most up-to-date technical information for project development please refer to your LT Company manager.
Technical Specifications
Technical Data
| Lumen maintenance | L70 @ 50K Hours |
| Photo biological Safety | RG0 |
| Electrical Insulation Class | Class 1 |
| IP Rating | IP20 |
| Surge rating | 6KV with SPD |
| Driver Placement | Integral |
| Driver Type | Constant Current |
| Rated I/P Voltage | 220V - 240 VAC |
| Rated I/P Current | 0.11A @ 24W |
| PF | >0.95 |
| THD | <10% |
| IK Rating | IK 02 |
| Operating ambient Temp | 0 to 35 Degree C |
| Operating Voltage Range | 140V - 270V |
| MacAdam Value | 3 SDCM |
| Wattage | 12W - 20W |
Features
- Extruded aluminum housing for better thermal management.
- Uniquely designed PDC aluminum end cap.
- Highly transmittance diffused diffuser with up-down light distribution for optimal light transmission.
- Corrosion resistance with special powder coated finish using Nano Technology.
- High efficiency driver with necessary safety protections along with additional 6KV SPD.
- Switch Mode - Pull 1: Up Light Control
- Switch Mode - Pull 2: Down Light Control
- Switch Mode - Pull 3: Up-down Light Control
Application Areas
Office: conference rooms, open offices, lobbies, and other environments
