LUMINOX
LUMINOX

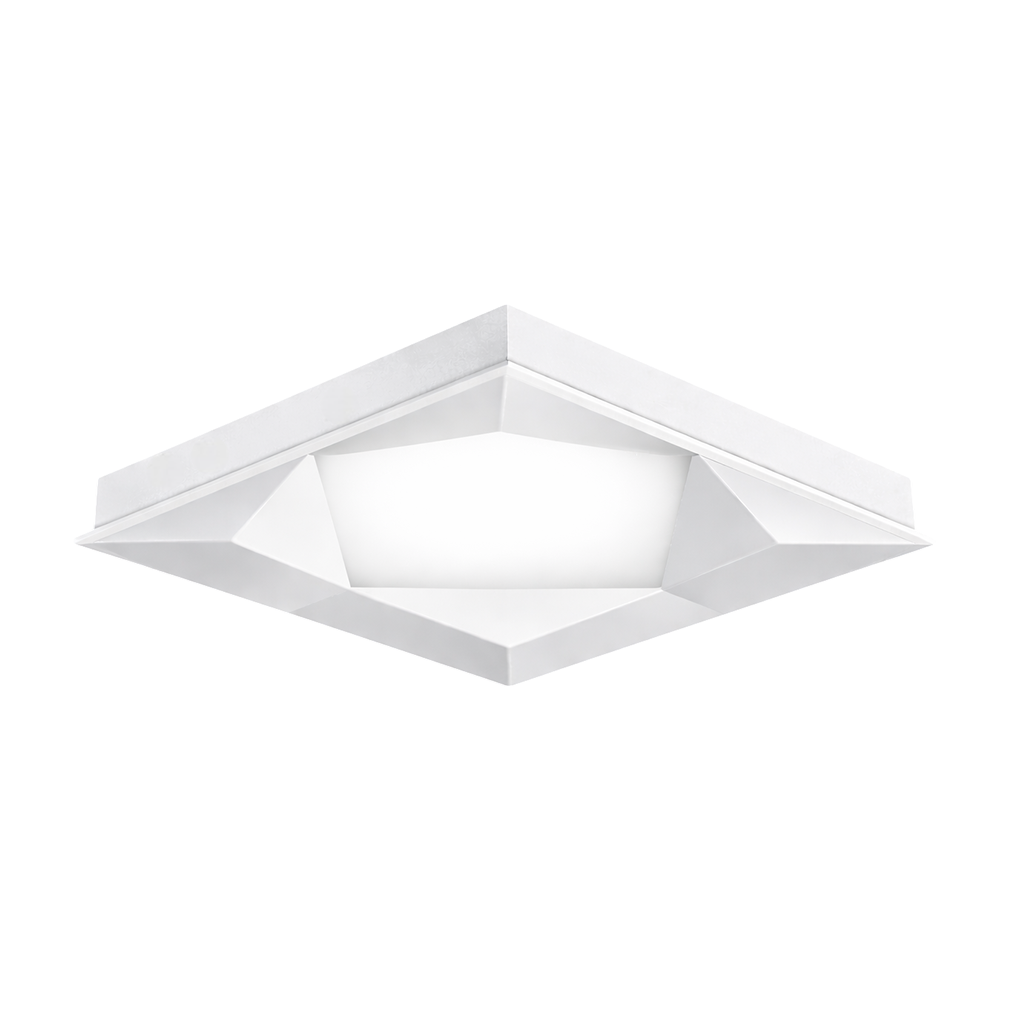

LUMINOX is a 2X2 recessed LED luminaire with a unique rimless construction and diamond dropdown diffuser for a very appealing Workstation illumination
Colors:
Wattage:
CCT:
Application Areas
Office: Office: Office spaces, lobbies and corridors
Product Configuration / Application Images
In case of additional questions - please ask below:
Our lighting designers and sales engineers are ready to support your project specifications.
Due to the constant renewal of our model range and improving technical characteristics the technical information can slightly differ from the latest version. To receive the most up-to-date technical information for project development please refer to your LT Company manager.
Technical Specifications
Technical Data
| Lumen maintenance | L70 @ 50K Hours |
| Photo biological Safety | RG0 |
| Electrical Insulation Class | Class 1 |
| IP Rating | IP20 |
| Driver Placement | Non Integral |
| Driver Type | Constant Current |
| Rated I/P Voltage | 220V - 240 VAC |
| Rated I/P Current | 0.10A @ 24W |
| PF | >0.95 |
| THD | <10% |
| IK Rating | IK 02 |
| Operating ambient Temp | 0 to 35 Degree C |
| MacAdam Value | 3 SDCM |
| Input Voltage Range | 140V - 270V |
Features
- Minimalist ultra-slim design with housing made of fabricated sheet metal.
- Specially formulated diffuser for optimal light visibility.
- Corrosion resistant white powder coated finish using Nano Technology.
- High efficiency driver with necessary safety protections along with 6KV SPD.
Application Areas
Office: Office spaces, lobbies and corridors
