MAGNETIC LED DARK OPTICS LINEAR
CLASSY FOR LIGHT

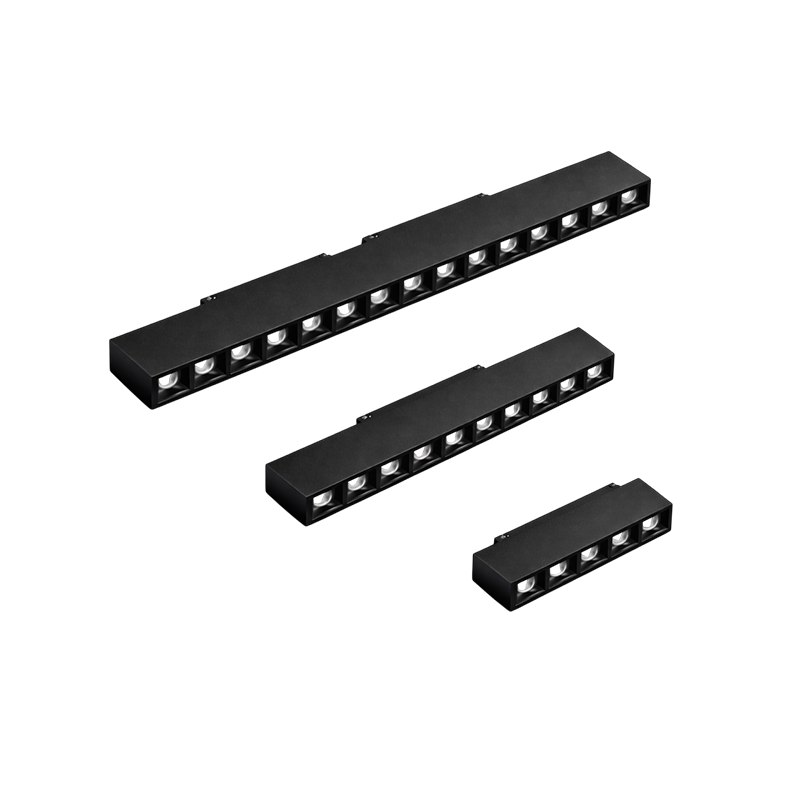

LED SPOT DARK OPTICS LINEAR LIGHT is an fixed track mounted luminaire with specially designed reflector for precise, homogeneous light distribution for efficient and high quality accent lighting in your retail space.
Colors:
Length:
Wattage:
CCT:
Application Areas
Office: Office:Office spaces, Lobbies and corridors
Product Configuration / Application Images
In case of additional questions - please ask below:
Our lighting designers and sales engineers are ready to support your project specifications.
Due to the constant renewal of our model range and improving technical characteristics the technical information can slightly differ from the latest version. To receive the most up-to-date technical information for project development please refer to your LT Company manager.
Technical Specifications
Technical Data
| Lumen maintenance | L70 @ 50K Hours |
| Photo biological Safety | RG0 |
| IP Rating | IP20 |
| Driver Placement | Non Integral |
| Rated I/P Voltage | 48 Vdc |
| Rated I/P Current | 0.62A @ 30W |
| IK Rating | IK 02 |
| Operating ambient Temp | 0 to 35 Degree C |

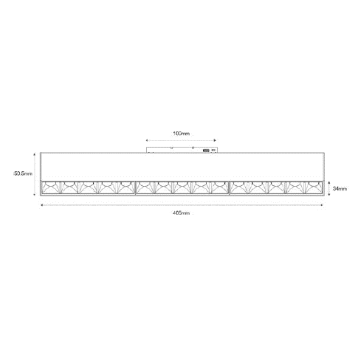

| Dimensions | 135*34*50.5 @ 10W / 265*34*50.5 @ 20W / 405*34*50.5 @ 30W |
| Wattage | 10W - 30W |
Features
- Aluminum housing for better thermal conductivity.
- High efficiency driver with necessary safety protections.
- A lens which can be manually focused.
Application Areas
Office:Office spaces, Lobbies and corridors
